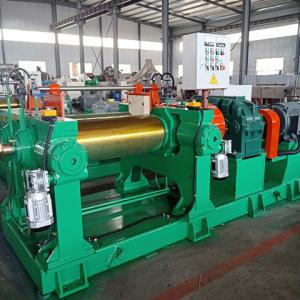

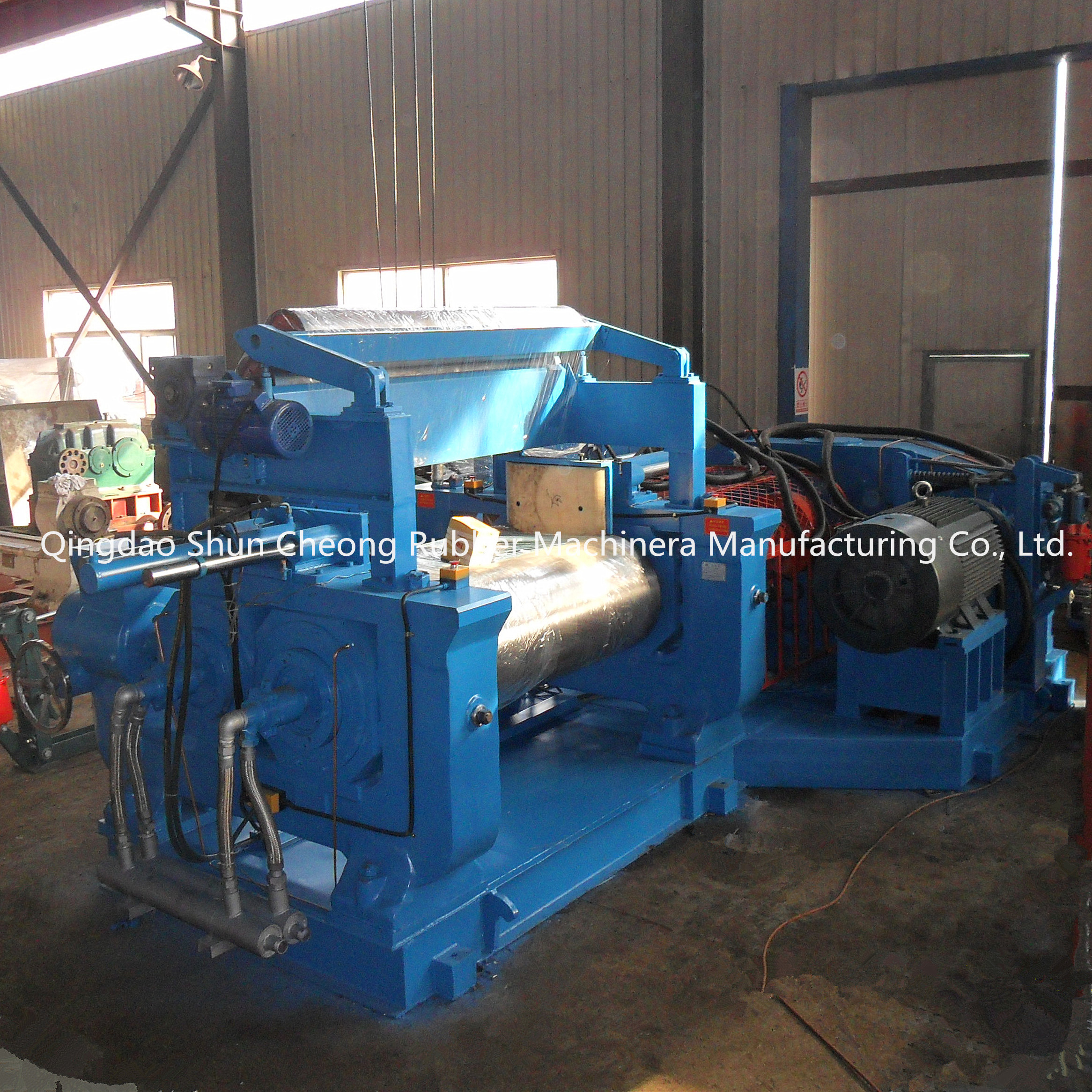

XK-450 Rubber Mixing Mill Machine / Rubber Mixing Mill / Two Roller
Rubber Mixing Mill Machine / Lab Mixing Mill
Product Introduction
1. We can design speed ratio as per customers' formula and
processing requirements.
2. Frame, frame cap and base are welded and treated by annealing
for stress relieving.
3. Rolls material is chilled cast alloy iron which hardness is
reach to 70HB.
4. Brake and emergency stop device can ensure the safety of
personnel and equipment.
Salient Features
1.Superior Mixing Performance.
2.Low Operating Cost with High Productivity.
3.Compact Construction,maximum Floor Utilization.
4.Latest Technology Update,Meets Current World Standards.
5.Maintenance Free.
6.Reliable and Experiences Service Back Up.
7.Easy to Install & Ready to Run.
8.No continuous Lubrication hence heavy saving on lubrication cost,
wear & tear and maintenance.
9.Auto reversing eletric Panel.
10.Simple & easy maintenance.
Features
1.Roller Material:Chilled Alloy Cast Iron
2.Roller Hardness:68-75 HRC
3.Gear Material Hardness:65-70 HRC
4.Cooling System:Water Cooling
5.Control Mode:Manual or automatic optional
6.Compact Structure,Low noise.
7.Different types of reducer available
| Model | XK-230 | XK-250 | XK-300 | XK-360 | XK-400 | XK-450 | XK-560 | XK-550B | XK-660 |
Working Diameter of rolls (mm)
| 230 | 250 | 300 | 360 | 400 | 450 | 560/510 | 550 | 660 |
| Working Length of Rolls (mm) | 600 | 620 | 750 | 900 | 1000 | 1200 | 1530 | 1500 | 2130 |
| Front Roll Surface Speed (m/min) | 10.21 | 14.1 | 15.1 | 16.25 | 18.65 | 24.26 | 27.72 | 27.94 | 28.6 |
| Friction Ratio | 1:1.19 | 1:1.17 | 1:1.25 | 1:1.25 | 1:1.27 | 1:1.2 | 1:1.22 | 1:1.24 | 1:1.09 |
| Max. nip (mm) | 7 | 8 | 10 | 10 | 10 | 15 | 15 | 15 | 15 |
| Capacity per Batch(kg) | 6-10 | 8-15 | 15-20 | 20-25 | 18-35 | 25-50 | 35-50 | 50-60 | 165 |
| Motor Power (kw) | 15 | 18.5 | 22 | 30 | 37 | 55 | 90 | 110 | 245 |
| Dimensions (mm) | L | 2800 | 3400 | 3400 | 3780 | 4350 | 5200 | 5845 | 5870 | 7465 |
| W | 1200 | 1500 | 1500 | 1850 | 1850 | 2380 | 2284 | 2475 | 3662 |
| H | 1120 | 1500 | 1550 | 1750 | 1785 | 1840 | 1978 | 2045 | 2080 |
Packing and Shipping
Equipment painting completed before delivery, and then wrapped with
stretch film, avoid rubbing the paint off the surface, wooden
packaging can be customized, key parts, such as electronic control
box, will be wrapped by shockproof packaging materials, and then
packed in wooden cases.
About Us
Qingdao shun cheong rubber machinery manufacturing co.,ltd is a
chinese manufacturer with establishment in 2007, and have 10 years
experience in making various of rubber machines area, also pass the
ISO 9001:2008 , SGS, CE certificates too.
our factory major in rubber kneader/rubber mixing mill ; various of
plate vulcanizing press ; 2 roll/3 roll/4 roll rubber calender;
rubber batch off cooler; waste tire recycling line;reclaimed rubber
production line;conveyor belt production line;rubber seals
extruding &vulcanizing line etc...
Market: our machineries have exported to America, Mexico, ndia,
Vietnam, South Africa, Singapore, Malaysia, Indonisia, Australia,
Sri Lanka and many other countries and regions.
Our Service
♦ Our engineers can design target machines for customers and send
them the drawing to confirm. We are always on the side of saving
your cost.
♦ In the process of production, we will take photos and send to
customers for their track the progress.
♦ Documents such as packing list, commercial invoice, and bill of
lading etc. will be sent after the delivery.
♦ We could supply free English foundation DWG, installation
drawing, user guide, maintenance manual and part drawing.
FAQ
1. What does your factory do regarding quality control?
We pay much more importance to quality control from the very
beginning to the end of production. Every machine will be fully
assembled and carefully tested before shipment.
2. What's the machine quality guarantee?
Quality guarantee time is one year.We choose world famous brand
components to keep our machine in perfect working condition.
3. Are you able to give installation and commissioning overseas?How
long time will it take?
Yes, we can supply overseas service and technical support but
customer needs to pay for the cost of the installation. Small
machine usually takes within 2~3 days. Big production line usually
takes about 30 days.
4. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed
and confirmed in the order. The core of our company culture is
innovation,quality,integrity and efficiency. Also we have had many
good cooperation with world famous rubber production manufacturers.
If you come to our factory, we can show the user around us.
5. How can we go to your side?
We are located in Qingdao City, Shandong province, China. The name
of airport is Qingdao Jiaodong airport. We will pick up you at the
airport.
