Denyo 500A 800A DC Arc Mig diesel welder generator welding machine
400 amp

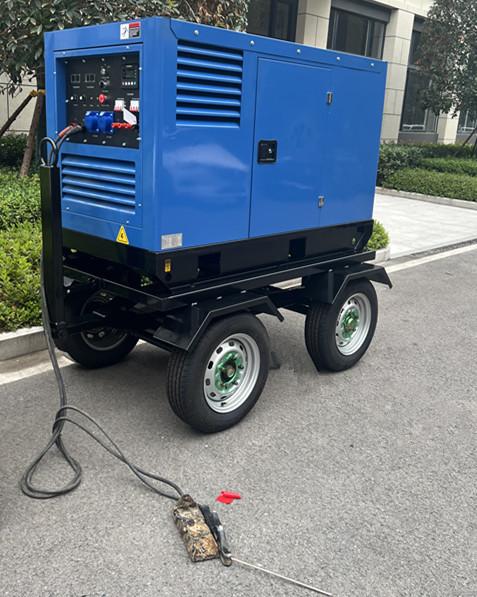

The 400Amp diesel welding generator is equipped with industrial
heavy duty diesel engine driven welding machines with Strong
auxiliary generator and mobile trailer .
The diesel weldIing plant adopt advanced inverter soft switch
technology, PWM control technology, and negative feedback control
technology , enjoys excellent dynamic quality and welding
performance within full voltage/current regulation range.
| Welding Current Range (A) | 20A - 400A |
| Rated welding current | 400A |
| Operating voltage | > 36V |
No–load voltage | 70V - 90V |
| Generator output |
| Excitation Type | AVR Brushless Excitation |
| Frequency | 50Hz |
| Phase | Three Phase | Single Phase |
| Output Voltage/Power | AC 380V/15Kw | AC 220V/5Kw |
| Engine |
| Engine type | 4 stroke , 4cylinder , direct injection , heavy duty diesel engine |
| Fuel | Diesel |
Technical specifications:
Rated welding current, (at Pn-60%), not more than – 400 A;
Rated operating voltage, not less than – 36V;
Welding current regulation limits, not less than – 60A, not more
than – 400A;
No–load voltage, not less than – 70V, not more than - 90V;
Fuel tank capacity, not less than – 60L, not more than – 120L;
Pump efficiency, not less than - 70%;
Auxiliary power generator:
Power, not more than - 4 kW;
Rated voltage, (at 50 Hz), no more than – 230V;
Engine:
Engine type- diesel;
Engine power, not less than - 30/40 kW/hp;
Rotation speed, not more than - 1800 rpm;
Engine cooling - liquid/air;
Climatic version - N1;
The trailer-chassis is designed for operation by vehicles having a
traction device according to GOST 2349, electrical outlets
according to GOST 9200, devices for attaching the safety chains of
the trailer, as well as an additional rear and front stop to
maintain in a horizontal position.
Additional equipment:
- Ballast rheostat;
- Welding cables, an electrode holder, a welder's shield, a
"Vector" type cutter length 510 mm are designed for manual cutting
of steels with a thickness from 3 to 300 mm, a gas and oxygen
reducer;
- propane and oxygen hoses of 20 m each;
- Complete set of an extended set of tools for maintenance;
- Additional tool box;
- Preheating system for starting the welding unit at ambient
temperature below, C0– 25;
- Shelters of the welding site from environmental influences;
- Power tools for machining edges of welded elements and welded
joints;
- Light alarm;
- Automatic emergency protection system;
- Built-in auxiliary generator, - 220/380 V, to VA - 4-7, AC (for
powering power tools and consumers with an active load -
incandescent lamps, heaters, soldering irons);
- A lamp for carrying out work at night;
- Tire pumping device;
- Electric fuel level indicator;
- Hour counter;
- Cables for remote start from an outside source;
- Device for drying electrodes;
- Anti-rollback stops, -2 pcs;
- Socket ONC- VN-1-7/30- P1;
-Spare wheel;
