Display Control Board JLD-P03 Embedded Android Board For Self
Ordering Payment Kiosk
Description of Display Control Board JLD-P03
The JLD-P03 is equipped with a high-performance processor that can
quickly respond to touch operation instructions, ensuring a smooth
and unobstructed ordering and payment process. Whether it's
customers quickly browsing menus, adding dishes, or performing
complex payment operations, this motherboard can instantly process
data, avoiding lag and greatly saving customers waiting time. For
example, during peak dining hours in busy restaurants, many
customers use self-service ordering payment terminals
simultaneously, and JLD-P03 can easily cope and maintain efficient
system operation.
| CPU | RK3568 quad-core 2.0GHZ | GPU | Mali-G52 |
| NPU | IT TOPS | OS | Android 11/Linux/Ubuntu/Debian |
| Memory | DDR4 2GB/4GB/8GB | EMMC | 16GB/32GB/64GB/128GB |
| Touch Screen | I2C interface/USB | Display Interface | LVDS,EDP,MIPI |
| Serial port | 5 in total, optional types, TTL (1-5 pcs), RS232 (0-4 pcs | Cash drawer interface | RJ11 6P6C |
| Highlight | POS motherboard Android Motherboard RK3568 Motherboard Pos System
Motherboard |
Applications of Display Control Board JLD-P03
Catering industry: JLD-P03 motherboard has been widely used in
restaurants, fast food restaurants, coffee shops and other catering
venues. Customers can easily complete the ordering and payment
process through self-service ordering payment terminals, improving
dining efficiency. At the same time, merchants can use this
motherboard to achieve functions such as dish management and
inventory management, improving the level of restaurant operation
and management.
Retail industry: In retail stores such as supermarkets, convenience
stores, and specialty stores, customers can use self-service
devices equipped with JLD-P03 motherboards for product inquiries
and self checkout. This not only reduces customer waiting time in
line, but also lowers the labor costs for merchants, improving the
operational efficiency and customer experience of the store.
Entertainment venues: cinemas, amusement parks, KTVs, and other
entertainment venues can also use this motherboard. For example, in
cinemas, customers can purchase movie tickets, choose seats, and
pay fees through self-service terminals; At the amusement park,
visitors can use self-service devices to purchase tickets, recharge
amusement cards, etc., providing customers with more convenient
services.

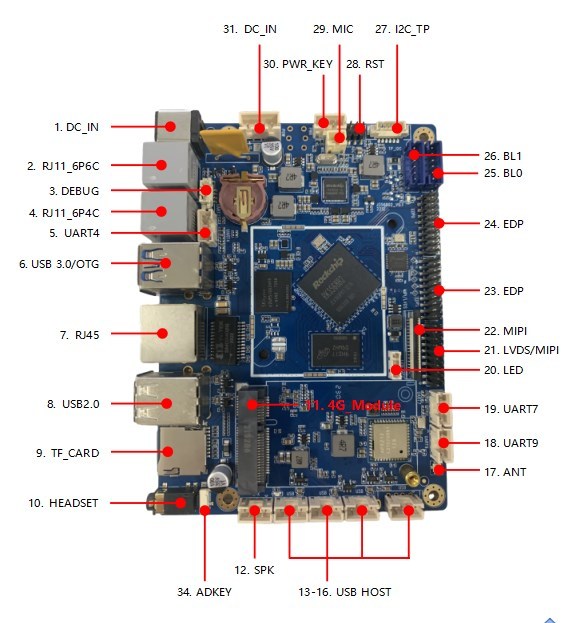

Product Interface Photos of Display Control Board JLD-P03
Main Parameters of Display Control Board JLD-P03
CPU | RK3568 Quad-core 64-bit Cortex-A55 processor, maximum frequency
2.0GHz |
| GPU | ARM G52 2EE support OpenGL ES 1.1/2.0/3.2,OpenCL 2.0,Vulkan 1.1 |
| NPU | 1TOPS |
Memory | 2G/4G/8G DDR4 optional |
EMMC | 16G-128G optional |
Display | Support LVDS,EDP,MIPI |
Audio Output | Stereo, support Dolby sound effect |
Audio port | 3.5mm headphone jack, 2P2.0 microphone interface, 4P2.0 speaker
interface |
Ethernet | 10/100/1000M |
Wi-Fi | 2.4G/5G WiFi BT |
OS | Android 11/ Ubuntu 20.04/Debian 10 |
| TP | I2C /USB interface TP |
Memory card type | TF-CARD |
USB Interface | Built-in USB 2.0 sockets (4 pcs), external USB 3.0 (1 pce) 2.0 (2 pcs) |
Serial port | 5 in total, optional types, TTL (1-5 pcs), RS232 (0-4 pcs) |
RTC | Support power-off clock memory, automatic power on and off |
Camera | USB camera |
PCB Size | 125mm*90mm*1.6mm |
Power supply | DC12V3A input |
| Temperature | -20°- 80℃ |
Packing
1. At Buyer's Request;
2. Inner, vacuum package;
3.Outer, standard export carton;
FAQ
Q1. Can I have a sample order for PCBA motherboard? A: Yes, we
welcome sample order to test and check quality with your equipment.
Customized development PCBA are available well.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for
order quantity more than
Q3. Do you have any MOQ limit for trial order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5
days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for PCBA motherboard?
A: Firstly let us know your requirements or application.Secondly We
quote according to your requirements or our suggestions.Thirdly
customer confirms the samples and places deposit for formal
order.Fourthly We arrange the production.
Q6. Is it OK to print my logo on PCBA motherboard product?
A: Yes. Please inform us formally before our production and confirm
the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1-3 years warranty to our products.
