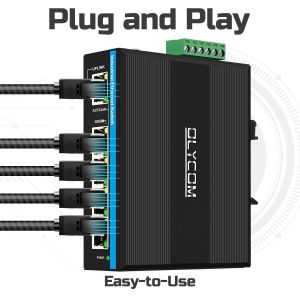

5 Port Gigabit Switch E-Mard Certified Industrial Ethernet Switch

5 Port Gigabit Switch E-Mard Certified Industrial Ethernet Switch

Key Features of industrial ethernet switch

• 4 x 10/100/1000Mbps Auto-sensing RJ45 ports
• 1 x 10/100/1000Mbps uplink network port
• 6 KV Ethernet surge protection, adapt to a harsh outdoor environment
• Support Auto MDI/MDIX
• Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
• IEEE 802.3 10Base-T and IEEE 802.3u 1000Base-TX compliant
• A store-and-forward switching mechanism
• Operating environment temperature:-40 ° ~75 ° c

Specificaiton of Gigiabit Network Switch

Packing box of Din rail unmanaged switch

• Put the product in an ESD Bag, then placed in PE foams with outer carton packaging.
• The standard packing usually contains a main device, a removable terminal block and a user manual.
• Packing box dimension for 1pc: 25.3*20.8*8cm
• 40pcs in a packing box of 55.5*40*41cm dimension.

Application

Standard features of an E-mark Network Switch

• Robust design: built for harsh industrial environments and featured a sturdy enclosure to be high vibration and shock resistant.
• Wide operating temperature range: Able to operate in extreme temperatures, typically from -40°C to 75°C.
• Dual and wide power input: Typically support 12VDC or 24VDC to match vehicle power systems, the redundancy of power supply offers increased reliability.
• High protection level: this covers isolation between network ports to protect against ground loop issues and electrical surges. Meanwhile a high IP rating (like IP40) to protect against dust and water ingress.
• DIN-rail mounting: Designed to be easily mounted on a DIN rail within a vehicle.
• Port auto-sensing: Automatic detection of network speeds for compatibility with different devices.
• Diagnostic features: LEDs or other visual indicators to monitor network status, this also helps fast trouble-shooting when something unexpected occurs.
