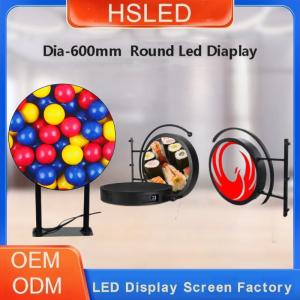

P4.28 DoubleSided Waterproof Outdoor Round Sign Board Digital
Screen Circle Shape Logo Led Display
Led Circle Screen Outdoor Led Round Shape Led Display Screen logo
Advertising Signage
Features for Round LED Display:
1. High Bright & Waterproof
Circle led sign could reach 5500nits high brightness.
Clear crystal image even under direct sunlight. It's also IP65
waterproof protection for our led logo sign.
2. Fast Installation
HSLED circle led sign is fast installation with mounting bracket.
Our team also provides installation manual for led logo sign.
3. Dual-Side Design & Round Shape
The diameter of HSLED circle led sign is 60cm; and thickness is
10cm for our led logo sign.
4. Easy Control
Plug & Play Solution for cirlce led sign LED logo sign
LED logo sign is also WiFi control with easy software
Round LED Display Specification:
Shenzhen H&S Innovation Technology Co., Ltd
http://www.fullcolourleddisplay.com |
| Pitch(Model):Outdoor LED Circle Display |
| Display Size: P4.28 dia-600mm |
| Cabinet appearance |
 |
| Pixel point parameter: |
| 1 | LED | SMD1921 |
| 2 | Pixel Pitch | 4.28mm |
| 3 | Pixel composition | 1R1G1B |
| Module technical parameters: |
| 1 | Module resolution (W * H) | 70*70dot |
| 2 | Module size (W * H) | 300mm*300mm |
| Screen body technical parameters: |
| 1 | Full screen size | 640mm*640mm*120mm |
| 2 | dot density | 54289dot/m² |
| 3 | screen resolution | One side 140*140 points,Double-sided 280*140 points |
| 4 | Brightness (white field color temperature 6500K) | 5500cd/m² |
| 5 | Horizontal view/vertical view | 140°/140° |
| 6 | Best visual distance (m) | 4-100m |
| 7 | flatness | ≥99% |
| 8 | Chroma uniformity | ±0.003 Cx,Cy |
| 9 | service life | >100,000 Hours Theoretical value |
| 10 | way to install | Side hanging, Mosaic, wall hanging, lifting |
| 11 | Protection Class | IP65 |
| 12 | weight | Single side ≈12KG double side ≈16KG |
| System control parameter: |
| 1 | Signal color processing bits | Red, green, and blue ≥14bit |
| 2 | type of drive | Constant current drive 1/14 scan |
| 3 | repetition frequency | 60 frames per second |
| 4 | refresh rate | ≥3840HZ/S |
| 5 | maximum power | Single side 200W/ set, double side 400W/ set |
| 6 | average power | Single side 67W/ set, double side 134W/ set |
| 7 | Operating Temperature Range | -40°C~+60°C |
| 8 | Screen color temperature | 2000K-9500K is adjustable |
| 9 | brilliance control | Manual/automatic/program control |
| 10 | control mode:Asynchronous control/mobile APP, WIFI, U disk, cloud platform |
Circle Led Display Details:
1,Sheet metal box body
UItra thin sheet metal box, modular design, power supply, control
card,etc. are all installed inside the box,and customers can plug
in and use it immediately.
2,Strong magnet
The fan-shaped module is equipped with a powerful magnet on the
back,making it easy to in-stall and maintain.
3,High quality LED beads
High quality LED beads, uniform color,module surface sealing
treat-ment, waterproof and dustproof.
4,size customization
It can be customized according to different size requirements.
5,IP 65 WATERPROOF
IP65 provides ful protection against dust ingress and water jets
from any angle,enabling devices to operate reliably in harsh,
wet,or dusty environments while maintaining durability.
Company Information:
Shenzhen H&S Innovation Technology Co., Ltd specializes in the
manufacturing and supply of a diverse range of LED display screens
that cater to various indoor and outdoor needs. Our products
including Round Led Display,LED PosterDisplay /LED Mirror Screens
,Pole LED Screen,Outdoor 3D LED Display Screen, Indoor LED Display
, LED Circular Screen, Creative LED Display Screens, LED Soft
Screens, and LED Ball Screens.
Outdoor 3D LED Display Screen:
These screens are designed to provide an immersive and engaging
visual experience outdoors. With their advanced 3D technology, they
can display stunning graphics, videos, and animations that capture
the attention of passersby. They are perfect for advertising,
events, and entertainment venues.
LED Poster Display /LED Mirror Screen:
These screens combine the functionality of a traditional poster
with the dynamic capabilities of an LED display. The LED poster
screens can display digital posters, animations, and videos, while
the LED mirror screens offer a reflective surface when turned off
and can display content when turned on. They are ideal for retail
stores, restaurants, and other commercial spaces.
LED Pole Screen:
The LED pole screens are designed to be mounted on poles or
columns, making them perfect for displaying information or
advertising in high-traffic areas. They can be used in streets,
malls, and other public spaces to provide real-time updates,
promotions, and announcements.
LED Circular Screens:
The LED circular screens are unique and eye-catching, making them
perfect for creating a focal point in any space. They can be used
for branding, advertising, and displaying information in a circular
format.
Round Led Diaplay:
Our creative LED display screens offer endless possibilities for
customization and creativity. They can be designed to fit any
shape, size, and specification, making them perfect for unique and
eye-catching displays. Whether you need a custom-shaped screen for
a specific event or a unique design for your brand, we can help you
bring your vision to life.
