    Double Spindle Mill Drill Machine TD60 High Precision Increased Output

    Ask Lasest Price
    Price : negotiable
    Brand Name : H.SON
    Payment Terms : Western Union, MoneyGram, T/T
    • Product Details
    • Company Profile

    Double Spindle Mill Drill Machine TD60 High Precision Increased Output

    Double-Spindle Milling & Drilling Machine TD60, High Precision Increased Output


    Specifications andTechnicalParameters
    ltemunitTD60
    Processing dia rangemm∅10~∅60
    Processing lenght rangemm150~450
    Milling depth MAXmm3
    Center drill dia rangemmA2~B10

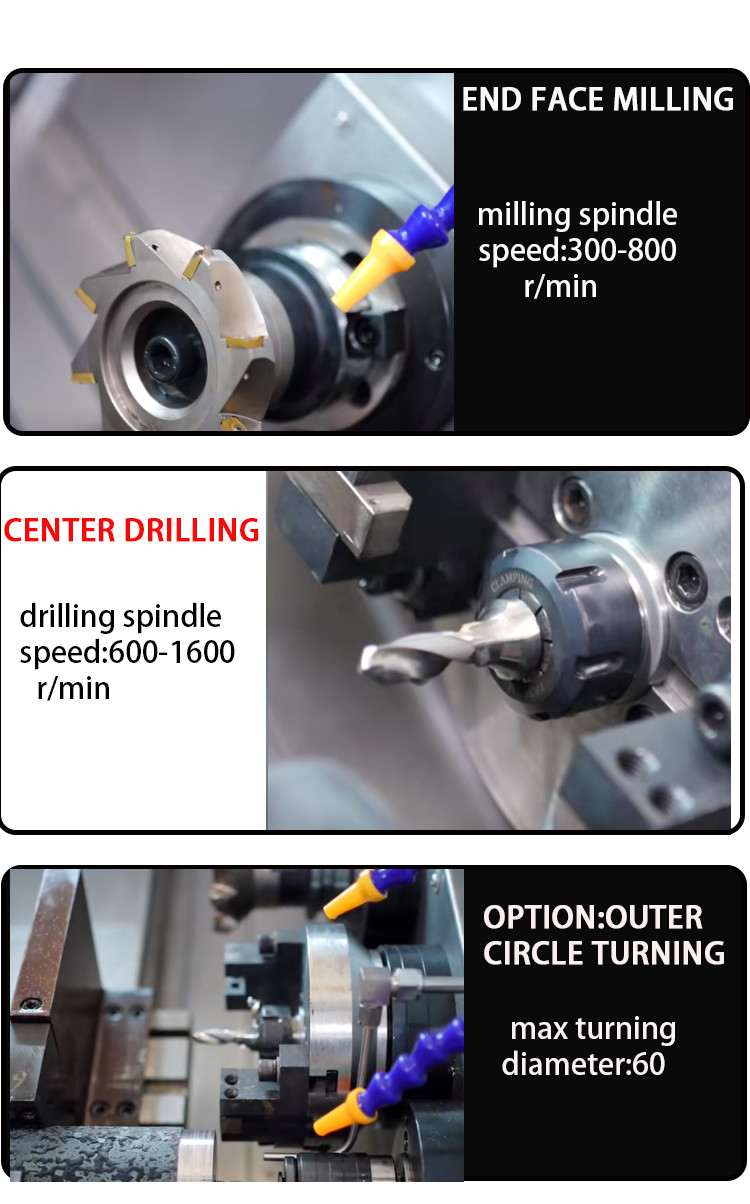

    Milling spinde speedr/min300~800
    Drilling spinde speedr/min600~1600
    Power of the main motorKW3
    Overall dimensions(LxWxH)mm2.2x1.3x1.6
    Machine weightKg3100
    Working Accuracy
    Milling length consistencymm0.05
    Center hole depth consistencymm≤0.03
    Face runout of the Center holemm≤0.03
    Center hole surface roughnessRa1.6
    Optional function parameters
    Turning dia MAXmm∅60
    Effective length of the packagemm20~30
