    Stringing Equipment Hydraulic Wire Puller Overhead Line Stringing Tools

    Ask Lasest Price
    Brand Name : HANYU
    Model Number : TY90
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10sets/month.
    Delivery Time : 15-35days
    • Product Details
    • Company Profile

    Stringing Equipment Hydraulic Wire Puller Overhead Line Stringing Tools

    Overhead Line Stringing Tools Stringing Equipment Hydraulic Puller

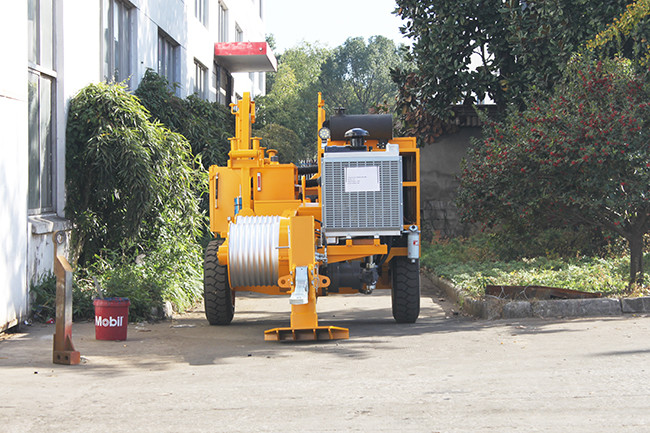

    TY90 Hydraulic Puller

    • This machine allows for the tension stringing of twin-bundle conductor of 500mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 630mm2 and below in flat lands, and of single conductor 720mm2 in various terrains;
    • besides, it can be used for traction stringing of OPGW or ADSS optical cable and 220kV haulage rope in various terrains.

    Characteristics

    • Bull-wheel diameter: 540mm
    • Groove number: 8
    • Max rope diameter: 21mm
    • Max diameter of rope reel: 1400mm
    • Total weight: 4680kg
    • Overall dimension (length*width*height): 4000×2200×2100mm

    Performance

    • Max intermittent pull: 90kN
    • Max continuous pull: 80kN
    • Speed at max pull: 2.5km/h
    • Max speed: 5km/h
    • Pull at max speed: 40kN

    Engine

    • Diesel: 118kw(158hp)
    • Cooling system: water
    • Electrical system: 24V

    Main configuration

    • Engine: Cummins
    • Hydraulic pump: German Rexroth
    • Main motor: German Rexroth
    • Speed reducer: German Rexroth / Italy Bonfiglioli
    • Tail bracket hoisting motor: American Eton
    • Hydraulic meter: German WIKA
    • Operating handle: German Rexroth

    Configuration

    • Hydraulic dynamometer with set-point and automatic control of maximum pull
    • Hydraulic oil cooling system
    • Control instruments for hydraulic system and diesel engine
    • On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1400
    • Hydraulic front stabilizer
    • Grounding connection point

    Additional Devices

    • Lighting system for the trailer
    • Hydraulic rope clamp for reel change
    • Swivel guide rope roller
    • Trailer for towing at max speed of 15 km/h
    • Extra shaft
    • Digital speed and meter counter (extra charge)

    Hydraulic Transmission

    • Closed hydraulic circuit for step less speed variation in both rotating directions.
    • This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.
