    Adjustable Crane Load Deck Platform The Ultimate Solution For Efficiency

    Ask Lasest Price
    Payment Terms : T/T, LC
    Supply Ability : 100000Ton/ Month
    Delivery Time : 30 days
    Brand Name : TOBRO
    Certification : ISO 9001, CE
    Price : Negotiable
    • Product Details
    • Company Profile

    Adjustable Crane Load Deck Platform The Ultimate Solution For Efficiency

    Products Description
    Product name
    Sand Blasting Crane Loading Deck
    The Crane Loading Deck is specially designed for coping with the challenges of multi-story construction sites. Our crane loading
    decks make access for tools and materials to different levels of multi-story construction sites safe and simple, while increase
    the working efficiency of tower cranes.
    Features
    Crane Loading Deck Features
    1. Easy pull/push system
    2. Max. outboard length:5.3m
    3. Max. load capacity:5ton
    4. Platform width: from 2.2m to 4.2m
    5. With adjustable props for different floor heights
    6. Compact design makes the transportation & installation much easier
    7. With easy locking system
    8. All pins are with chains

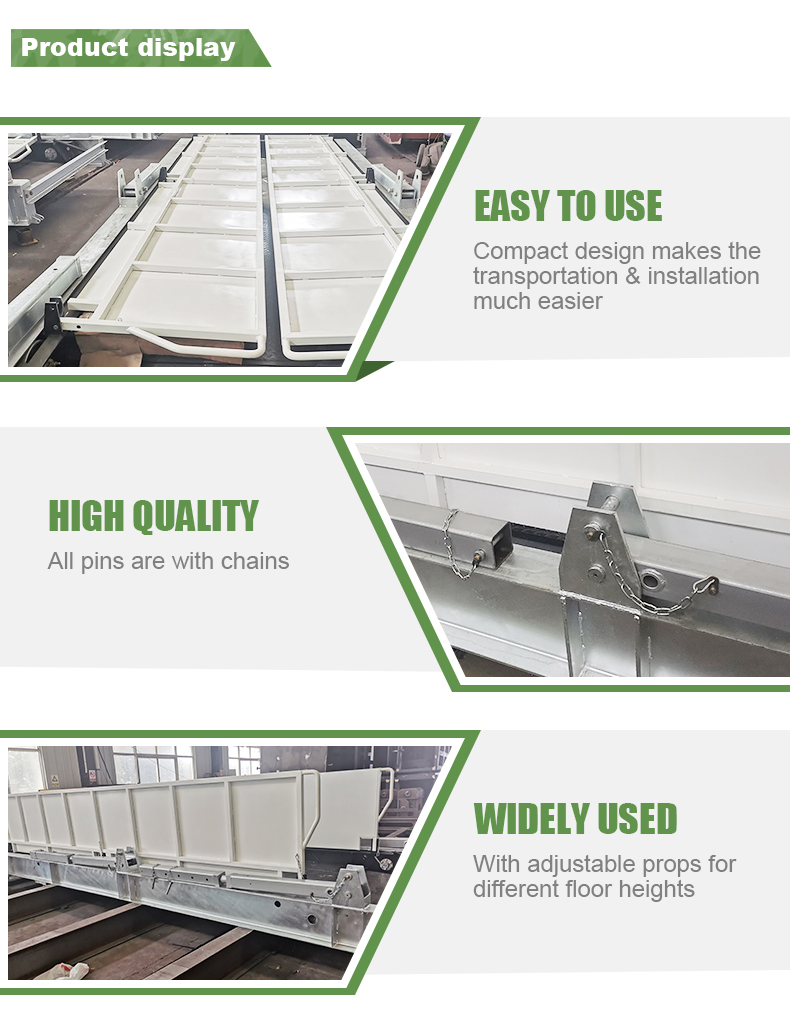

    PRODUCT DISPLAY

    Specification of Retractable Unloading Platform

    SpecificationMLP2200MLP2600MLP3200
    Width W (mm)220026003200
    Length L1-L2 (mm)
    - Minimum Length565056505650
    - Maximum Length940094009400
    Height of prop H2 (mm)
    - Minimum Height260026002600
    - Maximum Height340034003400
    Side panel height H1 (mm)120012001200
    Extend length of movable deck L2 (mm)375037503750
    Overhang length of stationary frame L5 (mm)145014501450
    Tare Weight (KG)230028003350
    Max Loading Weight (KG)500050005000

    Product Features

    ① Safe and reliable:
    Distinctively designed, delicate production, and quality tested.

    Product serialization:
    There are three sizes available for the Retractable Unloading Platform, with different load capacities, width sizes, and floor heights to meet the needs of various users.


    ③ Good compatibility:
    It can be applied to almost all types of buildings and will not hinder the completion of the building exterior.
    Suitable for floors of different heights — the height of the supporting columns can be adjusted.
    If the ceiling is high, support columns over 4 meters can be provided, or full body bolts can be used to anchor the platform directly to the floor (without the need for support columns).


    ④ Quick and convenient installation and disassembly:
    Upon arrival at the construction site, the load deck can be installed and used immediately.
    Installation can be completed by one crane driver and one worker.
    Transfer to another floor or removal from the site can be done within 10 minutes.


    ⑤ Humanized design:
    Extremely low maintenance costs.
    The platform can be extended and retracted by only one person, without the need for power or control equipment.


    ⑥ Long service life:
    Adopts hot-dip galvanizing and high-quality paint for corrosion prevention.

    20/30/40 Yard Roll Off Dumpster Corrosion-Proof Steel Design Ideal for Roofing, Landscaping & Municipal Projects 10
    Q: How can I get samples?
    A:Of course you can get sample for testing before bulk order, but samples are not free.
    Q: What"s the delivery time?
    A: Usually, samples can be sent to you in15 work days after your payment. OEM orders 25-30days.
    Q: Do you accept OEM order or personal tailor?
    A: Yes,we are professional manufacturer for all kinds of steel bins ,we have professional designer for your needs.
    Q:Can you list the product of your company?
    A: Our Products line:Steel Bins( containers).
    Series 1: For the waste recycling/management : skip bins/Roll of dumpster/ hook lift bins /tipper bins ect.
    Series 2: For the shipping and storage: foldable platform/transfer bin,shipping containers ect.
    Series 3: OEM Equipment:(house container/ a special purposecontainer)
    Q:Warranty time?
    A:1year.
