1040*700mm TH48-30 Stack Sizer Polyurethane Screen Panels
Hydrophobic Mineral Screening Mesh
Optimized for wet processing, this polyurethane mesh delivers 3-8x
lifespan over conventional screens in abrasive slurry separation.
Featuring 0.045-8.0mm apertures, it excels in silica sand, iron
ore, and limestone processing with minimal maintenance.
Key Attributes
Material: Reinforced polyurethane
Color: Amber
Efficiency: High-flow particle sorting
Durability: Hydrodynamic wear resistance
Ideal for continuous mineral recovery operations requiring
precision and reduced downtime.
Technical Specifications:
Product Name: 1040*700mm TH48-30 Stack Sizer Polyurethane Screen
Panels
Material :Polyurethane
Color: Orange and Red
Aperature Size Range: 0.045mm-8.0mm
Wear Resistance: 3-8 Times Longer Life Span
Screening Efficiency: High
Application: Industrial Minerals
HUATAO guarantees rapid customization and delivery within 10-15
working days. Our screen mesh undergoes rigorous ISO-certified
quality testing to ensure consistency and durability, backed by
24/7 technical support.
1) Product Description of 1040*700mm TH48-30 Stack Sizer Polyurethane Screen Panels
The Durable 1040*700mm TH48-30 Stack Sizer Polyurethane Screen
Panels for Mining are designed to withstand the rigorous demands
of mining operations. Made from high-quality polyurethane, these
screens offer exceptional durability and wear resistance. They are
ideal for separating and sizing minerals, aggregates, and other
materials in mining and quarry applications.
2) Specification of of 1040*700mm TH48-30 Stack Sizer Polyurethane
Screen Panels:
| Specification | Value |
| Material | Polyurethane |
| Aperature Size | 0.045-8.0mm |
| Dimension Size | 1040*700mm as regular or OEM |
| Color | Red or Orange |
| Durability | High Wear-Resistant |
| Application | Mining & Quarry |
| Wear Resistance | 3-8 times longer life span |
3) HUATAO focus to supply the 1040*700mm TH48-30 Stack Sizer
Polyurethane Screen Panels
As a leading manufacturer of mining screens, HUATAO offers the
Durable Polyurethane Screen Mesh with a commitment to quality, reliability, and customer
satisfaction. Our screens are designed for maximum efficiency and
longevity, ensuring cost-effective solutions for your mining
operations. With fast delivery and exceptional service, HUATAO is
your trusted partner in mining equipment.
4) Images of Polyurethane Screen Mesh include:

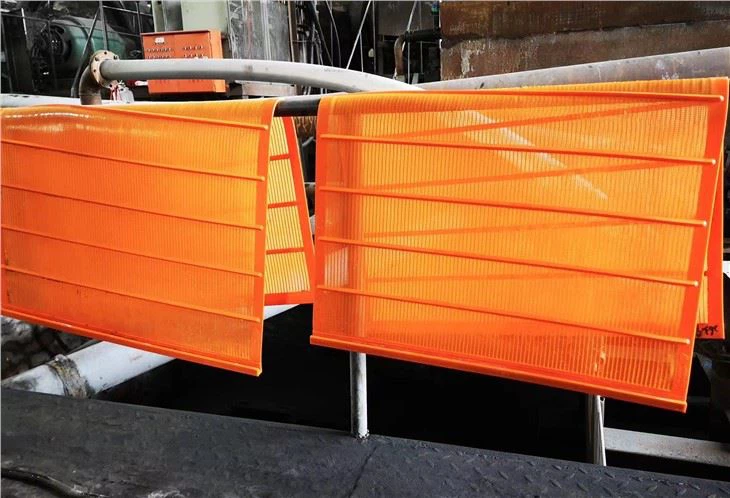

A close-up of the High Wear-Resistant Wet Polyweb Screen hooks
showing :
A photo of the High Wear-Resistant Wet Polyweb Screen in use in a
slica Sand application.
5) Factory Production Processing of High Wear-Resistant Wet Polyweb Screen
The manufacturing of High Wear-Resistant Wet Polyweb Screen
involves advanced techniques to ensure precision, durability, and
optimal performance. Below is a detailed overview of the production
workflow:
1. Material Preparation:
High-grade polyurethane raw materials, including pre-polymers and
curing agents, are meticulously selected based on abrasion
resistance and
elasticity requirements. Additives such as UV stabilizers and
anti-aging agents are blended to enhance longevity in harsh
environments.
2. Mold Design & Fabrication:
Precision CNC-machined molds are crafted from stainless steel or
aluminum, incorporating the exact aperture geometry (e.g., 0.045mm
wedge-shaped slots). Mold surfaces are polished to a mirror finish
to ensure smooth demolding and dimensional accuracy.
3. Casting & Curing:
The liquid polyurethane mixture is vacuum-degassed to eliminate air
bubbles.
It is then poured into preheated molds and subjected to
controlled-temperature curing (80–120°C) in hydraulic presses. This
step ensures
uniform density and structural integrity.
Post-curing thermal treatment further enhances tensile strength and
chemical resistance.
4. Demolding & Trimming:
Cured screens are carefully demolded, and excess flash is removed
using laser trimming or precision cutting tools. Edge sealing is
applied to
prevent delamination during high-frequency vibrations.
5. Quality Control:
Aperture Verification: Laser scanners measure aperture sizes (e.g.,
0.045mm ±0.005mm) and open area ratios (35%–40%).
Durability Testing: Simulated high-frequency vibration cycles (up
to 3,600 RPM) assess fatigue resistance.
Material Certification: Shore hardness (85–95A), tear strength, and
chemical compatibility are validated per ISO 9001 standards.
6. Surface Treatment (Optional):
Anti-static coatings or custom-colored finishes are applied for
specific industrial requirements, such as explosive environments or
visual
inspection needs.

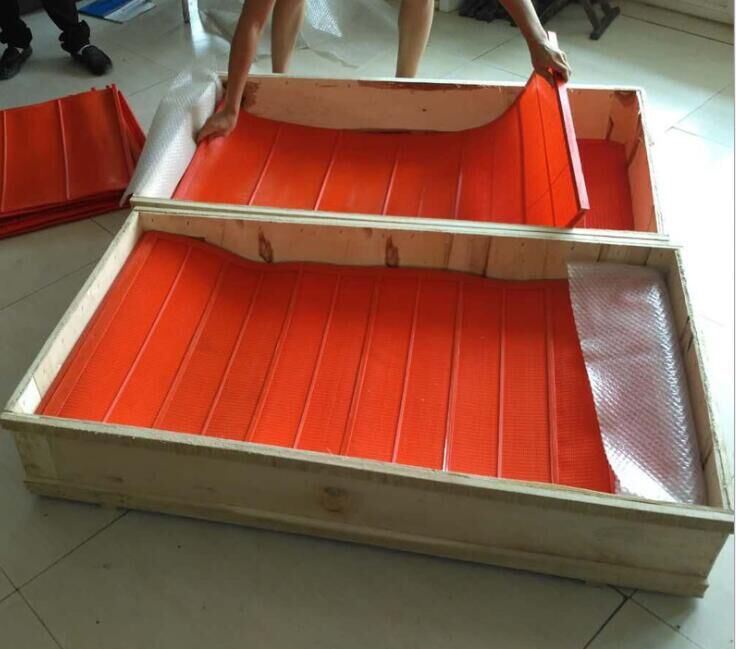

7. Packaging & Logistics:
Screens are packed in moisture-proof, shock-absorbent materials and
labeled for traceability. Custom sizes and OEM branding are
accommodated seamlessly.
