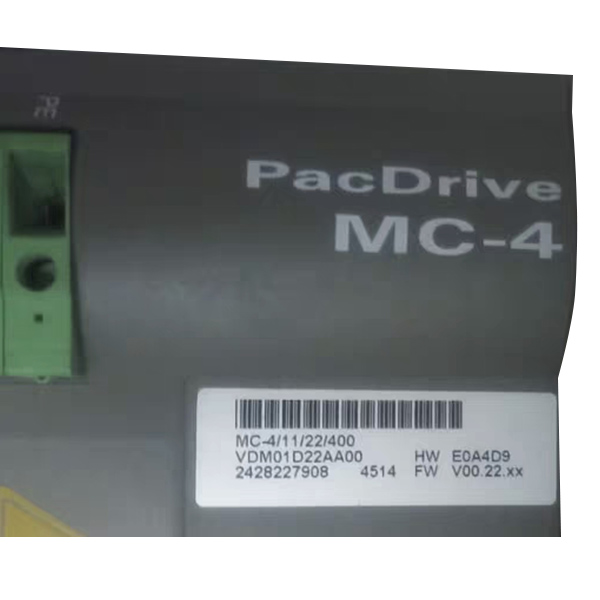

Elau driver module VDM01D22AA0 (MC-4/11/22/400)
1, Basic Product Information
Product Name: MC-4/11/22/400 V
Order number: 13 13 02 54
Main function: High performance servo drive module, suitable for
motor control, bus communication, and energy management in
industrial automation systems.
2, Key technical parameters
power input
Rated connection voltage: three-phase AC 380-480V (± 10%), 48-62Hz
Control voltage/current: DC 24V (-15%/+25%), 1A
dc bus
Voltage range: 530-680VDC
Capacitor: 705 µ F
Discharge circuit:
Opening voltage: 820VDC
Turn off voltage: 800VDC
Overvoltage: 860VDC
Discharge resistance: 42 Ω, 150W continuous power, 15kW peak power
Motor connection
Switching frequency: 8kHz
Peak current: 55Aeff (1 second)
Rated power: 15.2kVA
Stray power
Standby power consumption of electronic components: about 12W
Internal discharge power consumption: 0-150W (application
dependent)
Power consumption: approximately 15W/A
I/O interface
Input: DC 20-30V/5mA (normal input), DC 20-30V/30mA (ie input),
filtering time 5ms
Output: Relay output DC 20-30V/2A
Environmental and Physical Characteristics
Dimensions: Width 160mm, Height 400mm, Depth 310mm
Weight: Net weight 6.3kg, box load 7.0kg
Protection level: IP20 (main body)/IP54 (after installation)
Working temperature:+5 ° C to+45 ° C (short-term+55 ° C)
Storage temperature: -25 ° C to+70 ° C
Certification: CE, UL, cUL
Comparative analysis of MC-4 series modules
1, Model comparison
model MC-4/11/22/400 MC-4/11/03/400 MC-4/11/01/400 MC-4/11/10/400
MC-4/11/05/230 MC-4/10/50/400
Voltage input 380-480VAC 380-480VAC 380-480VAC 220-240VAC
380-480VAC
Rated current 22Aeff 3Aeff 1Aeff 10Aeff 5Aeff 50Aeff
Peak current 55Aeff (1s) 7.5Aeff (1s) 2.5Aeff (1s) 25Aeff (1s)
12.5Aeff (1s) 125Aeff (1s)
Rated power 15.2kVA 1.0kVA 0.4kVA 6.9kVA 1.9kVA 34.5kVA
DC bus voltage 530-680VDC 530-680VDC 530-680VDC 260-370VDC
530-680VDC
Dimensions (width x height x depth) 160 x 400 x 310mm 100 x 400 x
320mm 100 x 400 x 320mm 100 x 400 x 320mm 100 x 400 x 320mm 100 x
400 x 320mm 160 x 400 x 310mm
Weight 6.3kg 3.1kg 2.5kg 3.6kg 3.1kg 8.0kg
Application Scenarios: High Voltage, High Power, Small Equipment,
Micro Load, Medium Equipment, Low Voltage Equipment, Ultra High
Voltage, High Power
2, Core difference analysis
Power and current capability
MC-4/11/22/400: Rated current of 22Aeff, peak value of 55Aeff,
power of 15.2kVA, suitable for high-voltage and high-power
scenarios (such as heavy machinery and large printing machines).
MC-4/11/05/230: Low voltage model, rated current 5Aeff, peak value
12.5Aeff, power 1.9kVA, suitable for 220-240VAC power grid (such as
packaging machinery, light automation equipment).
MC-4/10/50/400: Ultra high voltage model, rated current of 50Aeff,
peak value of 125Aeff, power of 34.5kVA, suitable for extreme load
demands (such as wind power pitch, large energy storage systems).
Size and weight
The width of MC-4/11/22/400 and MC-4/10/50/400 is 160mm, while
other models are 100mm. The former is more suitable for independent
installation, while the latter is suitable for compact cabinets.
Weight difference: MC-4/10/50/400 is the heaviest (8.0kg), while
MC-4/11/01/400 is the lightest (2.5kg), which affects installation
and maintenance costs.
DC Bus Voltage
MC-4/11/22/400, MC-4/11/03/400, MC-4/11/10/400, MC-4/10/50/400
support 530-680VDC and are compatible with high-voltage motors.
MC-4/11/05/230 only supports 260-370VDC and is suitable for
low-voltage motors.
Application scenario adaptation
High voltage and high power: MC-4/11/22/400, MC-4/10/50/400
Low voltage compact models: MC-4/11/05/230, MC-4/11/01/400
Medium load: MC-4/11/10/400, MC-4/11/03/400
| VDM01U30AA00 | 13130245 | MC-4/11/03/400 |
| VDM01U15AQ00 | 13130244 | MC-4/11/01/400 |
| VDM01D10AQ00 | 13130247 | MC-4/11/10/400 |
| VDM01D22AA00 | 13130254 | MC-4/11/22/400 |
| VDM01U50AA00 | 13130246 | MC-4/11/05/230 |
| VDM01D50AA00 | 13130256 | MC-4/10/50/400 |
summarize
MC-4/11/22/400 is the preferred choice for high-voltage and
high-power scenarios, with high current, high power, and wide
voltage range, suitable for heavy industrial equipment.
Compared to other models, it is more suitable for independent
installation or large-scale system integration in terms of power
density, size, and weight, while low-voltage models (such as
MC-4/11/05/230) are more suitable for compact or light load
applications.
Selection suggestion: Based on the comprehensive selection of motor
voltage, power requirements, installation space, and budget, ensure
the best balance between performance and cost.
