Customizable WPC Profile Plastic Production Machines With 28 1
Screw L/D Ratio And Choice Of Color
WPC profile production line
WPC profile extrusion line
WPC profile extrusion machinery
WPC profile line
WPC profile machine
WPC profile extrusion machinery
WPC plastic machine
----------------------------------------------------------------------------------------------------------------------------------------------------------------------
| Production Description |
 | - Plastic-wood compounded finished product is a new type of ideal
environment-friendly material, which is made from PVC resin,
polyolefin plastic and cellulose(straw, cotton stalk, wooden power,
rice chaff, etc) with special procession and treatment.
- It has such advantages as rot prevention, non-deformation,
non-shading, pest resistant, fire-proof, split proof, etc.
- It can be processed by a sawing machine or a planning machine.
- It not only has natural properties of wood, but also has many
colors for you to choose as per your demand
|
|
Technical paramete of wpc profile making machine
| Model | Unit | JG-MSX51/105 | JG-MSX65/132 |
| Screw Dia | mm | 51/105 | 65/132 |
| Screw Quantity | Piece | 2 | 3 |
| Rotational Speed | r/min | 1-40 | 1-38 |
| Main Extruder Power | kw | 22 | 37 |
| Heating Power (approx) | kw | 8 | 24 |
| Extrusion Output | kg/h | 50-150 | 80-200 |
Main composition of wpc profile making machine
| Item | Quantity |
| 1.twin screw extruder | one set |
| 2.Die mould | one set |
| 3.Vacuum forming unit | one set |
| 4.Haul-off unit | one set |
| 5.Cutting unit | one set |
| 6.Stacker | one set |
7.Electric control system | one set |
| 8.Spare parts list | one set |
Photos of wpc profile making machine
1.Twin screw extruder
The specially designed screw and the advanced controlling system
ensure excellent plasticization, high output and stable extruding.

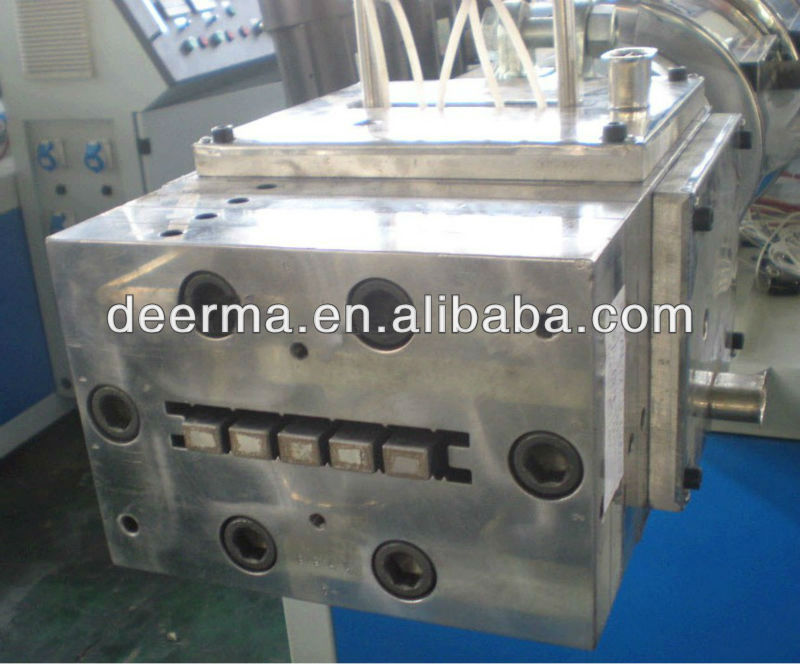

2.Die mould
Mould adopts high-quality alloy steel and throttling device to
ensure even pressure of feed influent at the mould lips, and also
differential action of up-down piece guarantee even thickness of
the plate.
3. Vacuum Calibrating stable
Heating exchanging and cooling system of quick speed in calibrating
system alternate effectively and ordinally with vacuum system,
which ensures calibrating precision. Vacuum system composes two
independent subsystems and each is equipped with several fixed
circulating vacuum lines of three-point type. Meanwhile, each line
carries vacuum regulating system and vacuum display system that
realize even and stable vacuum degree of plate surface.

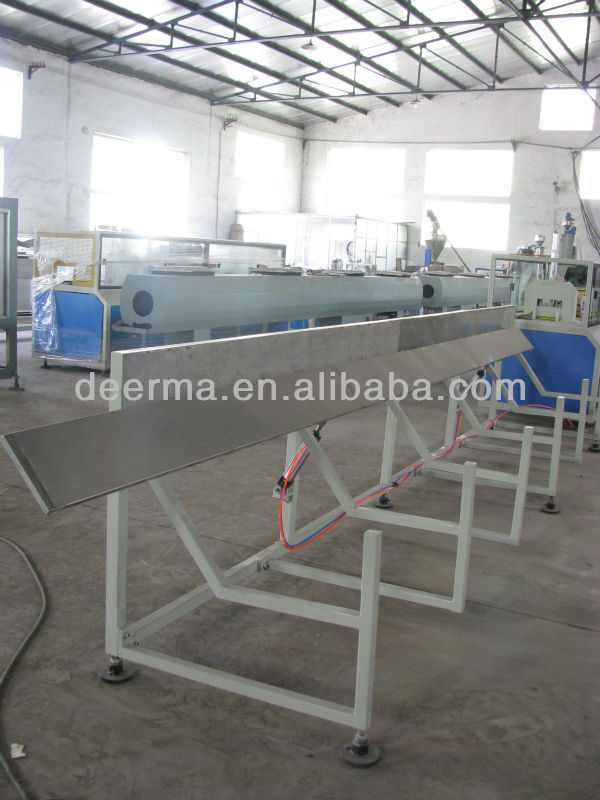

4.Haul-off unit and cutting unit
There are two tractors. The first one is of high powr, high
reduction ratio, multi-roller type, well low-speed operation, high
traction and is able to draw the plate up from the calibrating
table evenly and synchronal. The second one is designed to remove
stress, and in addition it is equipped with edge-cutting device to
ensure the valid width and smooth cut of the edges.
5.Stacker
6.Electric control system
Application

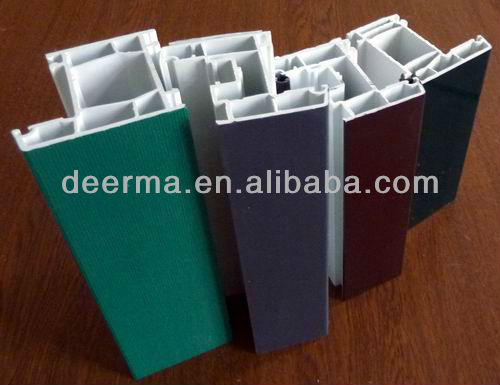

wpc production line is mainly used for producing wpc profiles,such
as decking,skirting stair handrails etc.Meanwhile,this production
line can also produce pure pvc products,such as door&window
frame,ceiling etc.Final products has good appearance,high
compression capability.not easy deformation.

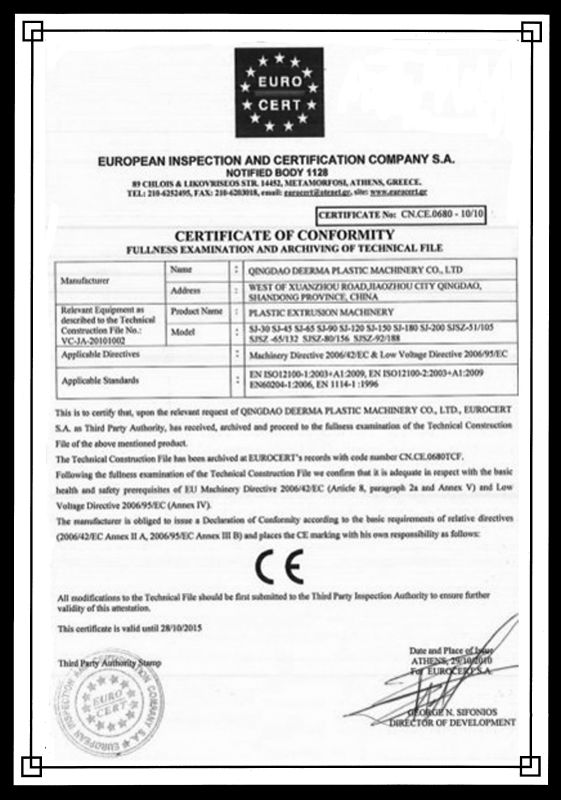

Certification
Services
1.When machines arrived at buyer's factory,our company will arrange
professional engineers to buyer's company,to helo install machines
and train workers how to operate machines.
2. Warranty time of machines is 12months.
Our company
If you want more details about this wpc machine/wpc making machine,
wpc making machinery, wood plastic extrusion, production line,
please do not hesitate to let me know!Thanks
