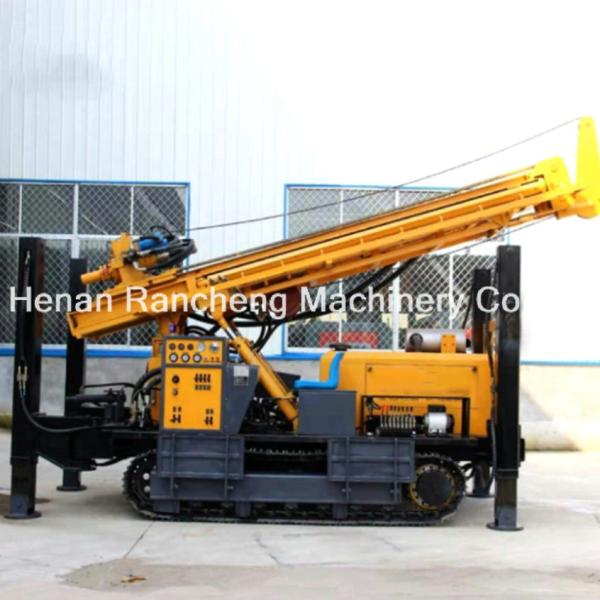

Diesel Engine Multi-Functional Water Well Drilling Rig Crawler
Mounted Machines With 118KW Yuchai Engine
Product Description
RCF500C deep water well drilling rig is our independent research
and development products. These new generation DTH are coupled to
higher air power, and thus play a significant role in leading to
faster drilling rates.
Adopting newest model & advanced hydro technology, low consumption,
large rotary torque, convenient hole deflection,
Made from high quality materials, with fashion and compact design,
that keeps our drilling rigs more efficiency and with low failure
rate, more economic and durable, and with a high comprehensive cost
performance. Our water drilling rigs have received the real market
validation as the majority of our customers’ positive feedback.
Technical Parameters
| Model | RCF500C |
| Weight(kg) | 11500 | Drill pipe diameter(mm) | Φ102 Φ108 Φ114 |
| The hole diameter(mm) | 140-350 | Drill pipe length(m) | 1.5m 2.0m 3.0m 6.0m |
| Drilling depth(m) | 500 | Rig lifting force(T) | 26 |
| One-time advance length(m) | 6.6 | Rapid rise speed(m/min) | 20 |
| Walking speed(km/h) | 2.5 | Fast feeding speed(m/min) | 40 |
| Climbing angles(Max.) | 30° | Width of loading(m) | 2.85 |
| Equipped capacitor(kw) | 118 | Hoisting force of winch(T) | 2 |
| Using air pressure(MPA) | 1.7-3.5 | Swing torque(N.m) | 7500-10000 |
| Air consumption(m³/min) | 17-42 | Dimension(mm) | 6200×2200×2650 |
| Swing speed(rpm) | 40-130 | Equipped with hammer | Medium and high wind pressure series |
| The penetration efficiency(m/h) | 15-35 | High leg stroke(m) | 1.7 |
| The engine brand | Yuchai engine |
Application
The water well drilling machine are mainly used for well drilling
in resource exploration and hydrology wells, civil use water well,
agriculture irrigation etc projects.
Our service
1. Before the sale, we will serve as your advisor and assistant to
ensure you make informed investment decisions:
① Assist you in selecting the equipment model that best suits your
needs;
② Design and manufacture products according to your special
requirements;
③ Provide you with training technical personnel services.
2. During the sales process, we will provide the following
services:
① Conduct pre-acceptance before shipment;
② Help you develop solutions.
3. After the sale, we will provide considerate services to minimize
your worries:
① Provide comprehensive after-sales service, our professional
engineers can repair machinery for you at home and abroad;
② 24 - hour technical support via email;
③ Provide other necessary technical services.
Machine Picture Display
