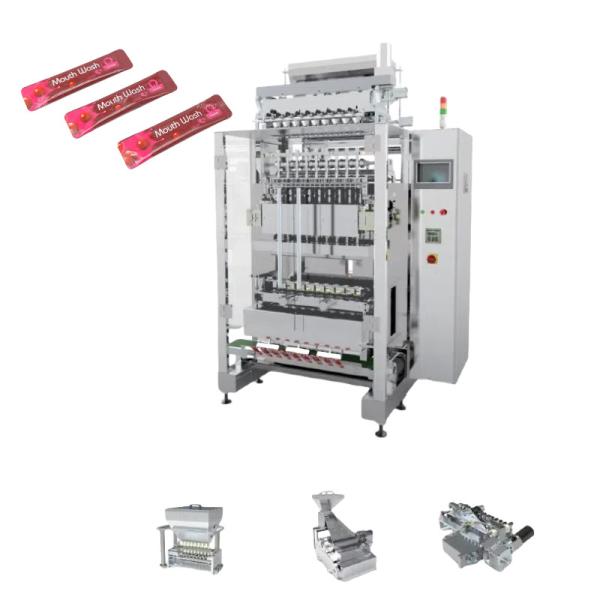

Multi Column Design Multi Lane Packing Machine For improved Production Efficiency Of Liquid Products
The multi-column liquid packaging machine is a highly efficient
automated equipment, mainly used for multi-column synchronous
packaging of liquid or semi-fluid products, and is widely used in
food, medicine, chemical, daily chemical and other industries.
Intelligent sealing and cutting
Adopting heat sealing, ultrasonic sealing and other technologies to
ensure the sealing of packaging, and equipped with automatic
cutting device to cut continuous packaging materials into
independent finished products.
High-precision metering control
Driven by servo motor or stepper motor, combined with real-time
monitoring by sensor, precise adjustment of filling volume (such as
±1% error) is achieved, supporting flexible adjustment from
milliliters to liters.
Main Features
1. lt has SS 304 stainless steel, a strong and long-lasting material.
Lane number | 4/6/8/10/12 Lanes |
Measuring range | 1-50ml (depend on bag size and packaging material) |
Packing speed | 30-50 cuts/min |
Bag length | Max. 170mm (customized) |
Bag width | 16-84mm / 16-54mm / 16-40mm / 16-32mm / 16-26mm |
Bag type | 3/4 side seal bag, back seal bag, irregular shape stick bag |
Voltage | 380V, 50Hz, 3 Phase |
Power | 4.5-6.2KW |
Air consumption | 7L/min |
Machine size | Non-standard customization |
Machine weight | About 1500kg |
![]() |
