    1 Core PV Cable EN50618 H1Z2Z2-K Photovoltaic Cables China Factory

    Ask Lasest Price
    Brand Name : Zhenglan Cable
    Model Number : 1core PV cable EN50618 H1Z2Z2-K Photovoltaic cables China factory
    Certification : 3C,ISO 9001:2015,ISO 14001:2005
    Price : Negotiable
    Payment Terms : T/T, L/C, ,Western Union
    Supply Ability : 80000M/DAY
    Delivery Time : 7-15DAY
    • Product Details
    • Company Profile

    1 Core PV Cable EN50618 H1Z2Z2-K Photovoltaic Cables China Factory

    1core PV cable EN50618 H1Z2Z2-K Photovoltaic cables China factory


    Application

    The 4mm² cross-sectional area design takes into account both high current carrying capacity and wiring convenience, and is suitable for scenarios such as photovoltaic array series connection, inverter docking, energy storage systems and distributed power stations, and fully covers the needs of household roofs, industrial and commercial power stations and large photovoltaic parks. The flexible sheath is kink-resistant, easily handles complex wiring, and reduces construction costs.
    Tinned copper core, excellent anti-oxidation performance, more stable conductivity, reduce long-term use loss, and extend system life.
    • Double-layer cross-linking: inner cross-linked polyolefin (XLPO) insulation + outer cross-linked polyolefin sheath, high temperature resistance (-40℃~120℃), UV resistance, acid and alkali resistance and mechanical wear resistance, double protection against outdoor extreme environments, no fear of wind and snow erosion.


    Standard
    EN50618, 2Pfg-1169

    SPECIFICATION
    Nominal Voltage: DC 1.5KV/ 1.8KV, AC 0.6/1.0KV
    Ambient Temperature: -40ºC~+90ºC
    Max.Temperature at conductor: +120ºC
    Service life: >25 years ( -40ºC~+90ºC)
    Withstand voltage(V/5min): AC6500
    Min bending radius(mm) : 5*D


    CONSTRUCTION

    1. class 5 tinned copper conductor
    2. insulation: XLPO
    3. sheath:XLPO


    1core PV cable EN50618 H1Z2Z2-K Photovoltaic cables China factory PARAMETERS

    ConstructionWire strand maximum size(≤)Conductor approx. diameterMinimum Insulation thickness (≥)Minimum outer sheath thickness (≥)Cable outer diameterMaximum resistance Max.(≤)Current Carring Capacity AT 60
    mm²mmmmmmmmmmΩ/KmA
    1X4.00.312.40.530.585.55.0955

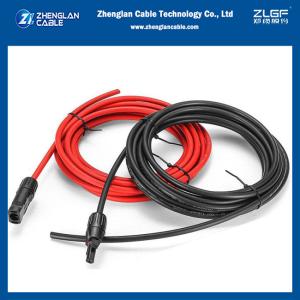

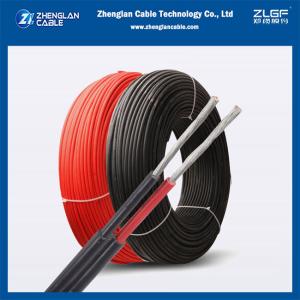

    1core PV cable EN50618 H1Z2Z2-K Photovoltaic cables China factory images:
