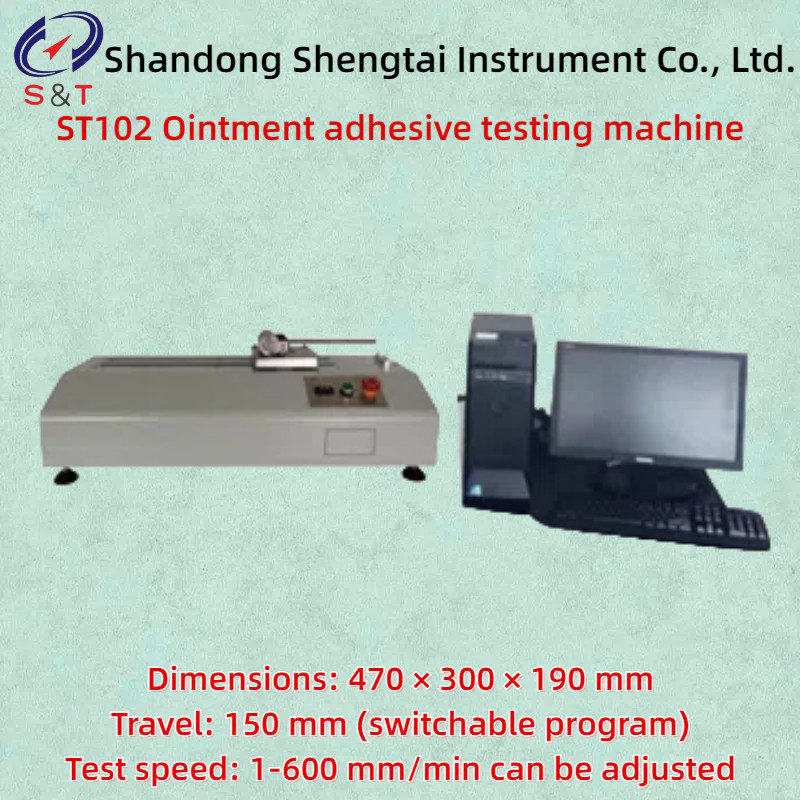

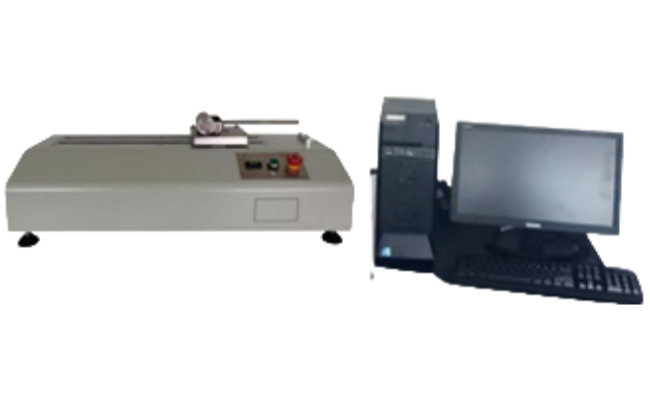

ST102 Ointment adhesive testing machine
The ST102 ointment adhesion testing machine is designed strictly in
accordance with the requirements of the fourth method of adhesion
determination in the new version of the "2025 Chinese Pharmacopoeia
0952 Adhesion Determination Method". It adopts modern mechanical
design concepts and ergonomic design principles, and uses advanced
microcomputer processing technology for careful and reasonable
design and manufacturing. It is a new generation of testing machine
with novel design, convenient use, excellent performance, and
beautiful appearance.
Overview of Testing Process:
Take 3 pieces of the test sample, usually cut into a size of 50mm ×
70mm, with the adhesive side facing upwards, and place them on the
sample module. Align with the appropriate scale line, tear off a
little of the cover lining on both sides, and use a pressure strip
to press down on the exposed adhesive surfaces on both sides.
Carefully remove the cover lining and place it naturally in the
center on the fixture base plate, so that the test sample fits flat
on the base plate. Press down the pressure plate horizontally, fix
the bottom plate and pressure plate with bolts on both sides,
evenly tighten the adhesive surface of the test sample on the
rectangular strip, place it on the instrument, fix it, and select
the appropriate measurement mode for measurement.
The instrument comes with different measurement modes for setting
the forward and backward speed of the pressure spoke, which are
used for rolling and testing, respectively. Unless in special
circumstances, the forward speed of the pressure spoke is generally
set at 600mm per minute, and the backward speed is set at 21mm per
minute.
Product Features:
● Adopting high-precision force sensors to ensure testing accuracy
error within ± 1%.
● Adopting stepper motor control, the measuring head travels
accurately and stably, and the measurement results have good
repeatability.
● Friendly human-machine interface operation, fully automatic
completion of testing, with testing data statistical processing
function, and micro printer output.
● The test results are automatically memorized and displayed,
reducing human error, making it easy to operate and ensuring stable
and accurate results.
● Equipped with computer connection software, automatic
communication and storage of test results, and automatic printing
Product parameters:
| Load range | 0-5000mN |
| Outer diameter of pressure roller | 50mm |
| Travel | 150 mm (switchable program) |
| Test speed | 1-600 mm/min can be adjusted |
| Environmental requirements | temperature 15-30 ℃ humidity 20% -80% |
| Dimensions | 470 × 300 × 190 mm |
| Net weight | 20kg |
● Load range: 0-5000mN
● Outer diameter of pressure roller: 50mm
● Travel: 150 mm (switchable program)
● Test speed: 1-600 mm/min can be adjusted
● Environmental requirements: temperature 15-30 ℃, humidity 20%
-80%
● Dimensions: 470 × 300 × 190 mm
● Net weight: 20kg
Note: The appearance pictures, dimensions, volume, and weight of the
instrument are for reference only. If there are any updates to the
instrument, there may be slight changes without prior notice.
Shandong Shengtai Instrument Co., Ltd. provides the following
quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national
quality standards, and have a manufacturer's certificate of
conformity;
----The materials and main components provided meet the technical
requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one
year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument
quality issues that occur during the warranty period. Due to
equipment malfunction caused by the user's responsibility, we are
responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime
maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs
maintenance and technical services, we will only charge a cost fee.
Packing list
| Number | Name | Specification | Quantity | Unit | Remarks |
| 1 | Adhesive testing machine | Host | 1 | Unit | |
| 2 | Specialized standard pressure roller | | 1 | Individual | On the host |
| 3 | On the host | | 1 | Set | |
| 4 | Computer connection software | | 1 | Root | |
| 5 | Power line | | 1 | Copy | |
| 6 | Instructions | | 1 | Copy | |
