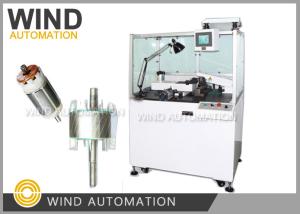

WIND-CT-TH3B
ROTOR WITH INJECTION, OSCILLATING SHAFT AND EXHAUST SHAFT
SurfaceTurning Machining Machine Application:
The lathe turning machine WIND-CT-TH3B is designed to turn the
Plane Commutator surface
Rotor OD and Slip Ring
Commutator turning place |
Lathe Rotor OD or After welding, can turn the commutator OD and
riser OD of automotive armature,Commutator Of General Sides Used
For Automobile
|
Cutter number |
One cutter
|
Servo axis device |
With two (X,Z Axis) Delta servo axis
|
|
X axis control the length of turning left right horizontal position
Z Axis control the depth of lathing in vertical position
|
Turning Machine Lathe Surface Competitive Advantages:
1.Precise with two axis Delta servo device control
(Delta have quick and good after-service if any question)
The two axis servo device work with screw rod achieve absolute
position control,
to get precise turned rotor OD with tolerance under 0mm to
-0.03mm~-0.05mm,
2.Delta PLC
3.Delta inverter
4. Airtac cylinder
5.Diamond V holder and Diamond cutter
a. Comparing with Alloy CNC turning tool (carbide),Diamond turning tool is what most Chinese
motor manufacturers are using as diamond tool can achieve shining
and micro finish
b. The holding device of machine WIND-CT-TH3B for holding your Rotor
OD have two side ball bearing
device which prevent shaft from wear
c. For turning aluminum rotor OD, it with belt press and ball bearing
to ensure the concentricity
and prevent the shaft from abrasion,
Also it is no necessary to do oil lubrication during turning,
6. A German customer who used 1st generation turning machine for
over 14 years in German and Austria
and still purchase diamond cutter from us
Lathe Machine Specification:
1. Roundness < 0.003mm
2. Surface roughness <Ra0.40
3. Armature OD 20~80mm
4. Shaft length:32~250mm (If longer need custom made)
5. Shaft Diameter: 2~18mm (can be custom made)
6. Commutator OD: 4.3~60mm
7. Stack OD: 20~90mm
8. Cutting amount:Rough cut Max0.20mm
9. RPM modulate: 0~60Hz
10. Cutter unit: 1um~0.5mm and speed adjustable
11. Cutting length:Max50mm
12. Cutting times: X axis can be setted up to 4times, Z axis 4times
can be setted up to 4times
13. Air source: 5~7 MPa
14. Power source 220V 50/60Hz
15. Machine Power: 2KW
