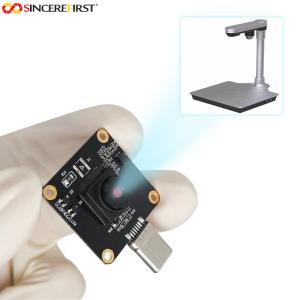

2MP Dual Face Recognition UART Camera Module With USB Interface
Product Description:
2MP Dual Face Recognition UART Camera Module With USB Interface is
an embedded vision solution designed for intelligent door locks,
access control systems and AIoT scenes, integrating 2 million pixel
HD sensor and dual camera face recognition algorithm. Accurate
identity verification at 1600*1200 infrared resolution. The
ultra-small size of 40mm*15mm*8.2mm can be flexibly embedded in all
kinds of terminal equipment, H57°, V72°, D84° wide field of view
Angle covers the height range of 1.3-2 meters, with 40-100cm
intelligent sensing distance, taking into account the needs of
users of different heights and installation environment.
Its industrial reliability is particularly outstanding, in the -25℃
extreme cold to 70℃ high temperature, 40%-80% high humidity
environment, continuous and stable operation, especially suitable
for the northern cold region, the southern humid climate and
complex conditions of industrial sites. The dual-camera algorithm
supports live detection and anti-attack, and the millisecond
response speed ensures smooth user experience, which is widely used
in smart community unit doors, financial ATMs, office space access
control, laboratory entrance verification and other scenes.
As the core hardware of intelligent security upgrade, the module
provides full-link support from front-end collection to cloud
decision-making for "face recognition + Internet of Things"
application scenarios with high precision identification, strong
environmental adaptability and open compatibility.
Features:
1. Extreme recognition performance: Fusion of dual-camera algorithm
and 2-megapixel sensor achieves high-precision recognition at
1600*1200 infrared resolution, supports live detection and
anti-attack, misidentification rate is less than one millionth,
millisecond response speed ensures smooth user experience.
2. Full climate adaptability: -25℃ to 70℃ extreme temperature,
40%-80% high humidity environment can be stable operation, no fear
of condensation, dust and other harsh conditions, especially
suitable for the northern extreme cold area and the southern humid
scene.
3. Scene adaptation flexibility: the ultra-small size of 40158.2mm
can be embedded in various devices, the wide field of view Angle of
H57°/V72°/D84° covers people of different heights, and the
induction distance of 40-100cm is automatically adjusted to meet
the diverse installation needs from smart door locks to industrial
access control.
Technical Parameters:
| Product Name | Face Recognition Camera Module |
Module Size | 40mm*5mm*8.2mm |
IR Resolution | 1600*1200 |
IR FOV | H57°,V72°,D84° |
Operating Temperature | -25℃~70℃ |
Working Humidity | 40％-80% |
Working Range | 40cm-100cm |
Frame Rate | 30FPS |
Interface Type | USB |
Brand Name | SINEREFIRST |

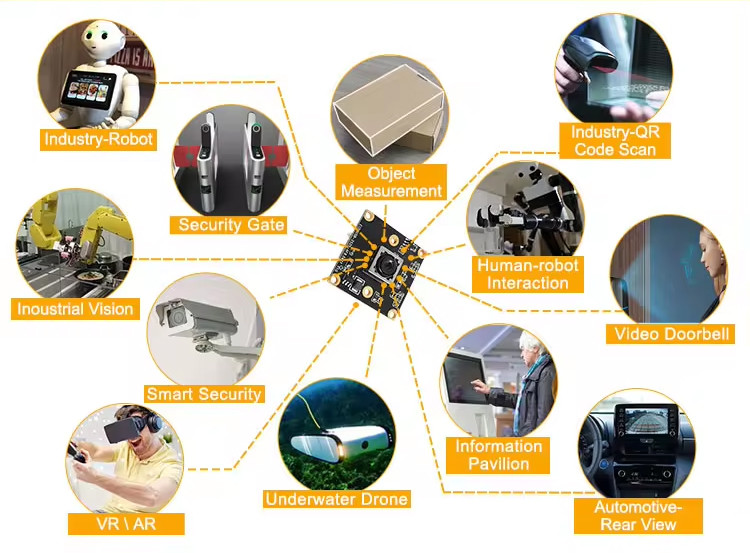

Applications:
Office: Ideal for office environments that require high-definition
video conferencing and document shooting.
Monitoring: Due to its high resolution and stability, it is
suitable for security surveillance and video surveillance systems
Machine Vision: used for high-precision detection, positioning,
measurement, etc.
Industrial Testing: used for automated testing, quality monitoring,
part identification, etc.
Intelligent Transportation: used for license plate recognition,
traffic monitoring, violation capture, etc.
Medical Equipment: used for endoscopes, surgical aids, etc.
Research Experiments: used for high-speed motion capture,
microscopic imaging, etc.
Customized Process:
1. You can provide drawings or samples, as well as request
documentation and developed by our engineering staff.
2. Communication or Meeting
3. We will communicate with you in detail to determine somewhat
product you need and try to set the most suitable product for you
according to your needs.
4. Sample Development
5. Determine the details of the development sample and the delivery time. Communicate at any time
to ensure smooth progress.
6. Sample Testing
7. Test and age on your application, feedback test results, no need
to modify, mass production.
