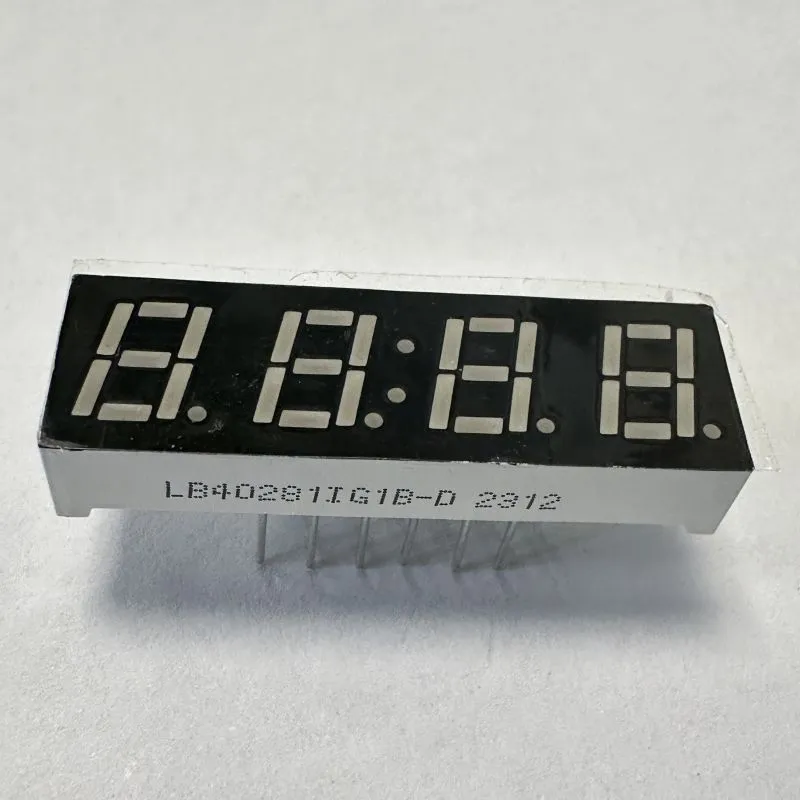

Pure Green 4 Digit 7mm LED Display 7 Segment Common anode for
temperature controllerAbsolute Maximum Ratings(Ta=25ºC)
| Parameter | Symbol | Ratings | Unit |
| Forward Current(per dice) | Ipm | 20 | mA |
| Reverse Voltage(per dice) | Vr | 5 | V |
| Power Dissipation(per dice) | Pm | 80 | mW |
| Operating Temperature Range | Topr | -40~+85 | ºC |
| Storage Temperature Range | Tstg | -40~+85 | ºC |
| Solder Temperature(3 sec) | Th | 260 | ºC |
4 Digit 7 Segment LED DisplayCharacter height: 0.28"( 7.mm)
Outer dimensions: 32.1*10.1*5.8mm
Polarity: Common anode
White Epoxy black surface
Pure Green LED
Emitting colours: red, blue, green, white, amber, orange and yellow
Code:R-Ultra bright white| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage(Per dice) | Vf | If=20mA | 2.8 | | 3.2 | V |
| Reverse Voltage(Per dice) | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensty(Per dice) | Iv | If=20mA | 100 | | 140 | mcd |
| Spectrum With Of Half Value | λ | If=20mA | | 20 | | nm |
| Color Temperature | | If=20mA | 6000 | | 6500 | K |
| LED working lifetime 100,000hrs Absolute Maximum Rating at Ta=25ºC |
Application of Segment LED Displays
-- Audio Equipment or instrument panels;
-- General using for digital indicators;
-- Multimedia products;
-- Bank exchange rate display;
-- LED clock display;
-- Display for gas station and other various display areas of
equipment/machine.
Product Feature:
Forward voltage (high luminous intensity output)
Low power consumption
Extremely low current
Luminous evenly distributed on each segment
Industrial standard size
Provides excellent reliability in bright ambient light
Stable performance
Long lifetime
Meet RoHS/REACH compliant
