    VICTOR 07 Temperature Calibrator Multi-function process calibrator thermocouple calibrator

    Ask Lasest Price
    Brand Name : VICTOR
    Model Number : VICTOR 07
    Certification : CE
    Price : USD268/pc
    Payment Terms : T/T, Western Union, L/C, Paypal
    Supply Ability : 3000pcs available
    Delivery Time : 5 to 30 days
    • Product Details
    • Company Profile

    VICTOR 07 Temperature Calibrator Multi-function process calibrator thermocouple calibrator

    VICTOR 07 Temperature Calibrator Multi-function process calibrator thermocouple calibrator


    Introduction

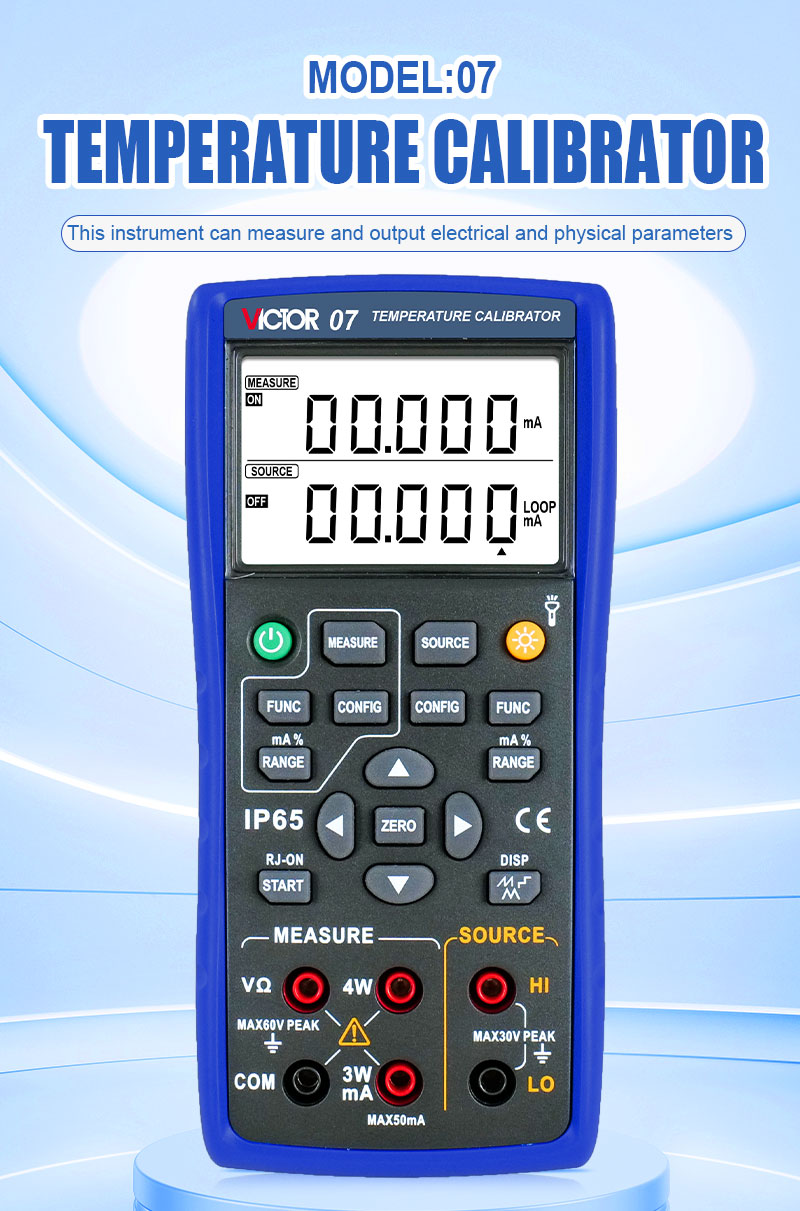

    Temperature calibrator (hereinafter referred to as calibrator) is a hand-held portable instrument powered by battery and capable of measuring and outputting electrical and physical parameters. Can be used for measuring DC voltage, DC current, resistance, thermocouple and thermal resistance; And simulating output DC voltage, DC current, resistance, thermocouple, thermal resistance.

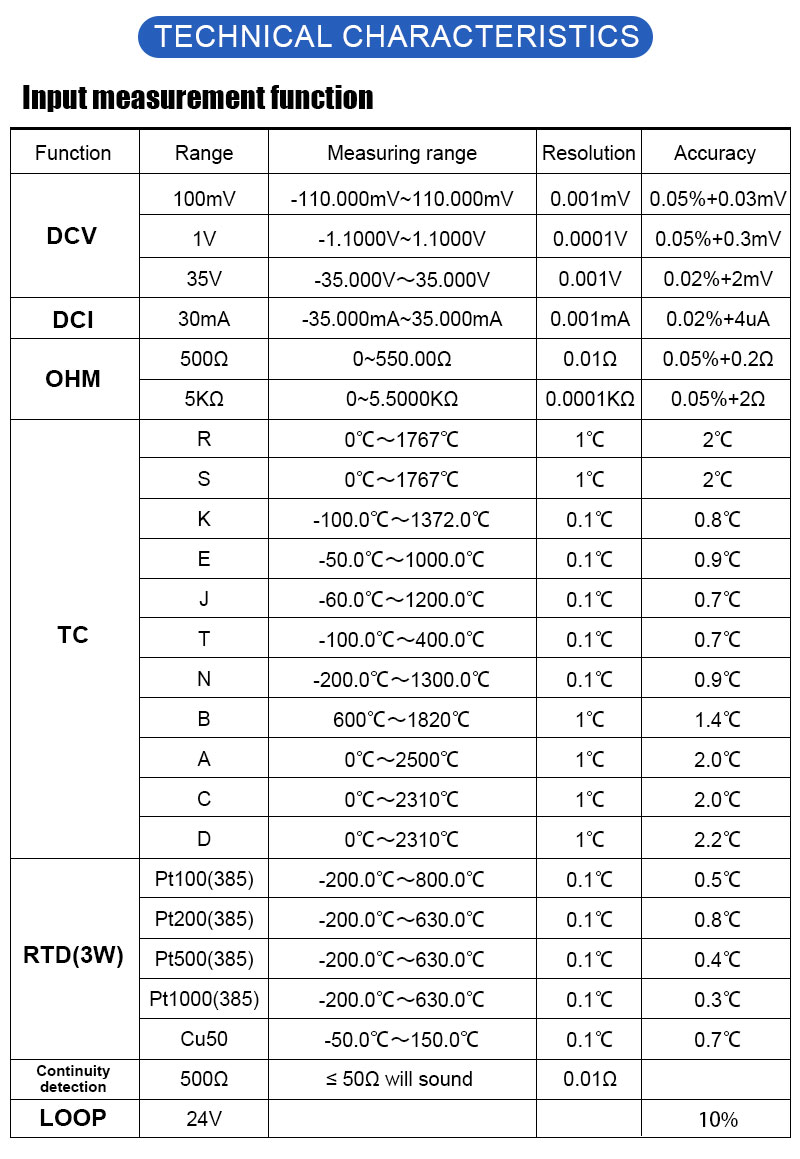

    Measurement functionRangeMeasuring rangeResolutionAccuracyRemarks

    DC Voltage

    DCV

    100mV-110.000mV~110.000mV0.001mV0.05%+0.03mVInput resistance: Approximately 1MΩ
    1V-1.1000V~1.1000V0.0001V0.05%+0.3mV
    35V-35.000V~35.000V0.001V0.02%+2mV

    DC current

    DCI

    30mA-35.000mA~35.000mA0.001mA0.02%+4uA

    Shunt resistance: Approximately 10Ω

    Input resistance: Approximately 20Ω

    Resistance

    OHM

    500Ω0~550.00Ω0.01Ω0.05%+0.2Ω

    2W/3W/4W measurement

    500Ω~1mA excitation

    5KΩ~0.1mA excitation

    Open circuit voltage: Approximately 2.5V

    Lead resistance is not included in measurement accuracy

    5KΩ0~5.5000KΩ0.0001KΩ0.05%+2Ω

    Thermocouple

    TC

    R0°C~1767°C1°C

    0~500℃

    500~1767℃

    2.5℃

    2℃

    Use ITS-90 temperature scale

    Error of cold junction compensation is not included in accuracy

    Sensor inaccuracy not included in accuracy

    The effect of thermoelectric potential is not included in the accuracy

    The corresponding materials of the left division number are as follows:

    R: Platinum rhodium 13-Platinum

    S: Platinum rhodium 10-Platinum

    K: Nickel chromium-Nickel silicon

    E: Nickel chromium-Copper nickel (Constantan)

    J: Iron-Copper nickel (Constantan)

    T: Copper-Copper-nickel (Constantan)

    N: Nickel chromium silicon-Nickel silicon

    B: Platinum rhodium 30-Platinum

    A: Tungsten rhenium 5-Tungsten-rhenium 20

    C: Tungsten rhenium 5-Tungsten-rhenium 26

    D: Tungsten rhenium 3-Tungsten-rhenium 25

    S0°C~1767°C
    K-100.0°~1372.0°C0.1°C

    -100.0~0.0℃

    0.0~1372.0℃

    1.2℃

    0.8℃

    E-50.0°C~1000.0°C

    -50.0℃~0.0℃

    0.0~1000.0℃

    0.9℃

    1.5℃

    J-60.0°C~1200.0°C

    -60.0~0.0℃

    0.0~1200.0℃

    1.0℃

    0.7℃

    T-100.0°C~400.0°C

    -100.0~0.0℃

    0.0~400.0℃

    1.0℃

    0.7℃

    N-200.0°~1300.0°C

    -200.0~0.0℃

    0.0~1300.0℃

    1.5℃

    0.9℃

    B600°C~1820°C1°C

    600~800℃

    800~1000℃

    1000~1820℃

    2.2℃

    1.8℃

    1.4℃

    A0°C~2500°C1°C

    0~1600℃

    1600~2000℃

    2000~2500℃

    2.0℃

    2.2℃

    2.4℃

    C0°C~2310°C1°C

    0~1600℃

    1600~2000℃

    2000~2310℃

    2.0℃

    2.2℃

    2.4℃

    D0°C~2310°C1°C

    0~100℃

    100~270℃

    270~1200℃

    270~2310℃

    2.6℃

    2.4℃

    2.2℃

    2.4℃

    Thermal resistance

    RTD

    (3W)

    Pt100

    385

    -200.0°C~800.0°C0.1°C

    -200.0~0.0℃

    0.0~400.0℃

    400.0~800.0℃

    0.5℃

    0.7℃

    0.8℃


    Use Pt (385) temperature scale

    2W/3W/4W measurement

    500Ω~1mA excitation

    5KΩ~0.1mA excitation

    Open circuit voltage: Approximately 2.5V

    Errors introduced by 2W/3W measurement lead resistance mismatch are not included in accuracy

    Sensor inaccuracy not included in accuracy

    The effect of thermoelectric potential is not included in the accuracy

    Pt200

    385

    -200.0°C~630.0°C

    -200.0~100.0℃

    100.0~300.0℃

    300.0~630.0℃

    0.8℃

    0.9℃

    1.0℃

    Pt500

    385

    -200.0°C~630.0°C

    -200.0~100.0℃

    100.0~300.0℃

    300.0~630.0℃

    0.4℃

    0.5℃

    0.7℃

    Pt1000

    385

    -200.0°C~630.0°C

    -200.0~100.0℃

    100.0~300.0℃

    300.0~630.0℃

    0.3℃

    0.5℃

    0.7℃

    Cu50-50.0°C~150.0°C-50.0~150.0℃0.7℃
    Continuity detection500Ω≤ 50Ω will sound0.01ΩApproximately 1mA excitation

    Loop power supply

    LOOP

    24 V10%
