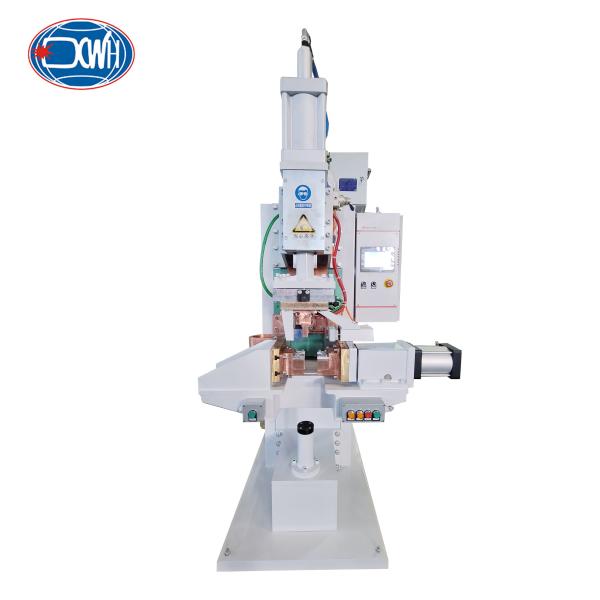

Point 100Kva Stationary Spot Welder Resistance Welding Machine For
Shock Absorber
Product Introduction:
The projection welding machine is designed for welding shock
absorber oil storage cylinder convex ring.Mainly composed of main
frame, pneumatic transmission mechanism, horizontal welding
mechanism, support components, secondary circuit, welding
transformer, welding controller, water and gas circuit system and
other components.
Welding Advantages:
1.The welding machine features a unique structural design, with its
body engineered for impact resistance, shock absorption, and high
rigidity. Precision mechanical machining ensures the installation
and load-bearing strength of all components. The internal frame is
reinforced with multiple welded ribs to enhance structural
stability, minimizing deformation during welding. This guarantees
both welding consistency and operator safety.
2.No need for filler metals such as welding wires and rods, as well
as welding consumables such as chlorine, ethylene, hydrogen, etc.,
resulting in low welding costs.
3.Simple operation, easy to achieve mechanization and automation,
low requirements for worker proficiency, and low labor intensity.
4.High productivity, low noise, and no harmful gases.
5.Can be used for convex welding of hoop rings.
Technical Parameters:
| Items Models | DN(B)-100 | DN(B)-160 | DN(B)-200 | DN(B)-250 |
| Rated power (KVA) | 100 | 160 | 200 | 250 |
| Power input(V) | 3φAC 380V | 3φAC 380V | 3φAC 380V | 3φAC 380V |
| Max. short circuit current (KA) | 30 | 35 | 40 | 45 |
| Duty cycle(%) | 50 | 50 | 50 | 50 |
| Max. force(N) | 6000 | 6000 | 10000 | 15000 |
| Electrode length( MM) | 450 | 450 | 450 | 500 |
| Working stroke( MM) | 80 | 80 | 80 | 80 |
| Cooling consumption(L/min) | 20 | 20 | 20 | 20 |
| Max. welding capacity(MM) | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 6.0+6.0
|
General Structures:
Detailed Images:
The Upper Electrode: The upper electrode is pressurized with an auxiliary cylinder,
making stroke adjustment convenient and precise, allowing for
continuous adjustment of the workpiece operation stroke.
Gas Storage Tank: The spare dedicated gas storage tank for welding machines is
beneficial in reducing welding pressure fluctuations and ensuring
stable welding force.
Production Line:
Application:
FAQ:
1. When can you arrange shippment?
The shippment is 15 days after getting deopsit, but customized
machines should be more than 25 days.
2.Do you inspect the finished products?
Yes, each step of production products will be came out inspection
by QC department before shipping.
3.Are you factory?
Yes, we are factory, all machine is made by ourself and we can
provide customize service according to your requirement.
4.How to buy your Spot Welder?
Please send us inquiry to our email, and we will give you a PI to
send us payment.
5. How to contact you?
You can send a mail for us and call us.
6.How will you deliver my goods to me?
We always ship by air and sea in the mean time.
7.How about your transport packing? Is it possible to damage the
machine during the transportation?
We have rich experience on international transportation. All the
packing are extra thickness carton filling with protective PE foam
and waterproof membrane. No damage happened during transportation
until now.
8.What kind of payment do you accept?
T/T, Western Union, PayPal, .L/C, D/A, etc.
