Large Industrial Ceiling Fans SFFCA73 24FT
Product Description:

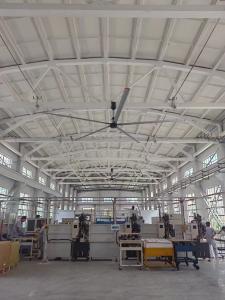

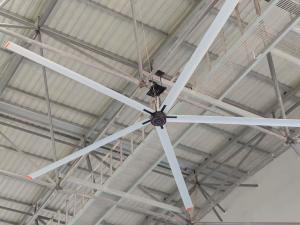

The PMSM High Volume Low Speed Industrial Fans (PMSM Series HVLS
Industrial Fans) are designed to provide efficient and powerful air
circulation for large spaces such as warehouses, factories, and
gymnasiums. These industrial fans are equipped with high-quality
aluminum alloy blades and a sturdy steel hub, ensuring durability
and optimal performance.
Features:
1. Lower noise level
2. Wider blades
3. Higher air volume
4. More energy efficient
5. Improved air circulation and distribution
Technical Parameters:
DIAMETER | 8ft(2.5m) | 12ft(3.8m) | 16ft(5.0m) | 20ft(6.2m) | 24ft(7.3m) |
MODEL | SFFCA25 | SFFCA38 | SFFCA50 | SFFCA62 | SFFCA73 |
AIR VOLUME | 6500m³/min | 8600m³/min | 13050m³/min | 14100m³/min | 15850m³/min |
MAXIMUM SPEED | 140RPM | 100RPM | 70RPM | 60RPM | 55RPM |
WEIGHT | 35Kg | 51Kg | 75Kg | 90Kg | 127Kg |
MOTOR POWER | 0.3kw | 0.4kw | 1.1kw | 1.1kw | 1.5kw |
FULL LOAD CURRENT | 1.8AMPS/220V | 2.0Amps/380v 2.3Amps/220v | 2.4Amps/380v 3.2Amps/220v | 3.0Amps/380v 3.5Amps/220v | 3.5Amps/380v 5.5Amps/220v |
Basic technical parameters: Model SFFCA73 (PMSM SERIES)
| No. | Main Configuration | Description | Photo |
| 1 | Motor | 1. Industry's top PMSM motor; Power: 1.5kw; Insulation class: F,
50/60HZ; 2. Energy efficiency rating IE2; Operating noise less than 40dB; 3. No gear box, no oil change, truly maintenance-free; |
|

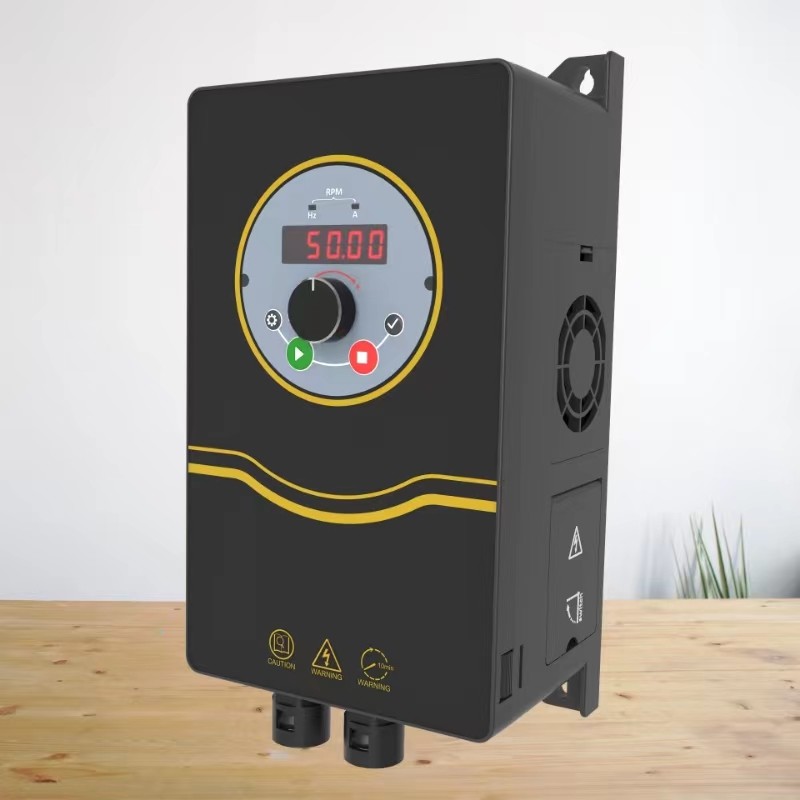

| 2 | Electrical control system | Built-in safety protection module, Control system: Built-in safety
protection module, automatically cut off the output in the event of
an accident. |
|
| 3 | Blades | Our blade is made of 6063T5 special high-strength aviation
magnesium-aluminum alloy material, which is extruded into one
piece. |
|
Applications:
✔ Industrial
✔ Commercial
✔ Agricultural
Support and Services:
The Product Technical Support and Services for the PMSM Series HVLS
Industrial Fans include:
- Maintenance recommendations to keep the fan running efficiently
and prolong its lifespan.
- Warranty support to address any defects or malfunctions covered
under the product warranty.
Packing and Shipping:
Each fan is securely wrapped and placed in a sturdy wooden box with
ample cushioning material to prevent any damage during transit, and
a set of big fans is composed of a square box and a long box.
FAQ:
Q: Are you factory or trading company?
A: We are factory which established more than 12 years.
Q: How is your motor’s quality compared with others?
A: High efficiency (85%~89%) is our strength.
Low repair rate (less than 0.08%).
All the motors have passed ISO9000, CE.
Q: What is your delivery time?A: Usually we have stock, delivery time within 7 working days.If there is customized requirement, time is negotiable.Q: What other services can you provide?A: Accepted delivery terms: FOB,CFR,CIF,EXW,DDP,DDU.Accepted payment type: T/T, L/C;
