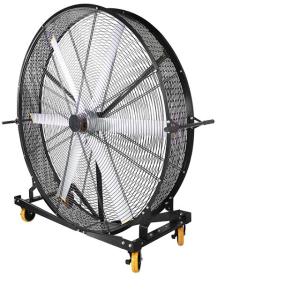

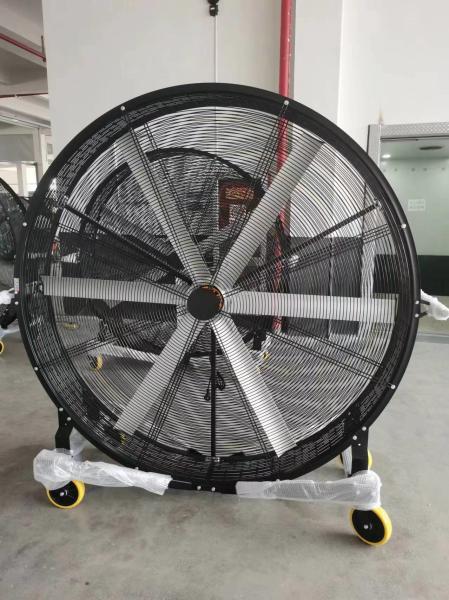

6ft Wheeled Mobile Industrial Fan Large Free Standing Large Fan
Product Description:
The whole big movable fan is made of Permanent magnet synchronous
motor , blades, controller,bear and other spare parts.
Features:
1. Super large air volume: Ultra-long air blowing, the effective
distance is more than 30m;
2. Move easily: Designed with 4 wheels, the fan is able to move
everywhere easily;
3. Energy saving: With only 0.5KW power, very low energy
comsuption;
4. Stepless Speed Control: PMSM motor driving fan blade, VFD
stepless peed control, easy to operate;
5. Waterproof/Dustproof: Protection level is IP55, waterproof in
overall.
Technical Parameters:
| Model | Voltage | Power | Diameter | RPM | Air Volume | Noise Level | Blades Qty | Weight |
XM20 | 220V | 0.5kw | 2m | 280RPM | 2355m³/min | ≤65 | 5/6 pcs | 172KGS |
XM15 | 220V | 0.5kw | 1.5m | 300RPM | 1588m³/min | ≤65 | 5 pcs | 140KGS |
Applications:

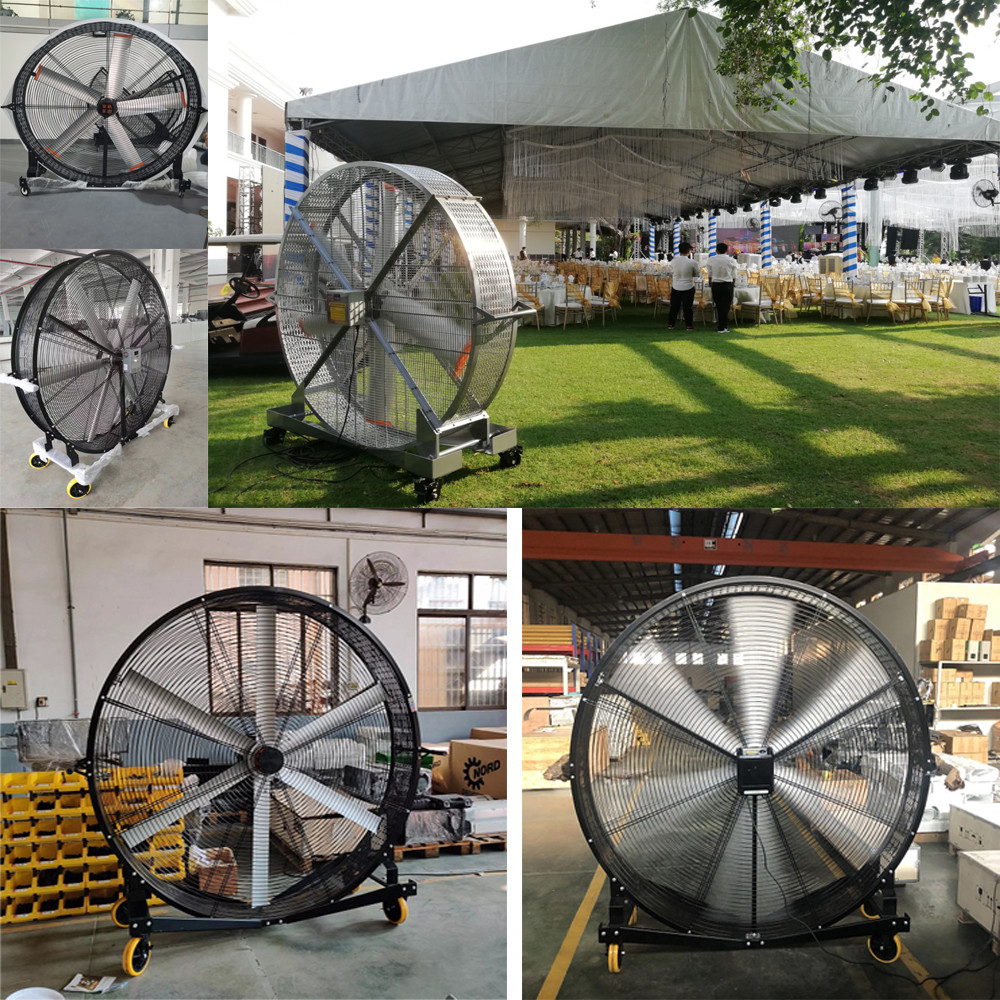

Our XM Mobile fans are widely used in fitness center, outdoor
wedding venues, industrial factory, logistics warehousing, waiting
room, exhibition hall, physical education hall and other large
space places,as a new type of ceiling fan space ventilation,
personnel cooling .It can push a large amount of airflow to the
ground, forming a certain height of the moving airflow layer, thus
contributing to the overall air circulation; Like the natural
breeze system,enjoy the intimate experience of natural wind.
Packing and Shipping:
Wooden Box / or by your requirements :
| Mobile Fans Package Size (Unit : mm) |
| Model | A | B | C | D |
| XM20 | 2230 | 770 | 2130 | 310 |
| XM15 | 1730 | 720 | 1650 | 310 |
FAQ:
Q: Are you factory or trading company?
A: We are factory which established more than 12 years.
Q: Where does your fan use in?
A: Ths fan is widely used in fitness center, outdoor wedding venues, industrial factory etc.
Q: Can you provide customized logo?
A: Yes, clients’ own logo or branding words can be customized on the
motor.
Q: What is the minimum order quantity for the HVLS Industrial Fan?
A: The minimum order quantity is 10 sets.
Q: What is your delivery time?A: Usually we have stock, delivery time within 7 working days.If there is customized requirement, time is negotiable.Q: What other services can you provide?A: Accepted delivery terms: FOB,CFR,CIF,EXW,DDP,DDU.Accepted payment type: T/T, L/C;
