    GMP Pharma Air Shower | 304 Steel & Extra-Large Design

    Ask Lasest Price
    Brand Name : MRJH
    Model Number : MRJH - 1240X3Q304
    Certification : ISO 14644、CE、GMP
    Price : Detailed discussion
    Delivery Time : 7-15 days
    • Product Details
    • Company Profile

    GMP Pharma Air Shower | 304 Steel & Extra-Large Design

    GMP Pharma Air Shower | 304 Steel & Extra-Large Design


    The Air Shower is a critical personnel decontamination system designed for cleanroom entry/exit zones, ensuring compliance with ISO 14644-1 standards. Ideal for industries such as pharmaceuticals, electronics, and biomedical research, it integrates full 304 stainless steel construction, deluxe single door with glass window, and double-sided air shower with 36 adjustable stainless steel nozzles for rapid particulate removal. Equipped with a microcomputer control system, dual-door electronic interlock, and triple filtration (3 pre-filters + 3 HEPA filters), it ensures contamination-free operation with 13–25 m/s nozzle wind speed and <4.5 kW total power consumption.


    Parameter Name

    parameter
    MaterialFull 304 stainless steel
    Door System304 stainless steel deluxe single door with glass window
    Air Shower SystemDouble-sided blowing with 36 stainless steel adjustable nozzles
    Control SystemMicrocomputer control, voice prompts, photoelectric sensors, dual-door electronic interlock
    DisplayLED display, adjustable shower time (0–99 seconds, factory default: 10s)
    Fan System3 sets of dedicated air shower fans, nozzle outlet wind speed: 13–25 m/s
    Filtration3 pre-filters + 3 high-efficiency filters (99.99% efficiency @ 0.5µm)
    LightingEnergy-saving ceiling light: 220V/60Hz, 21W*3
    Power SupplyFan: 220V/60Hz, 1500W × 3 sets; Total power: <4.5 kW
    Weight<600 kg

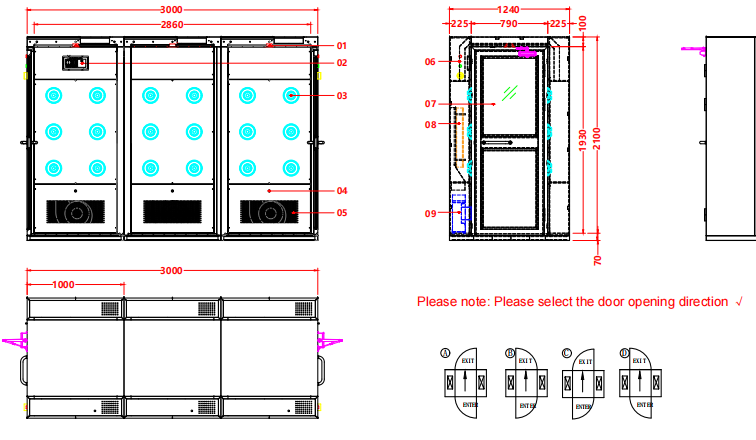

    External DimensionsW1240 × D3000 × H2100 (mm)
    Air Shower AreaW790 × D2860 × H1930 (mm)
    CertificationsISO 9001

    Key Features

    1.Full 304 Stainless Steel Construction: Durable and corrosion-resistant for cleanroom compatibility.

    2.Deluxe Single Door: Glass window for visibility, dual-door electronic interlock to prevent cross-contamination.

    3.High-Efficiency Double-Sided Shower: 36 adjustable nozzles with 13–25 m/s wind speed for rapid dust removal.

    4.Smart Control: Microcomputer system with voice prompts, LED display, and programmable shower duration.

    5.Advanced Filtration: 3 pre-filters + 3 HEPA filters ensure 99.99% efficiency @ 0.5µm.

    6.Energy-Saving Design: Three 21W ceiling lights and 220V/60Hz fan system for optimized power usage.

    Application Scenarios

    Personnel decontamination in ISO-classified cleanrooms.

    Entry/exit zones for high-precision manufacturing facilities.

    Laboratories requiring strict particulate control.


    Q1: How does this GMP Pharma Air Shower ensure compliance with strict pharmaceutical cleanliness standards?
    A1: This air shower is designed with a 304 stainless steel construction, offering corrosion resistance and a smooth, non-porous surface that minimizes particle buildup—critical for GMP compliance. It features HEPA filters with ≥99.99% efficiency at capturing particles ≥0.3μm, ensuring Class 100 cleanroom standards. The dual airflow system delivers high-velocity air (20–28 m/s) from multiple nozzles, thoroughly removing contaminants from personnel or equipment. Automatic door interlocks prevent cross-contamination, while optional UV-C sterilization further addresses microbial control needs, making it suitable for sterile pharmaceutical environments.

    Q2: Can the extra-large design accommodate heavy traffic or large equipment without compromising performance?
    A2: Yes. The extra-large configuration is engineered to handle high traffic or bulky items, such as trolleys or machinery, while maintaining efficient particle removal. Its modular design allows for easy disassembly and transport through standard doorways, simplifying installation in space-constrained pharmaceutical facilities. The spacious interior ensures unrestricted movement, and the multi-nozzle setup provides 360° coverage, even for oversized equipment. This design balances capacity with performance, reducing bottlenecks in production lines.

    Q3: How does the 304 stainless steel construction contribute to long-term durability and cost efficiency?
    A3: 304 stainless steel is inherently resistant to chemicals and moisture, making it ideal for pharmaceutical settings where corrosion risks are high. Its robust build ensures a lifespan of 10+ years with minimal maintenance. The material’s smooth finish also simplifies cleaning and prevents dust accumulation, reducing downtime for sanitization. Additionally, the air shower’s filter system is designed for easy replacement—pre-filters last 1–6 months, and HEPA filters 6–12 months—lowering long-term operational costs while sustaining GMP-compliant performance.
