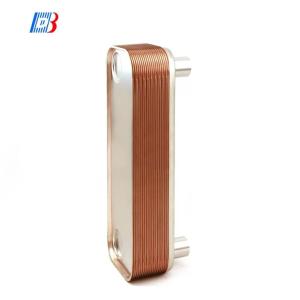

High Quality Plate Type of Heat Exchanger Compact Brazed Plate Heat
Exchanger
Description
Brazed plate heat exchanger is a kind of efficient, compact and
lightweight heat exchange equipment, which is widely used in many
industries. It realizes heat transfer and exchange by using welded
and sealed contact between plates.

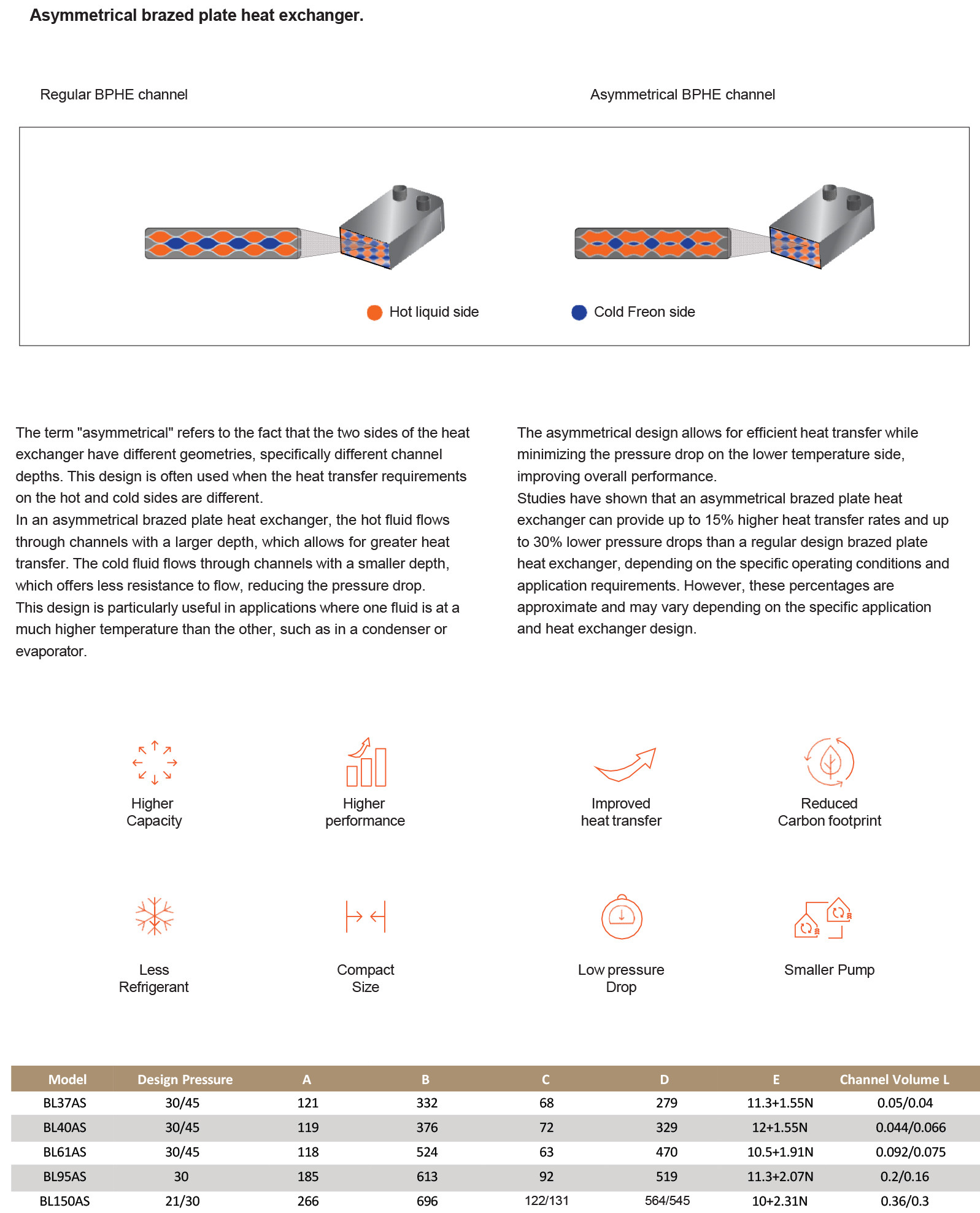

First, the working principle
The working principle of brazed plate heat exchanger is mainly
based on the heat transfer mechanism between the heat exchange
plates. The equipment consists of a number of parallel sheets,
which are connected by a brazing process. The heat exchange fluid
flows through a channel on one side, while the coolant flows
through a channel on the other side. When the two liquids meet at
the contact point of the plate, heat is transferred from the
high-temperature liquid to the low-temperature liquid through the
plate, completing the transfer and exchange of heat.
Second, structural characteristics
1. Compact design: Brazed plate heat exchanger uses compact design,
making it occupy a very small space, suitable for limited space
occasions. Compared with traditional heat exchange equipment, it is
lighter in size and weight, and easier to install and maintain.
2. Efficient heat transfer: Due to the welding contact between the
plate and the plate, higher heat transfer efficiency can be
achieved. The brazed plate heat exchanger has higher thermal
conductivity and lower thermal resistance, thus improving the
energy efficiency of the heat exchanger.
3. Strong pressure resistance: The plate heat exchanger connected
by the brazing process has strong pressure resistance and can
withstand high pressure and high temperature environment.
| Model | BL26 |
| Width, A [mm] | 111 |
| Height, B [mm] | 310 |
| Length, E [mm] | 10+2.36n |
| Horizontal port distance, C [mm] | 50 |
| Vertical port distance, D [mm] | 250 |
| Max pressure [Mpa] | 3 |
| Max flowrate [M3/h] | 8.1 |
| Weight [kg] | 1.3+0.12n |
Model
BL1
| Model | BL14 | BL20 | BL26 | BL26C | BL50 | BL95 |
| Width, A [mm] | 78 | 76 | 111 | 124 | 111 | 191 |
| Height, B [mm] | 206 | 310 | 310 | 304 | 525 | 616 |
| Length, E [mm] | 9+2.3n | 9+2.3n | 10+2.36n | 13+2.4n | 10+2.35n | 11+2.35n |
| Horizontal port distance, C [mm] | 42 | 42 | 50 | 70 | 50 | 92 |
| Vertical port distance, D [mm] | 172 | 282 | 250 | 250 | 466 | 519 |
| Max pressure [Mpa] | 3 | 3 | 3 | 3/4.5 | 3/4.5 | 3/4.5 |
| Max flowrate [M3/h] | 3.6 | 3.6 | 8.1 | 8.1 | 12.7 | 39 |
| Weight [kg] | 0.6+0.06n | 1.0+0.08n | 1.3+0.12n | 2.2+0.16n | 2.6+0.19n | 7.8+0.36n |
| Model | BL120 | BL190 | BL200 | BL1400 | BL100 * | BL200 * |
| Width, A [mm] | 246 | 307 | 321 | 429 | 248 | 322 |
| Height, B [mm] | 528 | 696 | 738 | 1398 | 495 | 739 |
| Length, E [mm] | 13+2.36n | 13+2.75n | 13+2.7n | 22+2.78n | 10+2.15n | 13+2.55n |
| Horizontal port distance, C [mm] | 174 | 179 | 188 | 220 | 157 | 205.2 |
| Vertical port distance, D [mm] | 456 | 567 | 603 | 1190 | 405 | 631 |
| Max pressure [Mpa] | 3 | 3 | 2.1 | 1.5 | 3/4.5 | 3/4.5 |
| Max flowrate [M3/h] | 42 | 100 | 100 | 300 | 42 | 100 |
| Weight [kg] | 7.2+0.52n | 12.5+0.72n | 13+0.75n | 31.8+1.73n | 6.5+0.37n | 13+0.78n |
