    Factory Direct Sale Plate Rubber Testing Machine In Russian Language

    Model: GC-GREE-30


    Product Description

    This series of plate vulcanizing machine is used to press molding all kinds of rubber model products and non-model products of the main equipment, can also be used to press all kinds of thermosetting plastics and foaming rubber and plastic products. It has independent power mechanism and electrical system, and adopts centralized control by push button. The working pressure and heating temperature can be adjusted within a certain range. This model is divided into manual and semi-automatic two.

    Heating Plate Features

    Adopting imported high temperature resistant steel, the surface is treated by deep carbonisation, hard chrome plating and other processes, which has the characteristics of fast heat transfer, fast cooling, corrosion resistance, high hardness, no deformation and so on. Back built-in heater and thermostat, high power, fast warming, sensitive temperature measurement, uniformity, small temperature error range.

    Product Parameters
    ModelGC-CREE-30
    Pressure capacity30 Ton
    Pressure gaugeDual node pressure adjustable, pressure adjustment accuracy of 10%
    Platen size (mm metric)250*250/300*300/350*350/400*400/450*450/500*500/600*600mm (opertional)
    Hot platen materialHigh temperature resistant imported steel plate, surface carbide quenching, special treatment of fast heat conduction, pressure parallel non-deformation, wear-resistant.
    Platen hardness50~60HRC
    Platen Flatness0.03mm
    Platen Flatness≤0.03mm
    Platen flatness and parallelism≤0.16mm
    Temperature rangeNormal temperature -250ºC [can be customized up to 500ºC].
    Temperature uniformity2.5ºC [the larger the platen the higher the temperature the worse the temperature uniformity]
    Temperature controllerPrecision module with PLC touch screen control, display inside the touch screen, numerical value display.
    Temperature control methodTemperature control motherboard precision control, self-tuning with high-precision sensors, temperature display accuracy: ± 1.0 ºC.
    TimerSetting display in touch panel, time range 0.1S~99min~9.9hr
    HeaterHeating mold built-in cylindrical [according to the platen area configuration of different power packaging platen temperature uniformity, not the same power]
    Rising timeNormal temperature~160ºC about 15mins
    Two hot platesThe hot plate can be set to control the temperature separately
    Heating methodelectrical heating
    Cooling methodwater cooling
    Hydraulic systemAdopt CREE.6 hydraulic flow closed-loop control system, oil pump drive high-performance electro-hydraulic with high-precision non-resistance cylinder piston execution rate control mode, with pressure automatic compensation function. Once pressurized automatically make up the pressure, load force is strong, lifting and lowering smoothly; automatic pressurization, pressure preservation, unpressurization.
    Cylinder StrokeMax 150mm [customizable
    Cylinder speed11mm/s
    Pressure gauge0~200kg/sq.cm
    Mold opening methodFully automatic rise and fall (with manual-automatic dual function)
    Safety deviceSafety guards, safety doors.
    Detailed Photos

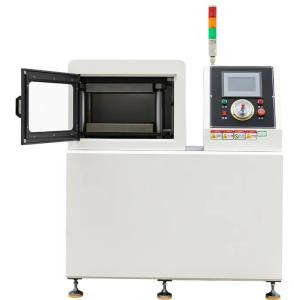

    Quality Factory Direct Sale Plate Rubber Testing Machine In Russian Language for sale
