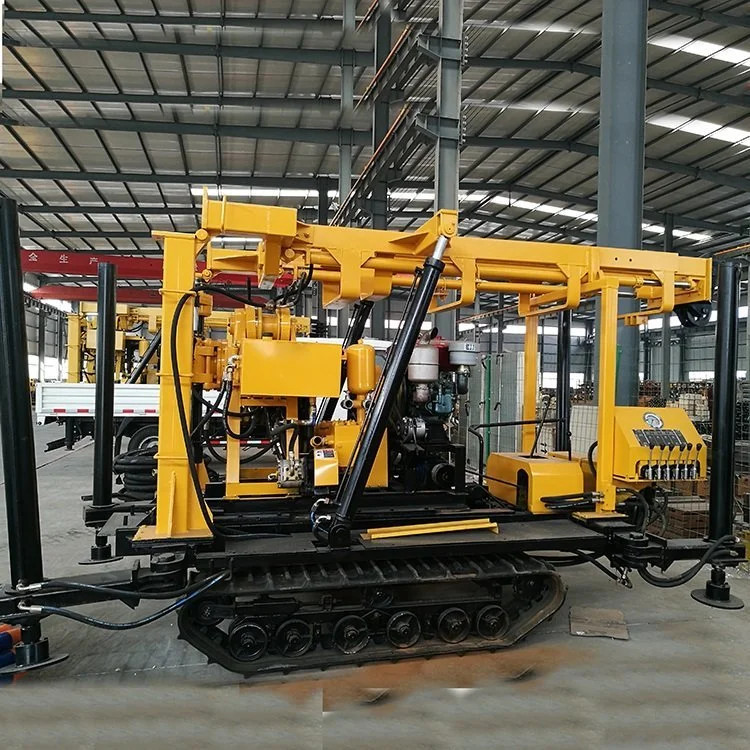

150Type Crawler Mounted Geotechnical Investigation/Soil Testing
Core Drilling Rig with Hydraulic Drill Tower
1. Applications of XY-150 hydraulic core drilling rig
XY-150 core drilling rig is XY-1A core drilling rig is mainly used
for geological survey exploration, geophysical exploration,
foundation investigation of roads and high-rise buildings, water
wells, blast holes and other drilling projects.
2. Parameters of XY-150 hydraulic core drilling rig
| Model | XY-150 |
| Drilling depth(m) | 150 |
| Maximum opening diameter(mm) | 219 |
| The final hole diameter(mm) | 73 |
| Rod diameter(mm) | 42/50 |
| Spindle speed (r/min) | 140/295/470/790/1010 |
| Spindle stroke(mm) | 450 |
| Hoisting capacity (kn) | 14 |
| Steel wire diameter(mm) | 9.3 |
| Maximum pressure (mpa) | 1.2 |
| Working pressure (mpa) | 0.7 |
| displacement(l/min) | 150 |
| Hydraulic pump pressure (mpa) | 1.2 |
| Hydraulic pump rotation speed (r/min) | 1800 |
| Matched driving power (diesel engine and motor) | S1105 diesel engine and 11kw motor |
Note: The product is continuously improved, and subject to change
without notice, please refer to the actual product.
FAQ:
- ,1. What are our payment methods?
100% prepayment for small sample orders., Prepay 30% deposit for
bulk products and pay the remaining 70% before shipment.
2. How to transport products?
Express delivery, air freight, sea freight, train, etc.
3. How to place an order?
Please provide us with the required specifications, models, and
quantities, and we will create a PI to confirm the order details.
Once we have confirmed everything, we can arrange for payment and
finally ship within the time frame we have specified.
4. How to inspect the goods?
Support customers to come to the factory for on-site inspection,
support customers to designate third-party companies for
inspection, and support video inspection.
5. Can you provide us with the necessary documents for customs
clearance?
Yes, of course. We will send you commercial invoices, sales
contracts, packing lists, and bills of lading (FOB or CFR, CIF
terms).
6. After sales service
The product comes with an English manual and spare parts. We
provide 24-hour service through online chat and phone, lifetime
free technical support, and overseas service: if you need it, we
can dispatch engineers to provide on-site service.
