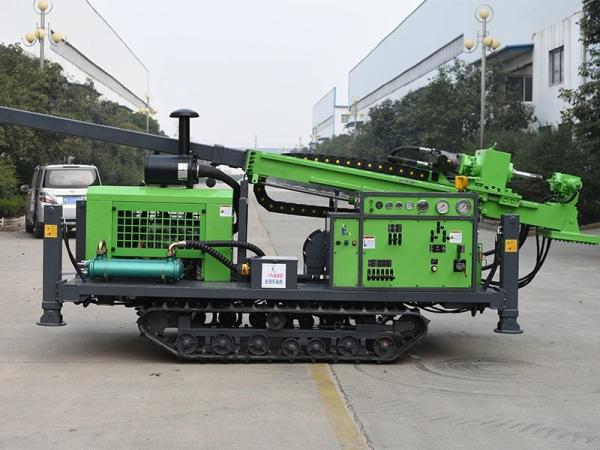

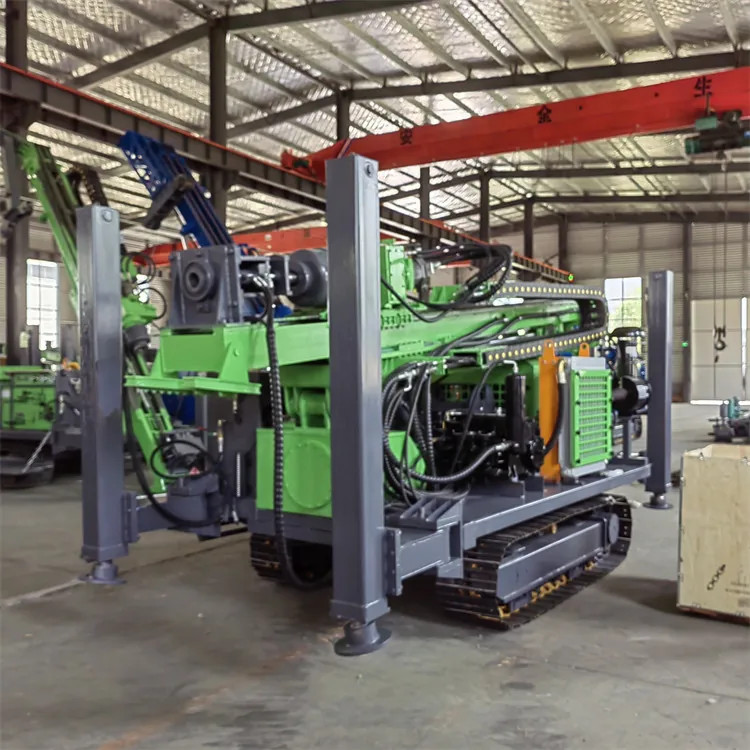

The rigs adopts full hydraulic drive, the power head rotation is
driven by axial piston pump and oblique piston motor, and the
mechanical two gears are adjusted without pole speed, advanced
structure. The power head adopts the cylinder chain double speed
feeding mechanism, the movement is stable and reliable, with the
power head side translation mechanism, the mast adopts the cylinder
take-off and fall can be integrated slip, and can be drilled in the
range of 0-90°. The hydraulic system adopts load sensitive control,
high working efficiency and large torque.
Drilling rig operating procedures and skills: how to use the
drilling rig correctly
August 25th
1, Drilling rig operating procedures
1. Safe operation of drilling rig:
① Before each use of the drilling rig, check whether the wires are
damaged, whether the motor is normal, and whether the drill bit is
firmly fixed.
② During operation, safety equipment such as helmets, gloves, and
goggles should be worn to ensure the safety of personnel.
③ During operation, one should remain sober and avoid behaviors
that expose individuals, such as drinking alcohol, smoking, or
playing with mobile phones.
④ Appropriate coolant should be used during drilling to protect the
drill bit and workpiece from thermal deformation.
⑤ After the drilling is completed, the power supply of the drilling
rig should be turned off, and damaged wires, motors, and other
aging equipment should not be reused.
2. Common troubleshooting of drilling rigs:
① Motor cannot start: Check if the power is connected and if the
wires are damaged.
② Drill bit is prone to breakage: Check if the drill bit is worn,
if the protective sheath is intact, or it may be due to factors
such as material processing thickness.
③ The drill bit is stuck and not turning: Check if the motor is
working properly and if it needs timely maintenance such as adding
lubricant.
④ Damage caused by drill bit fracture requiring secondary
processing: Check the quality, diameter, length, applicable
materials, drilling position, etc. of the drill bit.
3. Maintenance and upkeep of drilling rig:
① After a period of use, the drilling equipment should be cleaned,
oiled, and maintained to ensure its normal operation.
② During use, regularly check the condition of cables or wires, and
replace them promptly if any damage is found.
③ Before use, the drill bit should be dry ground with the workpiece
and regularly lubricated and protected to extend its service life.
④ When the drilling rig is not in use, it should be placed in a dry
and sunny place to avoid moisture and damage.
2, Drilling rig operation skills
1. Choose a suitable drill bit:
The selection of drill bits is mainly influenced by various factors
such as material hardness, aperture size, and working area. In
addition, different brands of drill bits may be suitable for
different workpieces, so when purchasing drill bits, one should
choose the appropriate brand and specifications according to their
own work needs.
2. Pay attention to processing speed:
The processing speed cannot be too fast or too slow. Too fast can
lead to uneven drilling depth, while too slow can result in low
processing efficiency, wasting time and resources.
3. Pay attention to the use of coolant:
When drilling, an appropriate amount of coolant should be used to
help dissipate heat from the drill bit; At the same time, it can
also avoid problems such as metal debris, oil stains, burrs, etc.,
and improve processing efficiency.
4. Avoid excessive heat:
Due to the influence of high temperature heat during drilling, the
drill bit may experience cracks, deformations, etc., so it is
necessary to regularly cool and protect the drill bit.
5. Pay attention to the processing environment:
When drilling, the working environment should be kept clean and
hygienic to avoid damage to the machine from metal debris, chips,
oil stains, burrs, and other pollutants, as well as injury to
operators.
This article mainly introduces the operating procedures and related
skills of drilling rigs, including safe operation of drilling rigs,
common fault handling, maintenance, etc. During the use of the
drilling rig, it is necessary to follow the regulations and master
the relevant operational skills. I hope this article can provide
readers with help to ensure the safe and efficient use of your
drilling rig.
