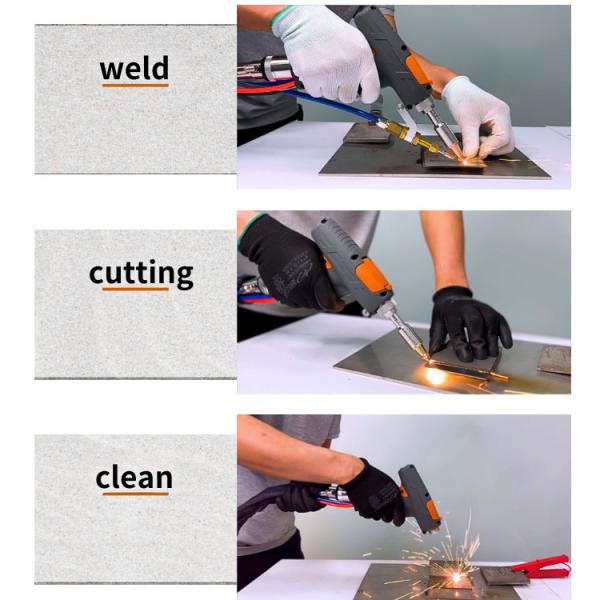

RAYCUS CW Fiber Laser Laser Welders 4 Functions 1500W 2000W 3000W 4 in 1 Handheld Laser Cutting Cleaning Welding Machine

Ask Lasest Price
Price :	CN¥2,867.44/pieces >=1 pieces

Add to Cart

Laser welding machine parameters
Model	HM1000	HM1500	HM2000	HM3000
Laser Source	Everfoton/Raycus/MAX/BWT	Everfoton/Raycus/MAX/BWT	Everfoton/Raycus/MAX/BWT	Everfoton/Raycus/MAX/BWT
Laser Power	1000w	1500w	2000w	3000w
Laser Source Type	CW Fiber Laser	CW Fiber Laser	CW Fiber Laser	CW Fiber Laser
Power Adjustment Range	10-100%	10-100%	10-100%	10-100%
Laser Wavelength	1080±10nm	1080±10nm	1080±10nm	1080±10nm
Modulation Frequency	20khz	20khz	5khz	5khz
Laser Welding Head	Super/Relfar	Super/Relfar	Super/Relfar	Super/Relfar
Welding Speed	0-120mm/s	0-120mm/s	0-150mm/s	0-150mm/s
Scan Width Adjustable	0.1~6mm	0.1~6mm	0.1~6mm	0.1~6mm
Gas Requirements	10-15L/min(Ar/N2)	10-15L/min(Ar/N2)	10-15L/min(Ar/N2)	10-15L/min(Ar/N2)
Cooling Method	Air Cooling	Water Cooling	Water Cooling	Water Cooling
Optical Cable Length	7m/10m/15m	7m/10m/15m	7m/10m/15m	7m/10m/15m
Operating Voltage	AC220V 50/60Hz	AC220V 50/60Hz	AC220V 50/60Hz	AC380V 50/60Hz
Ambient Temperature	10~45 ℃	10~45 ℃	10~45 ℃	10~45 ℃
Environment Humidity	10%-85%	10%-85%	10%-85%	10%-85%
Energy Consumption	3.8KW	5.5KW	7.0KW	10KW
Machine Size	1000mm650mm720mm	1000mm650mm720mm	1000mm650mm720mm	1140mm750mm1050mm
Net Weight	105kg	110kg	120kg	175kg
Wire Feeding Diameter	0.8mm/1.0mm/1.2mm/1.6mm	0.8mm/1.0mm/1.2mm/1.6mm	0.8mm/1.0mm/1.2mm/1.6mm/2.0mm	0.8mm/1.0mm/1.2mm/1.6mm/2.0mm

IKO Guided Portable Desktop Silver Gold YAG Pulse 100W Mini CCD Jewelry Welding Fiber Laser Welder Machine by RAYCUS
