Four-way Shuttle Cart ASRS
——
Four-way shuttle is an intelligent handling device that can achieve
both vertical and horizontal walking. It has high flexibility, can
change the working lanes arbitrarily, and adjust the storage
capacity by increasing or decreasing the number of shuttles. If
necessary, the peak value of the system can be adjusted by setting
up a dispatching method of the operating fleet to solve the
bottleneck of the in and out operation.
Four-way shuttle can be replaced with each other. When a certain
shuttle or elevator fails, other shuttles or elevators can be
dispatched through the dispatching system to continue to complete
the operation, and the storage capacity is not affected. The
four-way shuttle is suitable for both low-flow and high-density
storage and high-flow and high-density storage. It can maximize
efficiency, cost, and resources.
Automated Storage and Retrieval System · Warehouse Storage Rack ·
Made In China
Four Way Pallet Shuttle Specification
—
| ITEM | Shuttle Body (L*W*H ) | Pallet Dimension |
| Standard Shuttle Dimension | 1100L*980W*150Hmm | 1200W*1000D |
| 1200L*980W*150Hmm | 1200W*1100D |
| 1300L*980W*150Hmm | 1200W*1200D |
| Self Weight | 450kg | |
| Loading Capacity | 1000kg | |
| Lifting Distance | 40mm, ≤5s | |
| Working Temperature | 0-40ºC | |
| Communication Mode | Wireless AP | |
| Power Supply | lithium battery, 48V36 /45 /60AH | ≥8H continuous work |
| Driving Speed (empty) | 1.5m/s | |
| Driving Speed (load) | 1.0m/s | |
| Acceleration | 0.3m/S2 | |
| Battery Service Life | 2000 charging times | 1.5-2H charging time |
| Addressing | Laser, ±2mm | |
Automated Storage and Retrieval System · Warehouse Storage Rack ·
Made In China
Characteristics
—
- Shelf height can reach 10 meters or higher, reducing land
occupation area
- Reduce warehouse land by more than 50% and reduce labor costs by
more than 30%
- Seamless data integration with ERP system and real-time intelligent
production scheduling
- Light weight, energy saving and high efficiency
- Flexible storage layout combination method, can realize
non-contiguous floors and multi-area interworking layout
Automated Storage and Retrieval System · Warehouse Storage Rack ·
Made In China

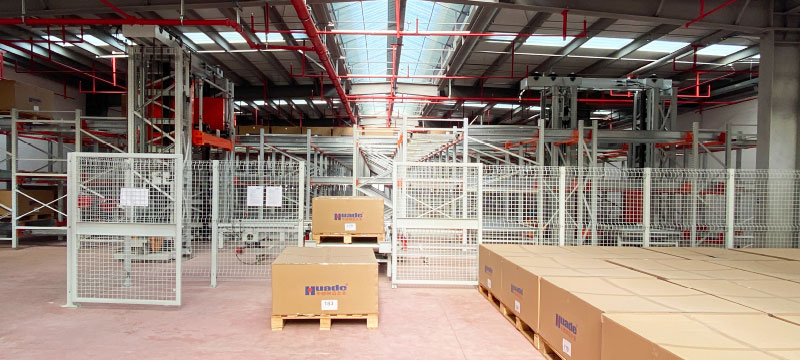

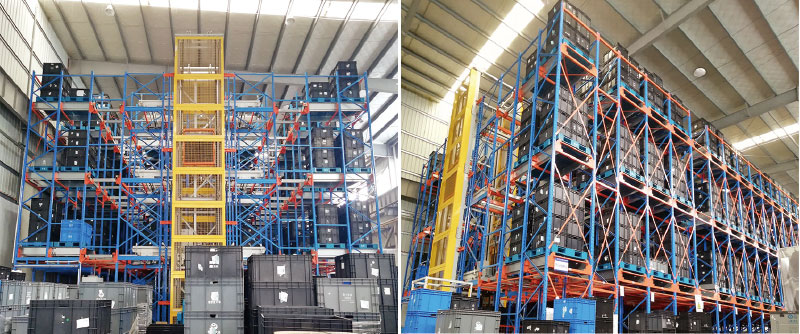

CASE
—
Automated Storage and Retrieval System · Warehouse Storage Rack ·
Made In China
Automated Storage and Retrieval System · Warehouse Storage Rack ·
Made In China
Automated Storage and Retrieval System · Warehouse Storage Rack ·
Made In China
Stacker Crane AS/RS
——
The stacker operates in the horizontal and vertical directions
during the warehouse racking by racking and stacker equipement.
According to the instructions of the computer, the goods carried by
the pallets are stored in the designated goods by the motor-driven
fork. Or remove the goods from the designated pallet location.
■ Product Advantages
Customized according to project production, light, heavy, single
and double deep; complete categories
Representative manufacturer of domestic European structural design,
stable performance of stacker, ensuring long-term reliable
operation
Deepen understanding of customer business needs, focusing on
optimization design
■ Characteristics
Shelf height can reach 40 meters or higher, reducing land
occupation area
Automatic unmanned operation, reducing labor costs
Seamless data integration with ERP system and real-time intelligent
production scheduling
Eliminate the chaos in the warehouse and reduce the difficulty of
management
Automated Storage and Retrieval System · Warehouse Storage Rack ·
Made In China
Ensure the quality of Huayide racking products
—
| 1 | The raw material of the shelf is customized from China's large
steel group of high quality carbon steel, durable and strong, to
ensure the quality of the product from the source. |
| 2 | The shelf welding adopts dioxygen protection welding, the welding
joint has good cracking resistance, small welding deformation,
beautiful forming, and does not need slag cleaning. |
| 3 | Each column and beam of the shelf are designed by professional
personnel with professional technology and cut by professional
equipment, so as to ensure the accurate size of the shelf. |
| 4 | Professional spray before treatment, oil removal, rust removal,
phosphating, powder, and then in high temperature oven baking
molding, wear-resistant, rust proof. |
