36mm Brushless Planetary Gear Motor 24v 12V Brushless Geared Motor With Planetary Gear Box

Name: 36mm Brushless Planetary Gear Motor 24v 12V Brushless Geared Motor With Planetary Gear Box
Brand: Masing Motor
Price: 1 USD

Ask Lasest Price
Brand Name :	Masing Motor
Model Number :	MSPG36BL3640
Certification :	ISO CE ROHS 16949
Price :	Negotiable
Payment Terms :	T/T
Supply Ability :	100000piece/per month
Delivery Time :	3-5 work weeks

Add to Cart

Product Details
Company Profile

36mm Brushless Planetary Gear Motor 24v 12V Brushless Geared Motor With Planetary Gear Box

Title:

36mm 12v Brushless Planetary Gear Motor 24v Brushless Geared Motor With Planetary Gear Box for Robot

Description:

Model: PG36BL3640 Product Name:3640 Brushless DC Planetary Gear Motor
Rated Speed:3rpm-3000RPM or customized
Rotating speed is constant and can be made as you required.
Gearbox Size: φ36mm diameter
Motor type :Brushless Motor & BLDC Motor & Brush Motor
Motor size :φ36mm*L40mm BLDC
Reduction Ratio :1:3.7 to 1:721
Length of Gear box:27mm ,33mm,39.2mm,45.4mm
Suitable to small diameter, low noise and big torque application
Certificates:CE,RoHS,IOS9001,REACH,16949
Motor default direction:CW&CCW available
Working temperature:-40~+60°c
Power: 0.5w-50w Maximum torque: 50KG. cm
Applications:Smart home, robots, office supplies, power tools, medical equipment,precision instruments, automotive electronics,etc.
High Efficiency and Performance: 9v-26v DC planetary Geared Motor offers an efficiency of 90-65%,
We can provide samples for testing.
With stable quality,every product will pass 100% quality inspection before shipping

Key attributes:

Speed(RPM)

3rpm-3000rpm

Continuous Current(A)

20mA-500mA

Efficiency

90%-65%

Warranty

Others

Place of Origin

Guangdong, China

Brand Name

Masing Motor

Model Number

MSPG36BL3640

Use

power tools, automotive,Smart home, robots, office supplies, power tools, medical equipment,precision instruments, automotive electronics

Gearbox Type

φ36mm Planetary gearbox

Torque

0.2NM-4NM

Construction

Permanent Magnet

Commutation

Brushless

Protect Feature

Totally Enclosed

Product Name

BL3640 dc motor planetary gearbox

Reduction Ratio

1:3.7-1:721

Length of Gear box

27mm ,33mm,39.2mm,45.4mm

Gearbox Diameter

φ36mm

Direction of motor

CW&CCW available

Noise

≤55DB

MOQ

1000Pcs

Rated Power

1W-30W

Gear Material

Steel ,copper,Powder metallurgy,plastic

Motor type

BL3640 Brushless motor

Product Photo:

Product Spec:

Micro brushless 2838 DC Planetary Gear Motor Typical Applications:

Smart home, Service robot, office supplies, power tools, medical equipment,precision instruments, automotive electronics

Automatic equipment,Robot mower,Transmission equipment,power tools, automotive

Voltage,ratedtorque,speed,curent,powerand shaftsize can be customizedasrequrement.

Gearbox Data:
Number of Stages	1			2			3			4
Reduction Ratio(K)	3.7/5.18			14/16/19/22/27			50/59/71/82/100/115 /139			189/218/262/304/369/427/516 /596/721
length of Gear box L(mm)	27			33			39.2			45.4
Rated Torque(kg-cm)	1			4			18			35
Transient Torque(kg-cm)	6			10			38			60
Efficiency(%)	90%			81%			73%			65%
Remarks	Output torque =motor torquereduction ratiogear box efficiency Output speed =motor speed/reduction ratio
Motor Data:
Motor Model	Voltage		No Load			At Maximum Efficiency						Stall
	Operating Range	Rated	Current		Speed	Current	Speed	Torque	Power		Efficiency	Current	Torque
			A		rpm	A	rpm	g-cm	W		%	A	g-cm
BL3640***	9~14V	12V	0.56		7930	2.35	6404	270	17.8		63.0	9.87	1404
BL3657***	19~26V	24V	0.20		5600	1.12	4750	484.5	23.6		88.0	6.26	3196

Packaging and delivery:

Packaging Details

Strong Carton 100pcs/box, or as you wish.

Port

Shenzhen/Guangzhou/Shanghai

Selling Units:

Single item

Single package size:

37X27X24cm

Single gross weight:

450g

Supply Ability:

Supply Ability

100000 Piece/Pieces per Month

Lead time:

Quantity (pieces)	1 - 100	101 - 1000	> 1000
Lead time (days)	10	15	To be negotiated

Samples:

Maximum order quantity: 1piece

Sample price:

$25/piece or Negotiable

Certifications:

Factory Show:

Product Classification:

Applications:

Smart home, smart door locks, personal care, artificial intelligence, automobiles, model airplanes, adult products, security, small home appliances, models, power tools, communication equipment, medical devices, health care equipment, toys and fitness equipment and other products.

FAQ

Q1:What's the price?

A1:We're a professional manufacturer So the exact price is based on clients' specifications,such as the speed,voltage etc.

Q2: What's the MOQ?

A2:We try to meet every client's requests and don't want to disappoint our clients.So the MOQ is flexible if the product is not complicated to produce and we are not in a busy season.Kindly chat with our saler to confirm it.

Q3: The logo and the color can be customized?

A3: Yes, we welcome you to sample custom.

Q4: What's the delivery time?

A4:At the first we have an schedule,the earlier you place order,the fater we finish the production.

In the slack season,we can make sure the delivery time is by one month.

In the busy season,we need more than one month if your quantity is large.

The most important,we can provide free overtime prodution if your order is really urgent.

Q5: Can you provide OEM or ODM service?

A5:Yes, OEM and ODM are both welcomed

Q6: Can you send some samples before the order?
A6:Yes of course,we must send the sample to confirm the quality with you first.UPS,TNT,FEDEX or DHL are all available.

Product Tags:

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Send your message to this supplier

*From:
Your email address is incorrect!
To: Masing Motor (Shenzhen) Co., Ltd
*Subject:
Your subject must be between 10-255 characters!
*Message:
For the best results, we recommend including the following details: --Self introduction --Required specifications --Inquire about price/MOQ Your message must be between 20-3,000
Yes! I would like your verified suppliers matching service!

All Categories

36mm Brushless Planetary Gear Motor 24v 12V Brushless Geared Motor With Planetary Gear Box

36mm Brushless Planetary Gear Motor 24v 12V Brushless Geared Motor With Planetary Gear Box

36mm Brushless Planetary Gear Motor 24v 12V Brushless Geared Motor With Planetary Gear Box

Key attributes:

Supply Ability:

Lead time:

36mm Brushless Planetary Gear Motor

Brushless Planetary Gear Motor 24v

12V Brushless Geared Motor

36mm Brushless Planetary Gear Motor 24v 12V Brushless Geared Motor With Planetary Gear Box

You May Like

RS-550/555 With 36mm Plastic Gearbox 12v Dc Planetary Gear Motor For Vacuum Cleaner Robot

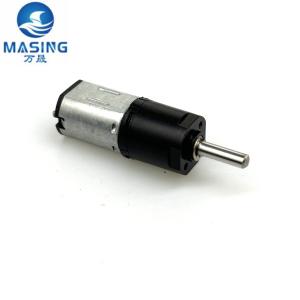

3V 5V Mini Reduction Gear Motor 12mm N20 Gear Motor Planetary Reduction Gearbox Low Noise
