    CNC Lathe CHK46 Gang Type Tool Post Precision Cutting Slant Bed CNC Turning Lathe Machine

    Ask Lasest Price
    Brand Name : SMTCL
    Model Number : CHK46
    Certification : CE ISO certification
    Payment Terms : T/T,L/C,,Western Union
    Supply Ability : 50 sets per month
    Delivery Time : 45-60 days
    • Product Details
    • Company Profile

    CNC Lathe CHK46 Gang Type Tool Post Precision Cutting Slant Bed CNC Turning Lathe Machine

    Product Description:

    CNC Lathe CHK46 Gang Type Tool Post Precision Cutting Slant Bed CNC Turning Lathe Machine
    The CHK46 gang tool lathe showcases remarkable advantages. With a compact and reasonable turret tool layout, the tool changing time is extremely short, significantly improving the processing efficiency. It is equipped with high-precision lead screws and an advanced numerical control system, boasting high positioning accuracy and being able to precisely complete complex machining tasks. The machine bed features outstanding rigidity and strong seismic resistance, ensuring stable processing. It is suitable for a variety of materials, enhancing efficiency and ensuring quality for the machinery manufacturing industry.

    Product Features:

    CHK46 has the following three remarkable features:

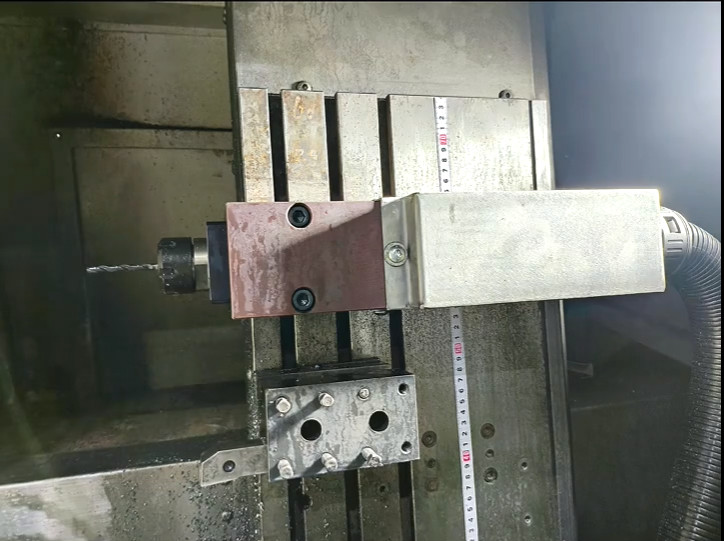

    Firstly, it is equipped with a high-precision gang tool post. Tools can be changed quickly and positioned precisely, which greatly improves the machining efficiency and accuracy.
    Secondly, the machine tool adopts a high-rigidity body design with excellent anti-vibration performance. It can ensure the stability of machining even during high-speed cutting and guarantee the machining quality of workpieces.
    Thirdly, it is equipped with an advanced CNC system. The operation is simple and intuitive, and it can realize the programming of complex processing techniques to meet diverse processing requirements. It is suitable for the efficient production of precision parts.
    Product details:

    Product Paramenters:
    Item
    Unit
    CHK46
    Max. turning diameter
    mm
    Φ250
    Max. turning length
    mm
    350
    Max.swing diameter over bed
    mm
    Φ400
    Max.swing diameter over cross slide
    mm
    Φ100
    Spindle
    Type of spindle nose

    A2-5
    Inner diameter of front bearing
    mm
    Φ90
    Taper of spindle bore

    Φ90
    Spindle bore

    Morse 6#
    Max. through bar diameter
    mm
    Φ56
    Max.dia.of bar
    mm
    Φ45
    Max. bore diameter of the collet
    mm
    Φ46
    Max. spindle speed
    r/min
    4000
    Spindle rated torque
    Nm
    72
    Max. spindle torque
    Nm
    105
    Main motor output power continuous /30 minutes
    kW
    7.5/11
    X/Z axis
    X/Z rapid traverse
    m/min
    24
    X axis travel
    mm
    430
    Z axis travel
    mm
    430
    Turret
    Turret form

    Gang type tool post
    Center height of the boring tool holder
    mm
    52
    Outer circle tool holder
    mm
    20×20
    Double-sided outer circle tool holder
    mm
    20×20
    Face tool holder
    mm
    20×20
    Boring tool holder
    mm
    Φ25
    Cooling and chip removal
    Chip removal form

    Chip conveyor box
    Other
    Distance from spindle center to bed bottom
    mm
    1060
    Machine net weight
    kg
    2250
    Total power supply capacity
    kVA
    16
    Overall dimensions (Length X width X height)
    mm
    2250×1350×1850
    Machine tool accuracy
    Inspection items
    Factory Standard
    Processing accuracy
    IT6
    Roundness of workpiece
    0.005mm
    Cylindricity of workpiece
    0.015 mm / 110 mm
    Flatness of workpiece
    0.015mm/ Ф 130mm
    Surface roughness of workpiece
    Ra 1.6 μm​
    Positioning accuracy
    X-axis
    0.01mm
    Z-axis
    0.01mm
    Repeat positioning Accuracy
    X-axis
    0.006 mm
    Z-axis
    0.006 mm

    Industry application:

    OUR Service:

    Ensure you receive a high quality machine
    1. Every parts need be inspected
    2. Over 100 production process control
    3. Over 200 inspection items
    4. Sample processing of each machine
    5. 72 hours trial run before delivery

    Why Choose Us:
    ◆ Top quality sense, customers' requests come first
    ◆ 30 years + R & D history, the company was founded in 1993
    ◆ High-tech manufacturer with research anddesign capacity
    ◆ Stable and mature supplying system
    ◆Young active sales and engineers for instant services(24 hours online)
    ◆ Upgrading on mechanism according to ergonomics and easy maintenance
    ◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
    About Us:
    Welcome to visit us!
    Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
    SMTCL and SYMG group is our cooperating factory. It has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
    Our Factory:

    FAQ:

    Q1. Are you a trade company or manufacturing company?

    We are a manufacturing company.
    Q2. What's your main products of your company?
    We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
    Q3. Can you provide customized machine or SPM (Special purpose machine)?
    Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
    Q4: What's your warranty terms?
    We will supply a replacement for parts that prove to be defective for a period of 12 months,
    starting on the machine's bill of lading date.
    Q5. What is the services?
    Pr-sales:Customized solutions, planning and design;One-to-one service
    After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
    Q6: Why choose your company?
    Products from the development, design, manufacture, assembly of the entire production process are
    carried out between plants with a complete production chain which is your most reliable guarantee.
    Q7: Can your company send the technical personnel to our company and direct our workers overseas?
    We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
    Q8: What's the Payment Terms?
    T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
