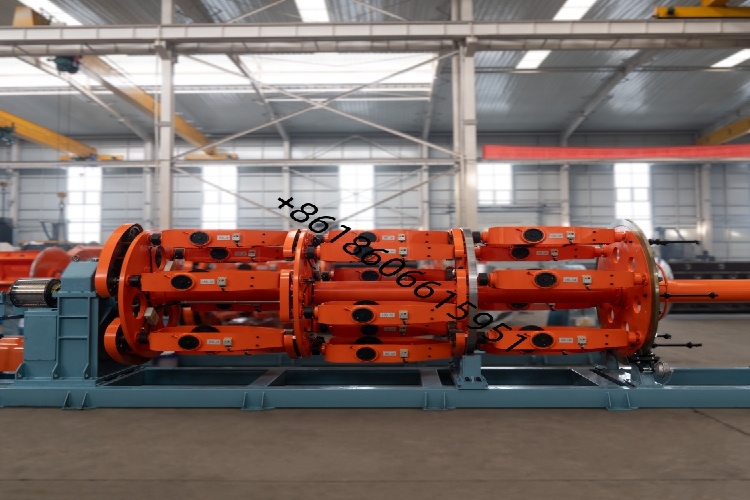

    Planetary Stranding Machine Technical Description and Applications 500/12+18

    Ask Lasest Price
    Brand Name : Beyde
    Model Number : 500/1+12+18
    Certification : CE
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 200 set/year
    Delivery Time : 90 days
    • Product Details
    • Company Profile

    Planetary Stranding Machine Technical Description and Applications 500/12+18


    Planetary Stranding Machine Technical Description and Applications 500/12+18

    Applications
    The planetary stranding machine is a versatile solution designed for various wire and cable manufacturing processes. It is primarily used for:
    Stranding copper and aluminum wires with 100% back-twist to produce high-quality conductors.
    Stranding insulated cores for control cables, communication cables, and other applications.
    Manufacturing steel wire ropes and armored cables with high tensile strength.
    Suitable for non-rotating cable production and high-tensile round wires


    Why Choose Our Planetary Stranding Machine
    Advanced Technology: Our planetary stranding machines feature state-of-the-art technology, including individual motor drives, continuous pitch adjustment, and intelligent PLC + HMI control systems .
    High-Quality Production: The 100% back-twist mechanism ensures the removal of internal wire stress, resulting in higher quality and more durable products .
    Versatility: Our machines are suitable for a wide range of applications, from copper and aluminum stranding to insulated core cabling and steel wire armoring .
    Reliability and Stability: With decades of manufacturing experience, our machines are built to last, ensuring consistent performance and high accuracy .
    Customization: We offer various bobbin configurations and cage sizes to meet specific customer needs .
    Advanced Tension Control: Optional German ZF Hysteresis tension system provides constant tension from full to empty bobbins, ensuring stable production .
    Our planetary stranding machines are designed to provide excellent performance while being cost-effective, making them an ideal choice for wire and cable manufacturers.


    Input wire diameter

    Copper Ø 1.5-Ø 5.0mm

    Aluminum Ø 1.7-Ø 5.0mm

    Insulated wire Ø2.0-Ø 10.0mm

    Steel Ø0.9-Ø3.6mm

    Aluminum clad steel: Ø 1.2- Ø 4.5mm

    Max stranding ODØ50mm
    Max rotation speed71 r/min Max
    Stranding pitch (Set on PLC)60 ~ 800mm (Stepless adjustable)
    Max linear speed29m/min
    Main cage motor power

    6B: 37KW (AC)

    12B: 45KW(AC)

    18B: 55KW(AC)

    Taping machine rotation speed506r/min
    Taping machine motor power5.5kw (AC)
    Taping pitch0-200 Stepless adjustable
    Pay-off reel size in stranding cagePND630
    Double capstan wheel diameterØ2000mm
    Capstan motor power55KW(AC)
    Central pay-off reel sizePND500-PND630
    Take-up reel sizePN1000-PN2000
    Take-up motor power5.5KW(AC)
    Machine center high1000mm

    The electric control part is composed of power cabinet, operation cabinet, touch screen, etc., and there are corresponding control buttons on each unit
    The electrical cabinet is designed with good mechanical properties and dustproof performance, and is equipped with a proper amount of forced ventilation fans.
    The power supply is: 3-wire 5-phase system, 380V (±10%) 50HZ.
    Total installed power: 280KW
    Motor protection function: The electrical control circuit is designed with: phase loss, overload, and overheat protection functions to prevent motor damage.
    The alarm fault information can be queried on the touch screen, and it has the functions of alarm fault and production process data storage.
    Operating system: It can view and modify various parameter settings in the production process in real time, such as pitch, production speed, current working status and other information.
    All drive motors are designed with encoders and the encoder feedback operates in a closed loop control system.
    The unit adopts PLC unified coordination control operation. It adopts touch screen HMI to operate. Simple and convenient operation
