    Cradle Laying Up Machine: Technical Insights and Applications for Cable Manufacturing

    Ask Lasest Price
    Brand Name : Beyde
    Model Number : 1250/1+1+3
    Certification : CE
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 200 set/year
    Delivery Time : 90 days
    • Product Details
    • Company Profile

    Cradle Laying Up Machine: Technical Insights and Applications for Cable Manufacturing

    Cradle Laying Up Machine: Technical Insights and Applications for Cable Manufacturing


    Applications
    Cradle Laying Up Machine is an important equipment for cable cabling, mainly used for cabling operations of 3 to 7 core insulated wires. The equipment can produce a variety of cables, including:
    Medium and low voltage power cables
    Control cables
    Communication cables
    Mining cables
    In addition, it can also be used to produce circular or fan-shaped cross-section cables, supporting back-twist and non-back-twist cabling processes.


    ModelSingle Wire Cross-sectional Area (mm²)Maximum Cabling Diameter (mm)Cabling Speed (m/min)Cabling Pitch (mm)Main Motor Power (kW)
    CLY-1250/1+1+310~25753.5~25.4151~265237
    CLY-1600/1+1+310~351004.9~35.5415~710055
    CLY-1000/1+66~20633.5~25.4110~191030

    Why choose us?
    Rich industry experience
    We have more than 40 years of experience in cable equipment manufacturing and have installed more than 300 cabling and cable laying equipment for customers around the world.
    High efficiency and energy saving
    Our Cradle Laying Up Machine adopts advanced motor drive technology, low operating noise and low energy consumption.
    Customized solutions
    We provide a variety of models and configurations (such as 1+3, 1+1+3, 1+4, etc.) to meet the production needs of different customers.
    Reliable quality and support
    Our products undergo strict quality inspections and provide comprehensive after-sales service. Many customers report that the equipment runs stably and has a long service life.


    I
    nput line dia.Ø6- Ø25mm
    Strand cage max rotation speed50r/min
    Max lay-up diameterØ80mm
    Lay-up pitch500-3600mm (Stepless adjustable)
    Linear max speed50m/min
    Haul-off Max pull force1600kg
    Pay-off bobbinsize in cagePN1250
    Central Pay-off bobbin sizePN1250
    Take-up bobbin sizePN1000- PN2000
    Main stranding cage motor power45 kW (AC)
    Take-up motor power5.5 kW(AC)
    Haul-off motor power18.5kW(AC)
    Machine high1000mm



    Pay off bobbin size:PN1250
    Max load capacity:3T each bobbin
    Max speed :50r/min
    Pitch range:500-3600mm (Stepless adjustable on PLC)
    Driving motor power: 45KW(AC)
    The winch is operated through the HMI touch screen, and the programmable controller PLC coordinates and controls the start, stop, jog and other operations of the winch cage.

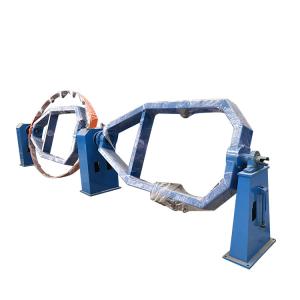

    The stranding cage is supported by the reduction box and the large bearing seat. The main shaft is a whole piece of high-quality seamless steel pipe, driven by a separate AC variable frequency motor, and has the left and right stranding function. 100% back-twist twisting is realized through the planetary gear mechanism.
    The whole machine is designed for high-speed operation, without tugboat load, and runs through the reduction box and the internal bearing of the large bearing seat.
    The back-twist mechanism of the stranding cage adopts planetary gear back-twist, which can withstand large torque.
    The stranding cage is independently driven by a 45KW AC motor with a built-in encoder. The encoder operates in a closed-loop control system and is coordinated and controlled by the programmable logic controller PLC and each unit.
    Pay-off tension: The reel cradle provides the tension required for pay-off through mechanical belt friction, and the tension can be adjusted manually.
    Braking system: winch cage braking through: air pressure brake, frequency converter, braking resistor, etc. are coordinated by PLC to complete the braking process. The entire braking process is synchronized with the whole machine to ensure stable pitch.
    There are 12 sets of filling rope pay-off racks at the outlet end of main cage body.
