500T/D Ore Dressing Line Equipment For Iron Ore, Gold Ore
Our company's iron ore beneficiation line get the user's praise by
its advanced technology and excellent quality , many enterprises at
home and abroad and order the products of our company.
Brief Introduction about Ore Dressing Line
The ore processing equipment composes of many equipments, such as jaw crusher, impact crusher,
vibrating feeder, belt converyor, ball mill, spiral separator,
mixer, rotary kiln,and so on. as to how many equipments needed for
each model, it's mainly depended on your situation and your expect
about the final product, such as the size of the stone, the grade
of the coarse ore and your expect on the final product,etc.
This line mainly consist of feeding - primary crushing - conveying - secondary crushing -
grinding machine - classifier - chemical flotation - concentrated
ore - drying
Advantages of Ore Dressing Line
General speaking, ore processing equipment
1: all products are manufactrured with the guidance of ISO9001
2: each quality product to optimized the complete line, so it's
more effective
3: the gold recovery plant is low noise
4: whole life sale service for the Process Equipment , so our client can rest assured
5: any spare parts is available in our factory
Procedures of Ore Dressing Line
1: crude ore need to be primary by coarse jaw crusher and
re-crushed by fine crusher or impact crusher
2: the re-crushed particles will be sent to ball mill to get s utle
powder

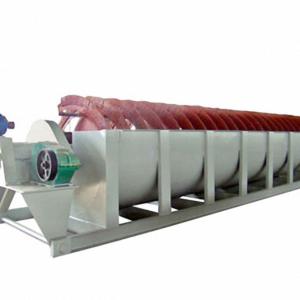

3: the powder will be processed by spiral separator in the next
stage
4: then the mineral will be mixed with additives in the mixer
5: the flurry will be processed to extract copper in the flotation
machine
6: then the rotary dryer will dry the concentrate ore, so the
copper ore processing equipment is finished by now.
Four Steps Of Ore Dressing Line
step1:Crushing-- Put the ingredients broken
1)introduction: Due to the volume of gold ore produced is too large
, so it is necessary to the mined ore crushing. In this process ,
send the ore into the grinder device to crushed . In general, The
System requirements of the ore particle size for general
12mm------18mm.
step2:Grinding--The processing of raw materials carefully
1) Process introduction: In this process, we must first make clear
the requirements for each ore solution particle standards, Based
with the aid of various equipment, put all sorts of ore grinding to
separation units required unit solution size.
2).Main Equipment:Feeder,Ball Mill,Classifier, Cyclone,High
frequency screen,Lattice mill,Overflow ball mill,etc.
step3: Sorting --Select fine ore powder
1).Process introduction: In the production process,not all the ore
powder are in line with the standard . we need to filter the ore
powder . In this process We use professional equipment to elect
qualified concentrate powder from ore , eliminated does not meet
the criteria for ore.
2).Main Equipment:Mixing drum,Flotate separator,magnetic separator,
Centrifugal gold machineetc.
step4:Dehydration --Take off water in the ore
1).Process introduction: Due to various constraints, after the
front of several processes , there are always some residual
moisture in the ore powder, then we need to pick out concentrate
dehydration, to meet the requirements of transportation and
smelting.

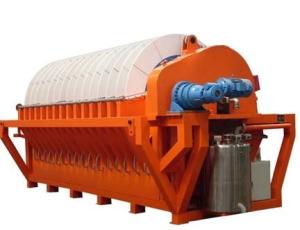

2.)Main Equipment:Vacuum filter,Box pressure filter,Folding belt
filter,Ceramic filter,Vacuum pump, Driving thickener,etc.
