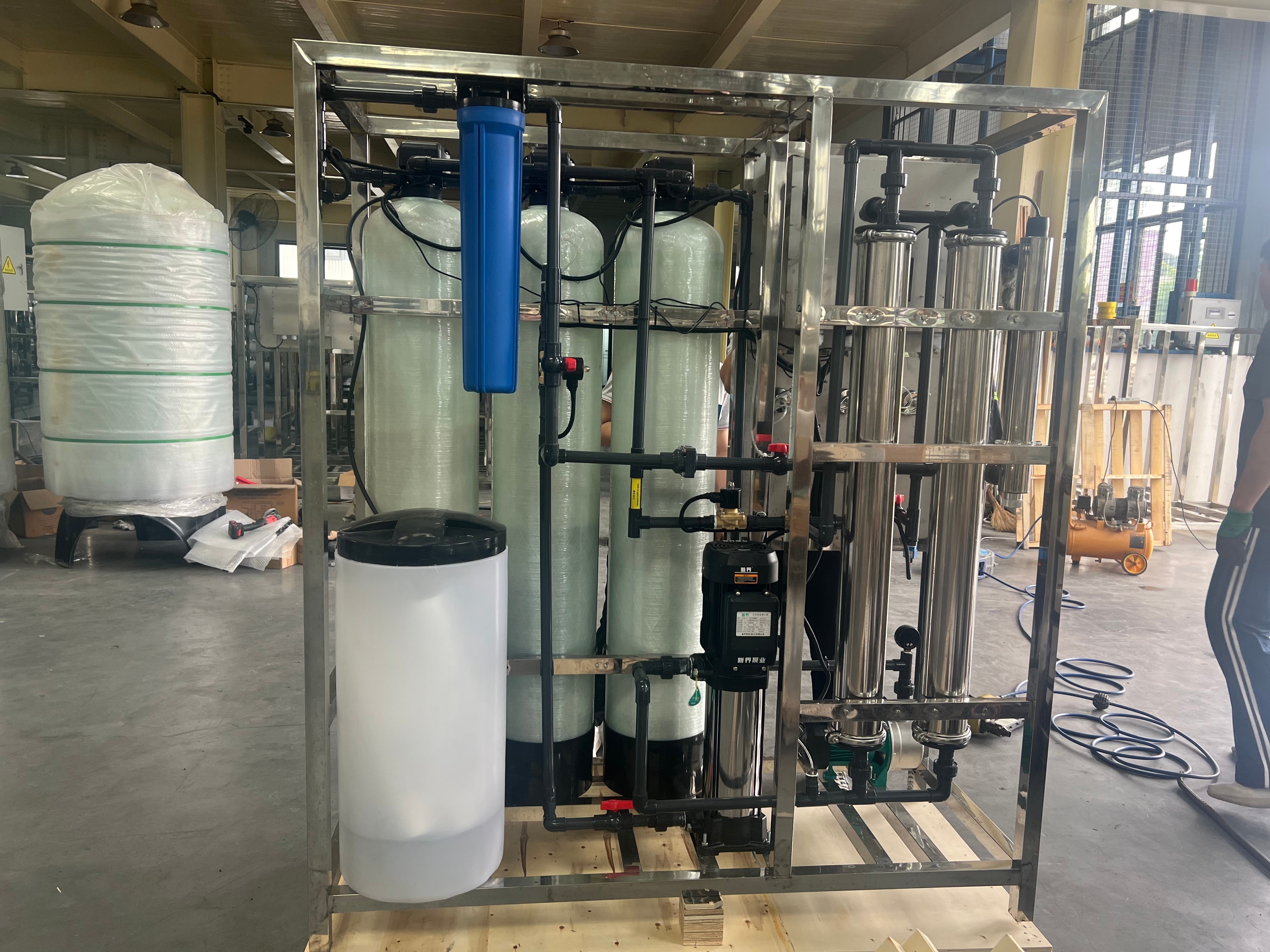

500L/H single stage reverse osmosis (RO) water treatment equipment
Wastewater treatment equipment:
Reverse osmosis equipment is a kind of equipment for separation and
purification, and its core is reverse osmosis technology, which is
a pressure-driven membrane separation technology by means of the
function of selecting through (semi-permeable) membranes.
Parameter Table
Model | Water Making Ability | Inlet Caliber | Effluent Caliber | Blowdown alCer | Size(mm) | Power |
YSRO-0.5T | 0.5m3/h | DN20 | DN20 | DN15 | 1500×600×1500 | 1.3kw |
YSRO-1T | 1m3/h | DN25 | DN25 | DN20 | 1700×600×1500 | 2.1kw |
YSRO-2T | 2m3/h | DN32 | DN25 | DN20 | 2500×1000×1950 | 4.4kw |
YSRO-3T | 3m3/h | DN40 | DN32 | DN25 | 2500×1200×2150 | 4.5kw |
YSRO-5T | 5m3/h | DN50 | DN40 | DN32 | 2500×1350×2150 | 7.0kw |
YSRO-8T | 8m3/h | DN50 | DN50 | DN40 | 3500×1500×2150 | 11kw |
YSRO-10T | 10m3/h | DN50 | DN50 | DN40 | 3500×1600×2300 | 15kw |
Packaging and transportation
FAQ
1.What is water treatment?
Water treatment refers to the process of removing or reducing
impurities, pollutants and harmful substances in water by physical,
chemical or biological methods in order to improve water quality
and meet the needs of specific uses
2. What is packing of this machine? Is it suitable for shipment?
Machine will be packed by standard wooden case. It is suitable for
shipment. After you receive machine, you only need to open wooden
case to pick up machine.
3. How does reverse osmosis equipment work?
Reverse osmosis (RO) is a process that uses pressure differences to
facilitate the separation of water from a highly concentrated
aqueous solution (or high-pressure aqueous solution) through a
semi-permeable membrane into a lower concentration aqueous solution
(or low-pressure aqueous solution). In this process, water can
successfully pass through the semi-permeable membrane, and most of
the impurities dissolved in the water such as carbonate, organic
compounds, and bacteria are also blocked, so as to achieve water
purification treatment.
4. Why do seals in reverse osmosis equipment swell?
In reverse osmosis equipment, in order to avoid the use of
petroleum jelly or other petroleum grease lubricants resulting in
cracking of fresh water pipes, special sealing rings are usually
selected. However, some improper lubricants or operations may cause
the sealing rubber ring to expand. Although a slight expansion
usually does not directly affect the operation of the system, it
may hinder the reloading of the system after unloading. The
solution is to avoid using improper lubricants and regularly check
the status of the seal ring.
