5 Liter 110 Volt Four-Station High-Efficiency Laboratory Jar Mill
for Powder and Sample Grinding
In scientific research and experimentation, precision and
efficiency in laboratory equipment are paramount. The Lab Jar
Roller Mill Machine represents a significant advancement in
materials science and sample preparation technology.
This robust machine features a series of rotating jars mounted on a
horizontal roller. Constructed from high-quality materials
including stainless steel and ceramic, these precisely aligned jars
ensure efficient milling. The roller mechanism creates both
rotational and lateral movement, producing a cascading motion that
facilitates effective grinding and mixing.
The Lab Jar Roller Mill Machine offers exceptional versatility,
accommodating diverse sample sizes and types across multiple
research applications. Whether pulverizing solid materials,
blending powders, dispersing pigments, or creating homogeneous
mixtures, this equipment provides precise control over particle
size reduction and material blending for reproducible, accurate
results.
Working Principle
The grinding process begins as media and materials within the
cylinder rotate to a predetermined height, then descend from the
tube walls under gravity. Material crushing occurs through a
combination of impact, friction, and shearing forces from rolling
and sliding movements. This optimized procedure enhances efficiency
while ensuring smooth, effortless operation.
Technical Specifications
| Category | Model No. | Power Supply | Rotate Speed | Max Load Per Jar | Dimensions & Net Weight |
|---|
| 2 Work Positions | GQM-2-5 | 220V-50Hz or 60Hz/0.75kw | 50-410 rpm | 35KGS | 950*480*685mm 59KGS |
| GQM-2-15 | 220V-50Hz or 60Hz/1.1kw | 40-365 rpm | 80KGS | 1130*550*690mm 80KGS |
| GQM-2-20 | 220V-50Hz or 60Hz/1.5kw | 40-340 rpm | 120KGS | 1350*650*690mm 92KGS |
| 4 Work Positions | GQM-4-5 Single layer | 220V-50Hz or 60Hz/0.75kw | 50-410 rpm | 35KGS | 950*660*690mm 70KGS |
| GQM-4-5 Double layer | 220V-50Hz or 60Hz/0.75kw | 50-410 rpm | 35KGS | 950*480*870mm 92KGS |
| GQM-4-15 | 220V-50Hz or 60Hz/1.5kw | 40-365 rpm | 80KGS | 1130*800*690mm 95KGS |
| GQM-4-20 | 380V-50Hz or 60Hz/2.2kw | 40-340 rpm | 120KGS | 1350*820*690mm 122KGS |
| 8 Work Positions | GQM-8-5 | 220V-50Hz or 60Hz/1.5kw | 50-410 rpm | 35KGS | 950*660*960mm 106KGS |
| GQM-8-15 | 380V-50Hz or 60Hz/2.2kw | 40-365 rpm | 80KGS | 1130*800*960mm 152KGS |
Key Features
- Simultaneous grinding of multiple sample materials
- Both intermittent and continuous operation modes available
- Adjustable timing to meet specific requirements
Grinding Pots & Balls Accessories
Available grinding jars in various materials:
- Zirconia ball mill jar
- Alumina ball mill jar
- Agate ball mill jar
- Tungsten ball mill jar
- Hard metal mill jar
Package & Shipping
Package Type
PE Form + Cartons / Wooden cases; Custom packaging available
Port
Shanghai Port, Guangzhou Port, Tianjin Port, Qingdao port
Delivery Time
Within 3-7 working days from payment receipt

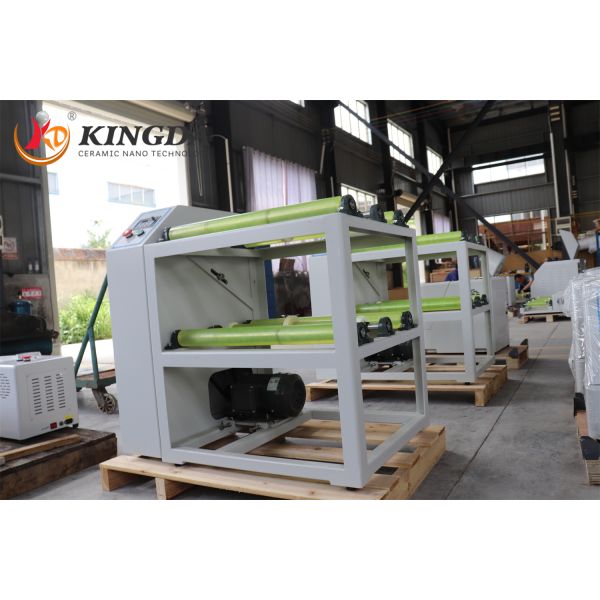

Manufacturing Facility
Frequently Asked Questions
What roll mill jars are available in your products?
Our available roll mill jars include alumina, zirconia ceramic,
nylon, stainless steel, tungsten carbide, PTFE, polyurethane, and
more.
What are your terms of delivery?
FOB, CFR, CIF.
Can you accept small quantity sample orders before production?
Yes, we can provide samples for testing before production.
Customers are responsible for courier costs.
What is your production time?
Typically 3-15 days after receiving advance payment. Specific
delivery time depends on items and order quantity.
What are your payment terms?
T/T 30% deposit, 70% balance against original B/L copy, or 100% L/C
at sight. We provide product photos and B/L copy before balance
payment.
Our Service Commitment
- Custom grinding balls production available
- Comprehensive pre-delivery testing of all goods
- Customer-focused business relationships
- Prompt response within 2 hours for all inquiries
About Kingda Ceramic Technology
HUNAN KINGDA CERAMIC TECHNOLOGY CO.,LTD specializes in
manufacturing Grinding Media Balls, Grinding Jars, Zirconium
Dioxide, and Zirconia structures.
Our commitment to "Quality Is in the First Position forever" has
earned us high reputation and recognition from prestigious
institutions including University of Oxford, Loughborough
University, Peking University, and Tsinghua University.
We are dedicated to providing high-quality grinding products and
exceptional services to customers worldwide, fostering mutual
benefit and sustainability through technological excellence.
