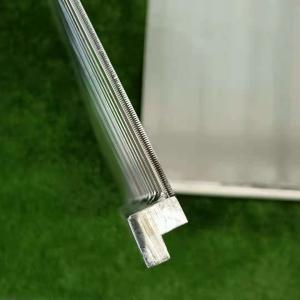

Stainless Steel Wedge Wire Screen Sieve Bend For Solid Liquid Separation

Stainless steel wedge wire screen Sieve bend for solid liquid separation

Advantages

1. High opening rate, big filter area, fast filtering speed.
2. Good corrosion resistance and wear resistance.
3. Low using cost and long life span
4.Homogeneous slot size, smooth surface, strong permeability, minimum gap precision can be up to 8 microns.

Specification:
1. Material: Carbon steel, Low carbon steel, Stainless steel (304,316L,1Cr18Ni9Ti,0Cr18Ni9,00Cr17Ni14Mo2,321) Duplex stainless
steel,Hastelloy, Titanium alloy,etc
2. Minimum slot size: can be up to 8 microns.
3. Wrap and support rod: Wrap type: V1,V2,V3,V4; Rod type: V4,V5,V6,T1,T2,U1,U2
4. Note: The length and width can be customized.

Pressure bend sieve is a kind of high efficient sieve, relying on pressure screening the wet, which is composed of screen surface,
sieve box, feeding device and outlet.

The screen surface is the key component. It is made of stainless steel shape screen. When
operating the wet material ejected from the nozzle under pressure from 0.2 to 0.4 Mpa, high ejection speed produces tangential
force, triangular mesh wedge forms blade to scrap the material into a thin layer, then the water and fine material evenly
dispersed,and the entire screen surface get essential self-cleaning.

The material on the sieve discharged from the taphole,The material under the sieve get into the stock inlet. As it adopted the multistage countercurrent washing process, it can effectively
improve powder extraction rate and starch quality, having an obvious economic benefits. It becomes an replacement of the screening process in starch industry.
Application: germ washing and fiber separation in starch industry.

Arc vibrating screen(sieve bend) is a certain curvature radius and angle of slotted screen. As required, it can be made of
different radii and different angles. Common angle 45 °, 60 °, 90 °, 180 ° and 270°.Mainly used for coal preparation plants, iron
ore mines, food processing and other industries.
