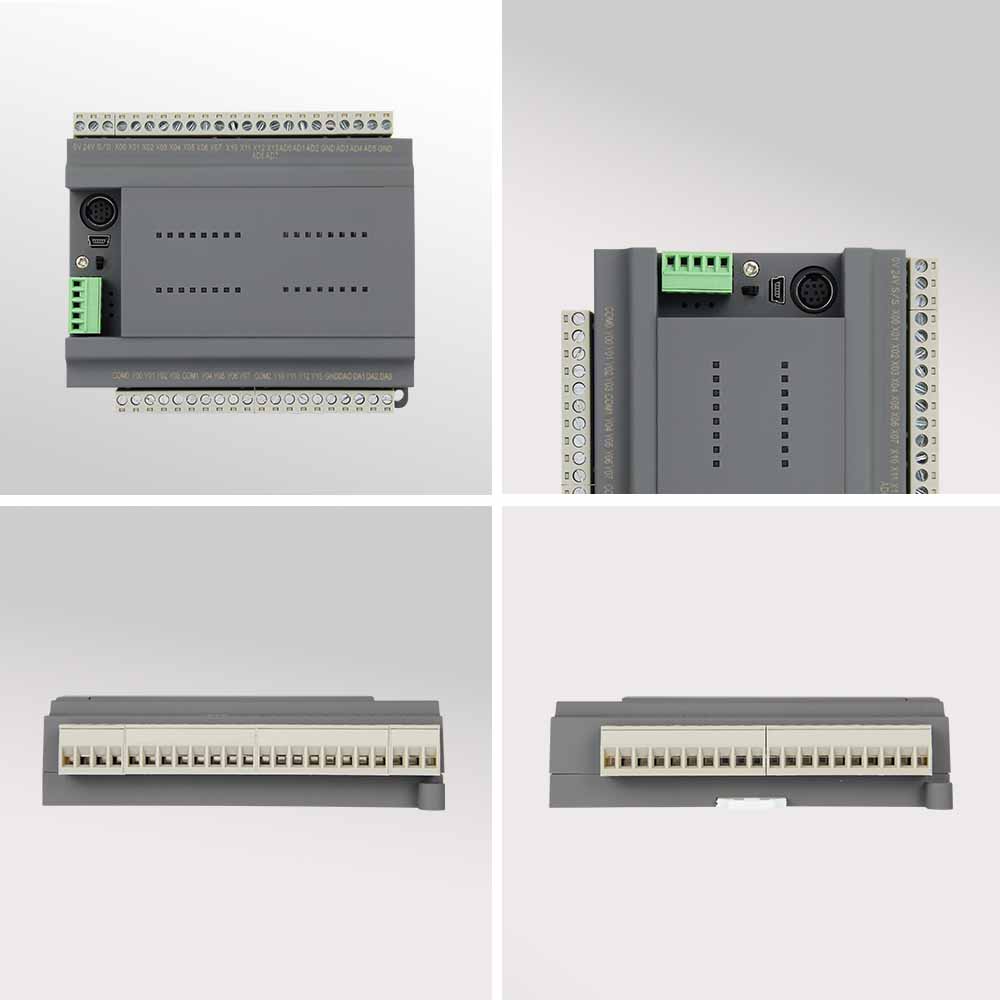

12DI 12DO Industrial Automation PLC Output Module CX3G-24MRT

Input: Passive NPN, public terminal isolated

Transistor output: NPN

Relay output: Normally open dry contact

Relay(MR) or transistor(MT) or mixed(MRT)

MOS tube: 2A/point, 4A/4 point COM; Transistor MT: 0.5A/point, 0.8A/4 point COM, 1.6A/8 point COM;

MR: 2A/point, 4A/4 point COM, 5A/8 Click COM.

(CX3G-16MRT: Default Y0, Y1 is transistor output, maximum 6 relay outputs)

Analog I/O

(optional)

AI type

(optional)

Type E/E_/K/K_/S/S_/T/T_/J/J_ thermocouple / PT100/ PT1000/ NTC10K/ NTC50K/ NTC100K/

0~10V/ 0~5V/ 0-20mA/ 4-20mA/ -5V~5V/ -10V~10V

AO type

(optional)

0~10V/ 0-~5V/ 0~20mA/ 4~20mA

-5~5V/ -10~10V (2DA for 1 minus voltage)

Default 2 RS485 COM ports can be customized as

1 RS485, 1 RS232 COM ports,

or 1 RS485 COM port, 1 CAN (2.0A/B),

or 1 RS232 COM port, 1 CAN (2.0A/B)

CX3G-48M can add Ethernet port.

Default 2 RS485 COM ports can be customized as 1 RS485, 1 RS232 COM ports,

CAN (2.0A/B) port is optional

CX3G-34M can add Ethernet port

Suggested models: CX3G-16MT/MRT(-485/232) CX3G-24MT/MR/MRT(-6AD4DA -485/232)

CX3G-32MT/MR/MRT(-2AD -485/232) CX3G-34MT/MR/MRT(-12AD8DA -485/232)

CX3G-48MT/MR/MRT(-8AD4DA -485/232) CX3G-64MT/MR/MRT(-16AD8DA -485/232)

CX3G-80MT/MR/MRT(-4AD4DA -485/232)

Detailed info. refer to COOLMAY CX3G PLC Programming Manual CX3G PLC user manual
