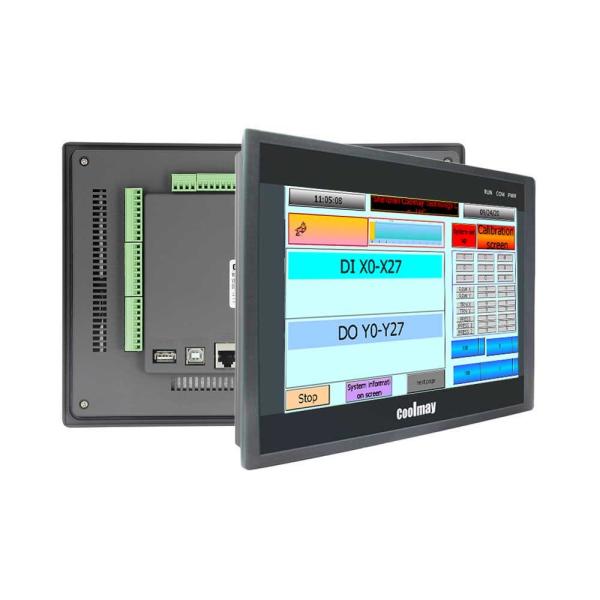

RS232 RS485 COM Port Integrated HMI PLC 64MB Public Terminal
Isolated
RS232 RS485 COM Port Integrated HMI PLC Passive NPN Public Terminal
Isolated Digital Input
The all-in-one solution is to integrate the controller, operation
interface, input/output, analog input/output, high-speed
counting/pulse and communication port into a compact unit to meet
the needs of customer equipment automation control.
Parameter:
| Display | Dimension | 275*194*36mm |
| Cutout size | 262*180mm |
| Type | 10"TFT |
| Feature | 60K-color resistive touch screen, supports portrait display |
| Memory | RAM | 64MB |
| ROM | NOR Flash 16MB |
| CPU | 32bit CPU 408MHz |
| I/O | DI/DO | Max 30DI/30DO (max 28MR) |
| DI/DO level | Input: Passive NPN, public terminal isolated Transistor output: Low level NPN, COM connect to negative; Relay
output: Normally open dry contact |
| DO type and load | Relay MR/MOS tube, MOS tube: 2A/point, 4A/4 point COM, 5A/12 point
COM; MR: 2A/point, 5A/12 point COM. |
Analog I/O (optional) | Max 16AI/8AO |
| AI type (optional) | Thermocouple E/E_/K/K_/S/S_/T/T_/J/J_ / PT100/ PT1000/ NTC10K/
NTC50K/ NTC100K/ 0~10V/ 0~5V/ 0~20mA/ 4~20mA/ -5V~5V/ -10V~10V / mixed |
| AO type (optional) | 0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed/ -5~5V/ -10~10V (2AO for 1 minus voltage) |
| High-speed function | High-speed counting | Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz, or 2 ABZ 60KHz + 1 AB phase 10 KHz |
| High-speed pulse | 8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz. High-speed counting + high-speed pulse < 480KHz |
| Connection | HMI | Type-B HMI download port (can download PLC program through the USB
penetrating function), RS232 |
| 1 RS485 (changed from default RS232) |
| PLC | 1 Mini USB, 1 RS232 (program port) |
| 1 RS485 or 2 RS485 COM ports (one is changed from the default RS232
port) |
| CAN (2.0A/B) port, Ethernet port, WIFI (will occupy default RS232
port) |
| Software | HMI | Coolmay mView HMI Programming Software |
| PLC | Compatible with GX Developer 8.86 and GX WORKS 2 |
Advantage:
◆ Upper computer programming software compatible with Works 2/GX
Developer8.86 (supports Ladder diagram and SFC language, does not
support structured programming/labels).
◆ Powerful, compatible with FX3G/FX3U/FX3S PLC, high processing
speed.
◆ Military level 32 bit CPU adopted, which is faster and more
adapted to industrial environment of high electromagnetic
interference.
◆ Special encryption, prevent illegal reading thoroughly. 8-bit
encryption, 12345678 as password can thoroughly prevent reading of
ladder logic program.
◆ Clock supported, rechargeable battery adopted.
◆ Default with 1 HMI download port, 2 PLC programming ports
(RS232/MiniB USB port or Type-C), and one USB port.
◆ Convenient wiring. All wiring terminals adopt 3.81 pitch
pluggable terminals, which is convenient for customers to use.
◆ Flexible use. More specifications and batches can be customized
according to customer requirements.
◆ 32K program capacity, 32K retentive register, support interrupt,
linear arc interpolation ,PID auto-tuning, high powerful.
◆ The PLC is compatible with Mitsubishi programming software, and
the HMI uses TK series human-machine interface programming software
mView.
PLC analog wiring:
Two-wire system: the positive pole of the power supply is connected to the positive
pole of the transmitter; the negative pole of the transmitter is
connected to the AD side; the negative pole of power supply is
connected to GND, which normally it is wring way of 4-20mA/0-20mA
transmitter.
Three-wire system: the positive pole of the power supply is connected to the positive
pole of the transmitter; the negative pole of the power supply and
the negative pole of the signal output are the same terminal and
transmitter signal output is connected to the AD terminal.
Four-wire system: the positive and negative poles of the power supply are
respectively connected to the positive and negative poles of the
power supply of the transmitter,and the positive and negative poles
of the transmitter signal output are respectively connected to the
AD and GND terminals.
The analog line of the temperature is connected to the AD terminal
and the GND terminal respectively. if I is a three-wire Pt100, it
needs to be connected in two lines. The GND common terminal of the
analog input and output can be shared.
Application scenario:
Food packaging machinery, electronic manufacturing equipment,
printing machinery, textle machinery, medical machinery testing
machinery, wind powerequipment,engineering machinery, plastic
machinery tobacco machinery, agriculture, forestry and animal
husbandry (aquaculture), environmental protec-tion equipment,
automobile manufacturing,AGV trolleys,logistics storage
equipment...
