Analog Input Ouput HMI PLC Combo 8 Bit Password 800*480 Pixels
Analog Input Ouput PLC controller HMI PLC Combo High Resolution
Fast Operation Speed

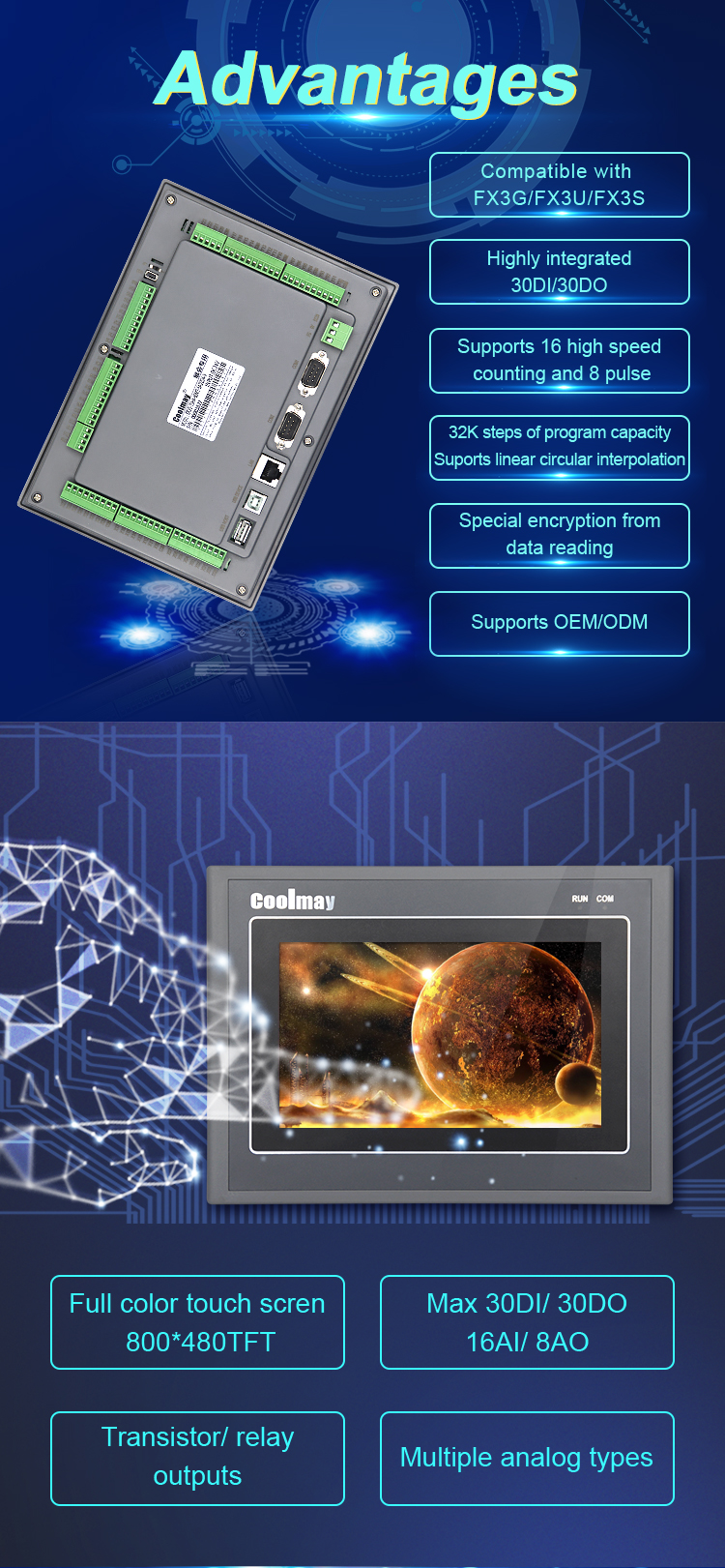

Quick detail:
- Integrated PLC,HMl,digital I/O(DW/DO), analog I/O(AD/DA), high
speed functions,etc..
- Compatible with Fx3G/FX3U/Fx3S PLC,fast operation.
- Up to 30DI/30DO,16AD/8DA.
- Default 2 PLC programming ports, 1 HMl download port.
- Supports optional one or two Rs485, CAN, WIFl, network port on PLC,
and supports optional Rs232,Rs485,network port (under
development)on HMI.
- Supports multi-channel high speed count and pulse functions.
- 32K-step program capacity and 32Kpower retentive registers.Supports
interruption, linear arc interpolation and PID self-tuning.
- Supports special encryption.HMl and PLC can be encrypted
respectively.Set PLC password as 12345678 can prohibit reading
program completely.(Note:PLC only supports 8-bit password.)
Packing List
- 1*HMI PLC All-in-One
- 1*Free HMI Downloading cable
- 1*Free PLC Progamming cable
Paramaters of HMI Part:
size of HMI: 7 inch
cutout size: 217*154mm
Resoution:800*480
RAM:NOR Flash 16MB
ROM:64MB
CPU:32bit CPU 408MHz
com ports:1*type B download port, 1*RS232
Software: mView
Paramters of PLC Part:
Digital I/O: Max 30DI/30DO(Max 28R)
I/O level: default NPN input and output, MR can be customized PNP
input PNP output, MT can be customized PNP input and NPN output
DO type: transistor(MT) or relay(MR) or mixed(MRT)
Analog I/O(optional): max 16AI/8AO
AI(Optional):
Thermocouple E/E_/K/K_/S/S_/T/T_/J/J_ / PT100/ PT1000/ NTC10K/
NTC50K/ NTC100K/0~10V/ 0~5V/ 0~20mA/ 4~20mA/ mixed
AO(Optional):
0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed/-5~5V/ -10~10V (2AO for 1 minus
voltage)
com port:1*mini USB,1*RS485,1*RS232
software: WORKS 2/ GX developer 8.86
We are committed to providing you with a variety of solutions
(Communication Port, Analog, Temperature,Weighing, etc.)
| EX3G-70KFH |
| Display | Display size | 154*87mm |
| Resolution | 800*480 pixels |
| Type | 7.0"TFT |
| Feature | 60K-color resistive touch screen, supports portrait display |
| Memory | RAM | NOR Flash 16MB |
| ROM | 64MB |
| CPU | 32bit CPU 408MHz |
| I/O | DI/DO | 12DI/12DO or 20DI/18DO or 24DI/20DO or 30DI/30DO (max 28MR) |
Input: Passive NPN, public terminal isolated Transistor output: Low level NPN, COM connect to negative; Relay
output: Normally open dry contact |
| DO type | Relay (MR) or transistor (MT, Y0-Y3 are MOS) or mixed (MRT) (Relay output: max load 5A/ transistor output: max load 500mA) |
Analog I/O (optional) | Max 16AI/8AO |
| AI type (optional) | Thermocouple E/E_/K/K_/S/S_/T/T_/J/J_ / PT100/ PT1000/ NTC10K/
NTC50K/ NTC100K/ 0~10V/ 0~5V/ 0~20mA/ 4~20mA/ mixed |
| AO type (optional) | 0~10V /0~5V/ 0~20mA/ 4~20mA/ mixed/ -5~5V/ -10~10V (2AO for 1 minus voltage) |
| High-speed function | High-speed counting | Single phase 6 channel 60KHz, or 2 AB 60KHz + 1 AB 10KHz, or 2 ABZ 60KHz + 1 AB phase 10 KHz |
| High-speed pulse | 8 channels, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz. High-speed counting + high-speed pulse < 480KHz |
| Connection | HMI | Type-B HMI download port |
| 1 RS485 or 1 RS232 |
| PLC | 1 Rs485 or 2 Rs485 COM ports (one is changed from the default Rs232
port) |
| CAN (2.0A/B) port, Ethernet port, WIFI (will occupy default RS232
port) |
| Software | HMI | mView |
| PLC | WORKS 2 |
Real Application:
