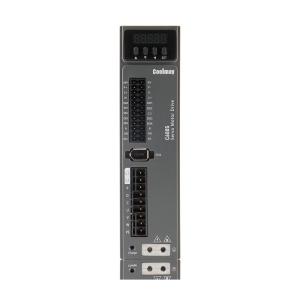

| Servo drive series | Mx3g-c40 series servo PLC all-in-one |
| size | 160 * 135 * 42 |
| input power | Main circuit power supply: single-phase AC220V, voltage range
200V~240V, 50/60Hz Control loop power supply: internal conversion, no external power
supply |
| PLC logic power supply voltage | DC24V |
| Drive motor | Linear (DDL), torque (DDR), voice coil, brushless, brushless servo
motor |
| Control mode | Motion sequence, point to point, electronic gear, position, speed,
torque control mode |
| Encoder feedback | 17 bit single loop absolute value encoder |
| operation mode | Independent programmable control (PLC), external control (step
pulse, PWM, encoder A/B), or distributed network control (Modbus/RS
communication) |
| Communication type | RS485 (supports ModBUS and RS protocols) |
| Input,output signal | 16 photoelectric isolated inputs 16 photoelectric isolated outputs, of which three high-speed pulses
are programmable and general-purpose |
| Rated power (KW) | 0.4KW |
| Rated current (A) | 2.5A |
| Rated current range of adaptive motor (A) | 2.0~3.0A |
| Program capacity | 16K/step |
| High speed processing | I/O refresh command, input interrupt 6 points, timer interrupt 3
points |
| Data register | D0~D3999, 4000 points in total |
Operating ambient temperature | -10~55 ℃ non freezing |
| Operating ambient humidity | 10 ~99[RH%] non condensing |
| Storage temperature | -20℃~60℃(Maximum temperature guarantee: 80 ℃ for 72 hours) |
| Storage humidity | 10 ~99[RH%] non condensing |
| Height | Normal use below 1000m altitude, derated use above 1000m altitude |
| Vibration / shock | 4.9 (m/s2) /19.6 (m/s2 ) |
| Occasion | Indoor, no dust, no corrosive gas, no direct sunlight |
Comprehensive protection design | Overcurrent, short circuit, grounding, overvoltage, undervoltage,
I2t, control error |
