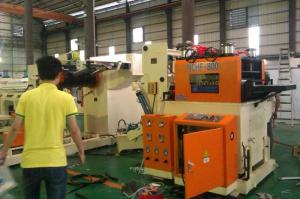

    NC Servo Feeder Machine 1.5T Coil Feed Line Handling Machine

    Ask Lasest Price
    Brand Name : RILANT
    Model Number : SZWG-1000
    Certification : CE
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 500 sets per month
    Delivery Time : 15 work days
    • Product Details
    • Company Profile

    NC Servo Feeder Machine 1.5T Coil Feed Line Handling Machine

    NCF-500 Model NC Servo Sheet Metal Coil Feeder Metal Strip Handling Machine Coil Feeder


    Machine main structure and configuration

    All main components come from world wide famous brands with CE CERTIFICATION, good quality and safety, such as full sets of Schneider low voltage components, Japan Mitsubishi PLC, Japan Yaskawa servo motor etc.


    a) High precision feeding: Aiming at the arrival of hi-tech industry, it is controlled by computer closed-circuit feedback system. So that the precision can maintain within +/-0.03mm.

    b) Phase-style feeding function: It can input 20 groups of different feeding length, each group provides punching for 999 times to satisfy the processing and production of special products (option)

    c) Manual model: It can input 3 phases manual speed, which can let used operate more easily and feed materials more accuracy.

    d) High efficiency release device: It can set up release angle quickly, only match cam signal of and adjusted feed thickness can done.

    e) Feeding length setting: Input feed length on the controller panel directly.

    f) Feeding unit: The roll adopts middle-hollow style. Being light and with low inertia for electroplate. The surface hardness HRC is 60 and hard chrome plated.

    Specifications:

    Model NoNCF-100NCF-200NCF-300NCF-400NCF-500
    Material thickness0.2-3.2mm0.2-3.2mm0.2-3.2mm0.2-3.2mm0.2-3.2mm
    Material width100mm200mm300mm400mm500mm
    Max. feeding length9999mm9999mm9999mm9999mm9999mm
    Feeding speed20m/min20m/min20m/min20m/min20m/min
    PLCMITSUBISHIMITSUBISHIMITSUBISHIMITSUBISHIMITSUBISHI
    Servo motorYASKAWAYASKAWAYASKAWAYASKAWAYASKAWA
    Release typeMechanicalMechanical/pneumaticMechanical/pneumaticMechanical/pneumaticpneumatic

    Main accessory

    1. Upper roller adjustment by digital watch.
    2.Coil width adjusted by double handle wheel with precise scre word.
    3.Pass line can be adjusted by the lifter driven by motor
    4.Uncoiler with four "A" steel backgauges.
    5.Pinch roll and straightener roll material : high-strength alloy bearing steel with hard chrome plating.
    6.Pneumatic coil arm device.
    7.Mitsubishi PLC control feeding program from Japan.
    8.Feed accuracy controlled by Japan YASKAWA servo motor with precise planetary reducer.
