Aluminium Lighting Truss Strong Technical Support Environmental
Friendly

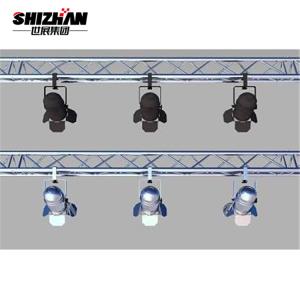

Aluminum DJ Lighting Truss
| Name | Outdoor Concert Event Truss Stage Roof Truss Canopy System |
| Truss Material | Aluminum alloy 6082-T6 |
| Light duty truss | 200*200mm; 250*250mm |
| Medium duty truss | 290*290mm,300*300mm; 350*350mm |
| 300*400mm ; 400*400mm; 450*450mm; 400*600mm |
| Heavy duty truss | 520*760mm ; 600*760mm; 600*1000mm |
| Main tube thickness | 30*2mm; 50*3mm; 50*4mm; 50*5mm |
| Vice tube thickness | 18*2mm; 20*2.5mm; 25*2.5mm |
| Brace tube thickness | 20*2mm; 25*2mm; 30*2mm |
| Length | 0.5m/1m/1.5m/2m…….4m or custom size |
| Truss type | Spigot or bolt |
| Truss Shape | Ladder truss, triangular truss, square truss, arch truss, circle
truss |
| Color | Silver or black, blue, green... |
| Usage | Concert, new product release, fashion show, booth stand
construction |
| Delivery Time | 10 working days |
ROOF :8*6M
roof design has become the standard in aluminum truss temporary
roof structures throughout the
world. Roof 2 system comes in three different size variations
covering small to big size events.
It is a very popular roof structure thanks to its variability,
strength and decent size measures. The
main grid is assembled on the ground and then lifted up thanks to
the employment of Tower 1
elevation systems.
The main rectangular grid of Roof 2 is made of FT44 trusses while
the front and rear rafters come from
FT34 truss line and the inside rafters are made by FT33 truss
segments. The gable of the roof is created
by the FT34 rafters and specifically designed corners for strong
and secure roof structure attachment.
The inside FT33 rafters are connected to the main grid and top beam
through clamps. The rafters are
spaced 2 m apart from each other in order to create a sufficient
support for the top canopy placement
eliminating water pockets.
Roof 2 for stage size 8 x 6 m (26 ft x 19.5 ft) maybe smaller in
size but its loading characteristics are
quite high. Front and rear main beams of the grid can carry load up
to 150 kg/m (101 lb/ft) and at
the same tim the side truss beams can handle imposed load of max.
100 kg/m (67 lb/ft). In total the
max. loading capacity of the roof comes up to 3500 kg (7716 lb). he operational wind limit for using
the roof system with the side canopies on all three sides is 20 m/s
(45 mph).
1: Why should i choose your company instead of other suppliers?
1) TUV, SGS, CE Certified.
2) 15 years Experience in truss, stage, barrier and scaffolding.
3) 35000 m² WORKSHOP Offers good production capacity which can make
sure to delivery orders On time.
4) Professional engineer team offer you the Perfect Solutions for
your project.
5) Have our own Aluminum Profile Production line which can control
the good quality of material.
6) Professional & strict QC team which can make sure all products
in good condition before delivery.
7) Process and Final Inspection,strict product precision control
,installation test before delivery for each order.
2: How do i know your quality? Do you support sample order?
Our products has obtained TUV/SGS/CE/ISO9001 Certificates in the
international market,which proves that our products’s Excellent
quality.
We can also offer samples for customer to do the quality checking
before placing the batch order.
3: Which kinds of payment your company can accept?
T/T,Western Union,Trade Assurance, L/C.
4: What is your products warranty time?
Usually our products warranty is one year and during the warranty
time any damage if not by artificial, we will send new one for
free.
5:Can you do customized design?
Yes, our professional Technical team will offer you the perfect
solutions for your projects.
