PVC Foam Board Extrusion Line For Building Templates Using

    Buy cheap PVC Foam Board Extrusion Line For Building Templates Using from wholesalers

    Buy cheap PVC Foam Board Extrusion Line For Building Templates Using from wholesalers
    • Buy cheap PVC Foam Board Extrusion Line For Building Templates Using from wholesalers

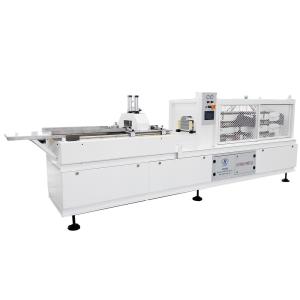

    PVC Foam Board Extrusion Line For Building Templates Using

    Ask Lasest Price
    Brand Name : SHENZHEN HYPET
    Model Number : HYYF-1220 PVC Foam Board Extrusion Line
    Certification : ISO9001
    Price : USD90000/set - USD110000/set
    Payment Terms : L/C, T/T
    Supply Ability : PVC Foam Board Extrusion Line 10 sets per month
    Delivery Time : PVC Foam Board Extrusion Line 40-60 work days
    • Product Details
    • Company Profile

    PVC Foam Board Extrusion Line For Building Templates Using

    PVC Foam Board Extrusion Line For Building Templates Using


    PVC Foam Board Extrusion Line HYPET Unique Advantages

    1. Equipped with HYPET special function extruder, high output, 12 tons/day
    2. The heavy-duty vacuum setting device can ensure the smooth production of PVC/WPC skin foam board
    3. Siemens PLC control system, equipped with HYPET self-developed software, improves operation efficiency and reduces production costs.

    PVC Foam Board Extrusion Line Configuration list

    Note: This table as attached file which is for selection of the configuration on the whole line

    SNItemsChoosing configuration
    1Production control systemSiemens PLC control system
    2Cooling system of the main control electric cabinetFan cooling cabinet
    3Main motorAC motor with famous inverter
    4Pressure sensorHYPET individual temperature and pressure control in two parts
    5Core thermoregulation controlInternal closed loop heat balancing system.
    6Material of screw & barrel typeNitro Alloy with bi-metal in two parts
    7Quantitative feeding system’s mixing functionStandard dosing device in single screw type.

    II. PVC Foam Board Extrusion Line Condition of use

    1. PVC Foam Board Extrusion Line Technical features of whole line

    SNSpecificationDescription
    1Suitable materialPVC and wood powder mixed composite
    2Product sizeWidth: 1,220mm, thickness: 5~20mm
    3Max. output300-400 kg/h
    4Test and acceptBased on HYPET standard formula.
    5Center height1,100mm
    6Whole line size (L x W x H)22,000 x 2,100 x 2,200mm
    7Operation directionFrom right to left
    8Color of equipmentHYPET white color
    9Control of whole productionRefer to the “configuration list”.
    NoteExtrusion capacity will be changed according the processing material and working conditions

    2. PVC Foam Board Extrusion Line Circumstances condition

    SNConditionSpecificationDescription
    1

    Natural

    circumstance

    condition

    Working placeIndoor use
    Power sourceNo dangerous area
    Humidity55%~85% no condensation
    Temperature0~40 ℃
    2

    Electricity

    source

    Installation capacity200 kW
    Actual consumption160 kW
    Power supply3P+N+PE
    Voltage/Frequency380V/50Hz other can be option
    3Cooling waterTemperature≤15 ℃
    Water pressure≥0.3MPa
    Flow~15 m3/h
    4Air conditionCompressor air pressure≥0.6MPa
    Flow~0.9 m3/min

    PVC Foam Board Extrusion Line


    PVC Foam Board Extrusion Line Terms & conditions

    1. PVC Foam Board Extrusion Line Training and services

    1) Instruction of field installation.

    2) Equipment field debugging and trial run if required by the buyer according to the rule.

    3) Training on field operation and maintenance for customer's personnel.

    4) Provide technical consultation service on long-term basis.

    Quality PVC Foam Board Extrusion Line For Building Templates Using for sale
