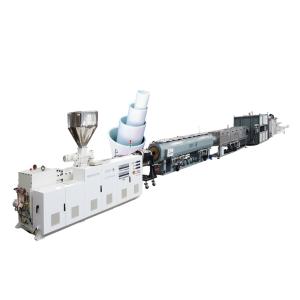

Upvc Pipe Making Machine With Parallel Twin Screw Extruder for pipe
size 200-400mm
Upvc Pipe Making Machine Whole production line composition:
- Extruder HYPS107/28 with spring loader
- Die head
- Vacuum tank
- Spray cooling tank
- Haul off unit
- Cutter
- Stacker
Upvc Pipe Making Machine Auxiliary machine for option:
- Belling machine;
- High speed mixer;
- Crusher;
- Pulverizer;
- Chiller;
- Air compressor.
Upvc Pipe Making Machine Configuration list
Note: This table as attached file, which is for selection of the
configuration on the whole line
| SN | Items | Choosing configuration | Remark |
| 1 | Production control system | PLC control system | Digital control system |
| 2 | Cooling system of the main control electric cabinet | Fan cooling electric cabinet | |
| 3 | Main motor | AC motor with famous inverter | |
| 4 | Pressure sensor | HYPET individual temperature and pressure control in two parts | |
| 5 | Core thermoregulation control | Internal closed loop heat balancing system. | |
| 6 | Material of screw & barrel type | Nitro Alloy with bi-metal in two parts | |
| 7 | Quantitative feeding system’s mixing function | Twin screw with mixing device option | |
| 8 | Pipe calibrator sleeve | Copper calibrator sleeve | |
| 9 | Cutter | Dustless type in new technology | |
Upvc Pipe Making Machine Technical features of whole line
| SN | Specification | Description | Remark |
| 1 | Suitable material | PVC powder | |
| 2 | Pipe diameter range | Ø200-Ø400mm | |
| 3 | Production speed | 0.4 ~ 4 m/min | |
| 4 | Max. output | 600-700kg/h | |
| 5 | Test and accept | Based on HYPET standard formula. | |
| 6 | Center height | 1,000mm | |
| 7 | Whole line size (L x W x H) | 28,000 x 1,200 x 2,450mm | |
| 8 | Operation direction | From right to left | |
| 9 | Color of equipment | HYPET white color | |
| 10 | Control of whole production | Refer to the “configuration list”. | |
| Note | Extrusion capacity will be changed according the processing
material and working conditions |
Upvc Pipe Making Machine
Upvc Pipe Making Machine Terms & conditions
1. Upvc Pipe Making Machine Installation and debugging
When the machine arrives at site, the customer should install it on
the appropriate position according to the specifications provided
by the supplier; and then the supplier should send its engineers to
the site if requirement approved,in order to instruct the customer
about trial run and debugging. The customer should provide
necessary conditions for trial run and provide materials for trial
run, and should decide the processing conditions in trial run with
consideration of the supplier's opinions.
1) The price covers the pre-commissioning of the machinery before
shipment at Seller's site. The Seller is obliged to test the
performance of machinery.
2) The Buyer is obliged to provide suitable space, tools and
manpower for the commissioning of the order.
3) This Price does not included commission and installation in
buyer’s factory.
2. Upvc Pipe Making Machine Terms of payment
1) T/T and L/C (irrevocable, at sight) both are acceptable.
2) 30% of the total contract value should be paid in advance,
balance 70% of the total value is to be paid before shipping at the
Seller’s factory.
