    128x64 Small OLED Display , 0.96 Inch OLED Screen I2C Interface

    Small OLED Display 0.96 inch Mono Thin OLED Display, I2C Interface Panel OLED Screen 128x64 Resolution White


    Product Description

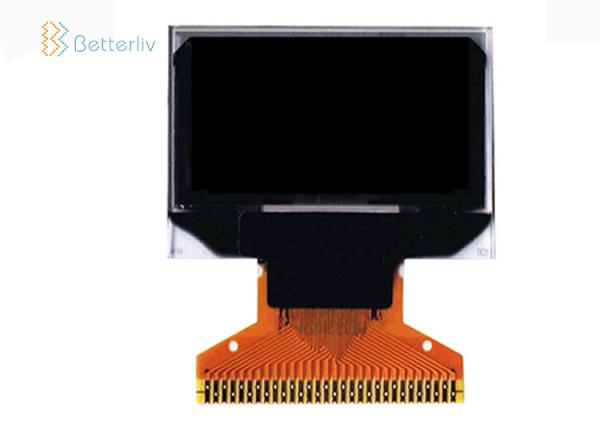

    This thin OLED Display model is made of 128x64 pixels, diagonal size 0.96 inch. It is 1.26 mm on thickness, and it is built-in SSD1306 driver IC; it communicates via 6800/8080 8-bit parallel and I2C/SPI interface (0.96' OLED I2C).

    Products modelColor (Difference)
    HCQ2864WW30S01White (30Pin) @DC/DC Soldering
    HCQ2864WW27S01White (27Pin) @VCC
    HCQ2864WW30C10White (30Pin) @DC/DC connector
    HCQ2864BB30S01Blue (30Pin) @DC/DC
    HCQ2864BB15S01Blue (15Pin) @DC/DC

    Diagonal Screen Size0.96"
    Number of Pixels128*64
    Color DepthMonochrome:White/Blue
    Module ConstructionCOG
    Panel Size(mm)26.70 × 19.26 × 1.45
    Active Area (mm)21.74 × 10.86
    Pixel Pitch (mm)0.17 x 0.17
    Pixel Size (mm)0.154 × 0.154
    Duty1/64
    VCI (V)2.6~3.5
    Vbat DC/DC (V)3.5~4.2
    VCC (V)9 / 12@12Pin
    Driver ICSSD1306
    Brightness(cd/m2)120(min)
    Interface

    8-bit 68XX/80XX Parallel , 4-Wire SPI, I2C

    AssemblySoldering / Connector

    Application
