Automatic Filling Glass Beer Machine,Cheap Beer Bottle Filling
Machine

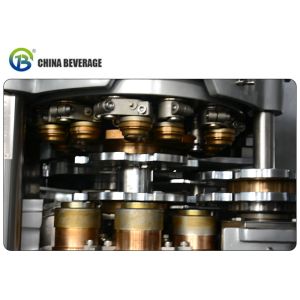

Working procedure
Can is pushed into can holding platform one by one by feeding screw
and star-wheel. After flushing by CO2, centering cup of filling
valve will fall to can; the distance between filling valves and
cans are sealed by springiness plastic ring. The movement of
centering cup is generated by plastic idler wheel along curvilinear
motion. After filled, valve will be closed, air is discharged, and
centering cup will rise from the can. Filled can will be sent to
conveyor chain, then to capper. Seamer will take the lid, turn over
the edge of can and turn the edge to finish the sealing action by
the control of cam. High pressure foam flushing device is equipped.
After that can is transferred to conveying system.
3.Technical parameter
| Model: | GF-8 | GF-12 | GF-18 | GF-24 | GF-32 |
| capacity (330ml based) | 2000BPH | 2600BPH | 5000BPH | 8000BPH | 12000BPH |
| Suitable bottle : | Can, aluminum can, iron can and so on |
| Machine size:(mm) | 800*800*2200 | 980*900*2350 | 1000*1200*2400 | 1500*1500*2500 | 1800*2000*2600 |
| weight: (kg) | 1200 | 1500 | 1800 | 2500 | 3200 |
Main features
1) Wholly sealed widow structure which is beautiful, concise, easy and
highly operated;
2) Cycling tank design with precision polishing inside;
3) High precision and large flow rate filling valves to meet
productive requirement;
4) Specially designed roller structure which is easy to be adjusted,
locked and ensure sealing function;
5) Friendly and convenient operating panel with high expansibility.
6) The filling valve is adopts high precision mechanism valve, fast
speed filling, high precision liquid level.
7) The filling vat adopts SUS304 or 316L material designed sealing
vat, to achieve constant pressure filling.
8) The flow rate of the filling valve>125ml/s.
9) Main transmission adopts toothed belt and gearbox open-type
transmission assemblies, high efficiency, low noise.
10) The main drive adopts step-less speed change for frequency
conversion, the whole machine adopts PLC control; the capping
machine and filling machine adopt coupling joint, to ensure
synchronization of two machines.
11) With filling with can, no filling without can.
12) The filling manner is constant pressure filling, with fast filling
speed and stable action.
13) Adopting introduce into full set of Switzerland (Ferrum) capping
technology.
14) Capping trolley adopts high hardness alloy steel quench(HRC>62), capping curve adopts projection grinder precision machining,
to ensure the quality of capping.
15) With capping with can, no capping without can control system, to
ensure the normal running of the machine.
16) With CIP automatic rinsing function.
17) With centralized lubrication system.
1.Compact structured, good-looking, easy to operate and highly
automated.
2.Parts with contact with material are all made of stainless steel
of food-grade, no dead angles and easy to clean up.
3.Filling volume is controlled with film valves to ensure accurate
filling. 4.Liquid buffer element specially designed inside filling valves
can eliminate the cutting affection and wallop between liquid and
container, easy to eliminate the air bubble in material.
5.Equipped with overload system to safeguard machine and operators.
6.Equipped with cap absence detector and bottle jam-up detector,
which could stop the monoblock in that case.
7.Equipped with output calculating function for monoblock.
8.Main electronic components (touch screen, PLC and frequency
inverter) are imported products.
