Digital Optical Dissolved Oxygen Sensor Luminescence Measure For Fish Farming

    Buy cheap Digital Optical Dissolved Oxygen Sensor Luminescence Measure For Fish Farming from wholesalers

    Buy cheap Digital Optical Dissolved Oxygen Sensor Luminescence Measure For Fish Farming from wholesalers
    • Buy cheap Digital Optical Dissolved Oxygen Sensor Luminescence Measure For Fish Farming from wholesalers
    • Buy cheap Digital Optical Dissolved Oxygen Sensor Luminescence Measure For Fish Farming from wholesalers

    Digital Optical Dissolved Oxygen Sensor Luminescence Measure For Fish Farming

    Ask Lasest Price
    Brand Name : Daruifuno
    Model Number : OPTOD
    Certification : CE
    Price : Negotiable
    • Product Details
    • Company Profile

    Digital Optical Dissolved Oxygen Sensor Luminescence Measure For Fish Farming


    Digital Optical Dissolved Oxygen Sensor Luminescence Measure For Fish Farming


    The optical dissolved oxygen sensor OPTOD uses optical dissolved oxygen technology, which is based on luminescent optical technology. The OPTOD sensor is approved by the ASTM International Method D888-05.


    Application Of The Optical Dissolved Oxygen Sensor

    • Urban wastewater treatment
    • Industrial effluent treatment
    • Surface water monitoring
    • Seawater
    • Fish farming
    • Aquarium

    • Drinking water


    Advantages of The Optical Dissolved Oxygen Sensor

    • Store calibration and history data within the sensor
    • Meet the demands of field works and short or long term campaigns

    • "plug and play" system without re-calibration

    • Optical Technology without calibration

    • No drift, Reduced maintenance

    • Accurate measure in all situation and especially in very low oxygen concentrations

    • Digital communication Modbus RS485 protocol

    • Can be connected to all devices commonly used

    • Compact, strong, and light, the sensor allows portable or fixed/permanent use

    • Body in Stainless steel (316 L) or Titanium for applications in corrosive environment.


    Technical Characteristics


    Product Name

    Optical Dissolved Oxygen Sensor

    Product ModelOPTOD

    Measure Principle

    Optical measure by luminescence

    Measure Ranges

    0.00 to 20.00 mg/L

    0.00 to 20.00 ppm

    0-200%

    Resolution

    0.01

    Accuracy

    ±0.1mg/L

    ±0.1 ppm

    ±1%

    Response Time

    90% of the value in less than 60 seconds

    Frequency of recommended measure

    >5 s

    Water Move

    No necessary move

    Temperature CompensationNTC

    Stocking Temperature

    -10°C ~+60°C

    Signal Interface

    Modbus RS485 (standard) and SDI12 (option)

    Sensor Power Supply5~12V

    Dimensions

    Diameter: 25 mm; Length: 146 mm

    Weight

    Stainless steel version 450g (sensor + cable 3 m)

    Titanium version 300 g (sensor + cable 3 m)

    Material

    Stainless steel 316L, New : body in Titanium

    Maximum Pressure

    5 bars

    Protection Grade

    IP68

    Connection

    9 armoured connectors, polyurethane jacket, bare-wires or waterproof Fisher connector

    Electric Consumption


    Standby 25 μA

    Average RS485 (1 measure/ seconde) : 4.4 mA

    Average SDI12 (1 measure/ seconde) : 7.3 mA

    Current pulse: 100 mA

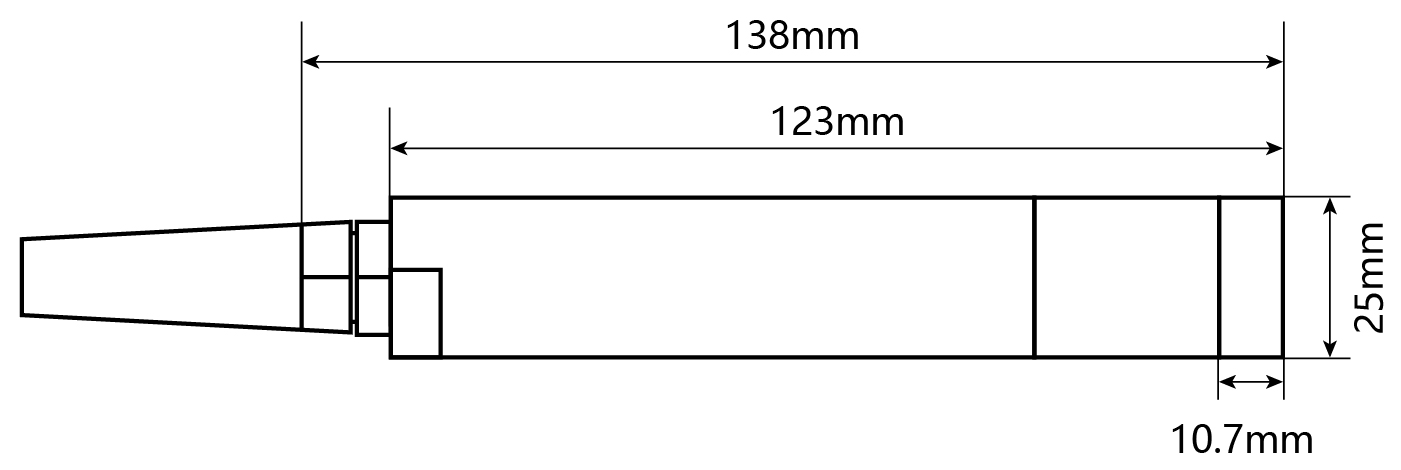

    Dimensions Of The optical dissolved oxygen Sensor



    Wiring Diagram Of The Inductive Conductivity Sensor
