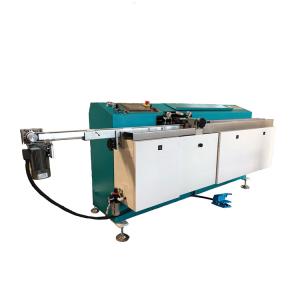

Automatic Butyl Extruder machine For flat glass processing machinery

Overview of Automatic PIB Extruder machine

Automatic PIB extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl. The operation of the butyl extruder is more easier than before,it uses large electrical control panel . The conveyor of aluminum is controlled by frequency converter. The speed can be adjusted from 0m/min to 47m/min. LJTB01 Butyl extruder machine is a special equipment for the production of making double glazing glass. As one of the important equipment of producing insulating glass, the effect of butyl glue is directly related to the sealing of insulating glass. The equipment is automatic one, easy to operate and convenient to use.

Main feature of Automatic PIB butyl Extruder machine

1. Automatic butyl extruder machine is operated by Touch screen , simple and practical

2. Butyle extruder adopt the hydraulic system imported from Germany is adopted to ensure even and full glue delivery

3. PIB extruder machine rubber cylinder adopts pull-up structure, which is convenient for operation

4. Unique design structure, with automatic exhaust function, to ensure continuous glue application

5. Non adhesive synchronous belt is used, and talcum powder is not needed for cleaning

6. Automatically adjust the glue output according to the speed change

7. It is convenient to adjust the height of the crossbeam and solve the problem of exposed white effectively and conveniently

8. Glue application speed can reach 47m / min

9. The main accessories of Automatic extruder machine are German brands. PLC program control, stable performance

10. It is convenient and practical to use movable vertical and horizontal sealant

11. Automatically adjust the width of glue head, and the integrated control of quick opening valve ensures the consistency of double-sided gluing

12. It can save the glue consumption compared with the ordinary butyl rubber machine, and the gluing can reach 7g / m

Tech parameters of Automatic Butyl Extruder Machine for Double Glazing

Equipment details of Automatic Butyl Extruder Machine for Insulating Glass

Germany Siemens parts

PIB extruder machine Adopt Siemens brand, stable performance.

KINCO Touch Screen

Clear interface, Simple operation, Smart touch screen,Updated programming.

Alarm system

Automatically alarm system, reminding adding butyl.

Germany HAVE Valve

Adopt Germany’s Harvey valve, more stable performance.

Germany Maximator Cylinder

The supercharging system adopts famous pneumatic and hydraulic cylinder, control the pressure of outlet oil strongly.

Glue cylinder

Butyl extruder Adopt the upright structure, easy to change butyl.

Details of Automatic Butyl Extruder machine

Optional functions of butyl coating machine:

200L glue cylinder is optional

Related Products

1.Automatic Aluminum Spacer Bending Machine LJZW2020

Main feature

• Adopt Siemens PLC control system, touch screen interface

• Siemens servo control system

• Four spacer size storage units

• Automatically cut and feed aluminum spacers

• Auxiliary function of adjustment for bending large aluminum frame

• Aluminum spacers are available in different sizes and sizes

• Bend shaped spacer frames continuously

• Separated guard board outside of bender

• Automatically avoid the connection while bending and cutting

• Pause and Reset device for handling equipment failures

• USB input function, read the excel format file directly etc (Optional)

• Spacer printing code function (Optional)

• Printing label sticker function (Optional)

• Can bend aluminum spacer and stainless steel ( Optional)

• Automatic drill gas filling hole (Optional)

• Connect to ERP system (Optional)

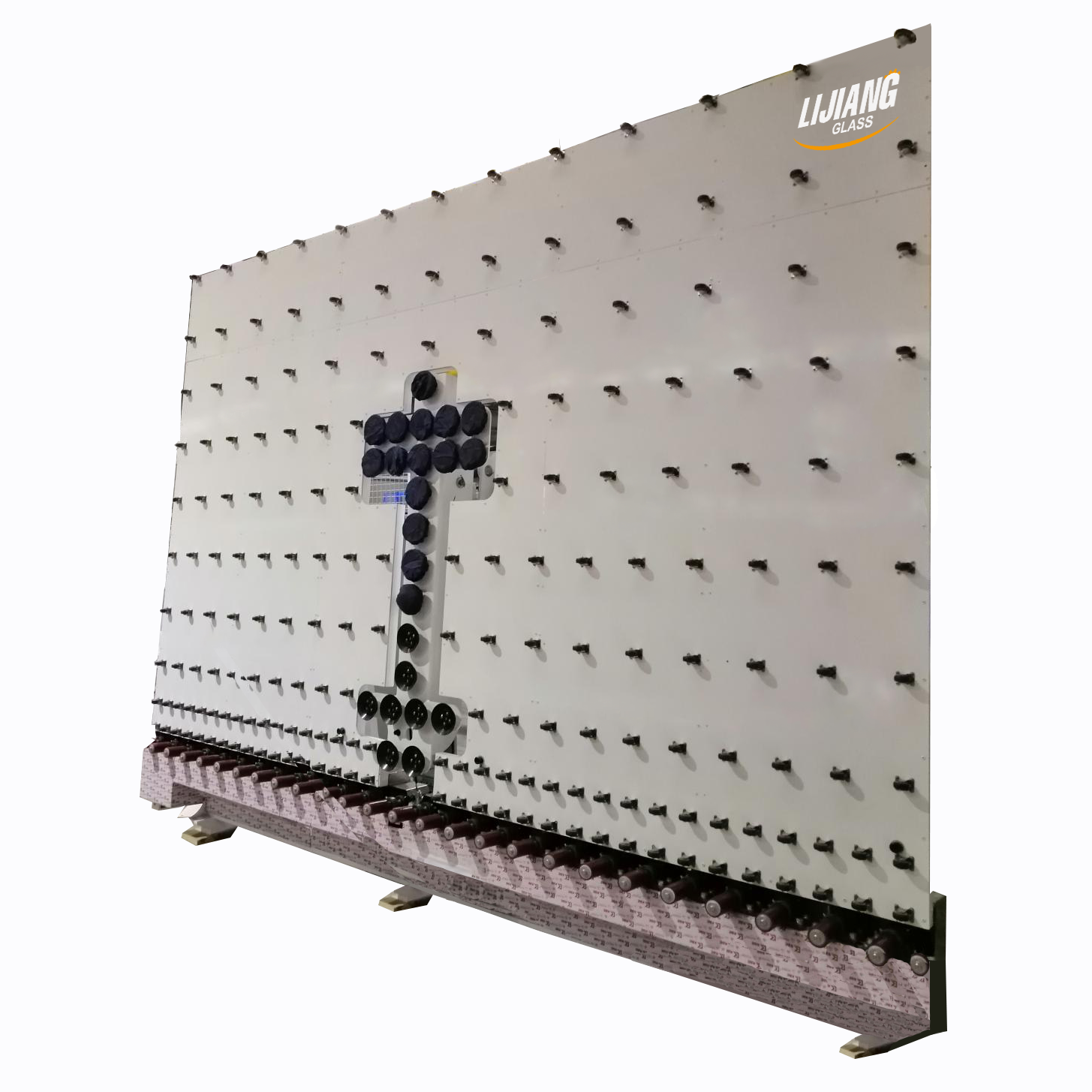

Vertical Loading Table LJASP3525

I.Mainly technical parameter:

1.Loading max glass size: L X W = 3500 x 2600 mm

Loading min. glass size: L X W = 800 x 600 mm

Glass thickness: (3-10mm)

2.Dimension of loading table approx.:　

L X W X H= 3700mm x 2800mm x 2500mm+ bottom support 530mm(±30mm)

3.The vertical loading table uses Servo motor as drive system and all motors with infinitely variable speeds, the transfer speed of this table is 2-35m/min;Loading cycle time: 35S

4.Adopts full-closed loop control system for accurate positioning for the machine and stable running system;Configuration description

5.The tilting arm horizontal movement controlled by Servo motor and precise gear box, gear rack drive;

6.Lifting structure: Servo motor and precise gear box control and synchronous belt drive;

7.The suction cups frame tilting structure: Servo motor and precise gear box control and crank connecting rod drive;

8.Bottom transfer structure, Servo motor and precise gear box control and chain drive.

9.4 axis all-digital control with precise positioning and speedy flexibility; All speed can be

adjustable according to production line speed.

10.Super HMI monitor the equipment running status and system parameters; It can set data according to different glass rack height and angle and also pre-setting or recording the current shift of production.

11.Vacuum pump system: highly effective mono-block rotary blade type vacuum pump;

Suction cups: Uses imported PF suction cups ￠120MM type

12. 5—7bar,30L/min;Compressed air supply: 5—7bar, 30L / min;

13.Power supply: 380V, 50HZ, 3 phases, installed capacity: 10KW
