    IEC 60335-2-21 2.5Mpa Hydrostatic Pressure Test System Computer Operation

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN1125-2.5MPA
    Certification : Calibration Certificate (Cost Additional)
    Price : Customized
    Payment Terms : L/C, , T/T, Western Union, MoneyGram
    Supply Ability : 1 set per month
    Delivery Time : 60 Days
    • Product Details
    • Company Profile

    IEC 60335-2-21 2.5Mpa Hydrostatic Pressure Test System Computer Operation


    IEC 60335-2-21 2.5Mpa Hydrostatic Pressure Test System for Water Heaters


    Product overview:

    This hydraulic pressure test apparatus is required by IEC 60335-2-5 cl.22.101,IEC 60335-2-7 cl.22.101 , IEC 60335-2-21/35 22.47 & 22.103 , IEC 60335-2-24 cl.22.7, etc.

    It is used for various pressure-bearing products such as valves, water heaters, treated fabrics, etc. to carry out water pressure resistance, static pressure, blasting performance test and water sealing performance test.


    System Features:

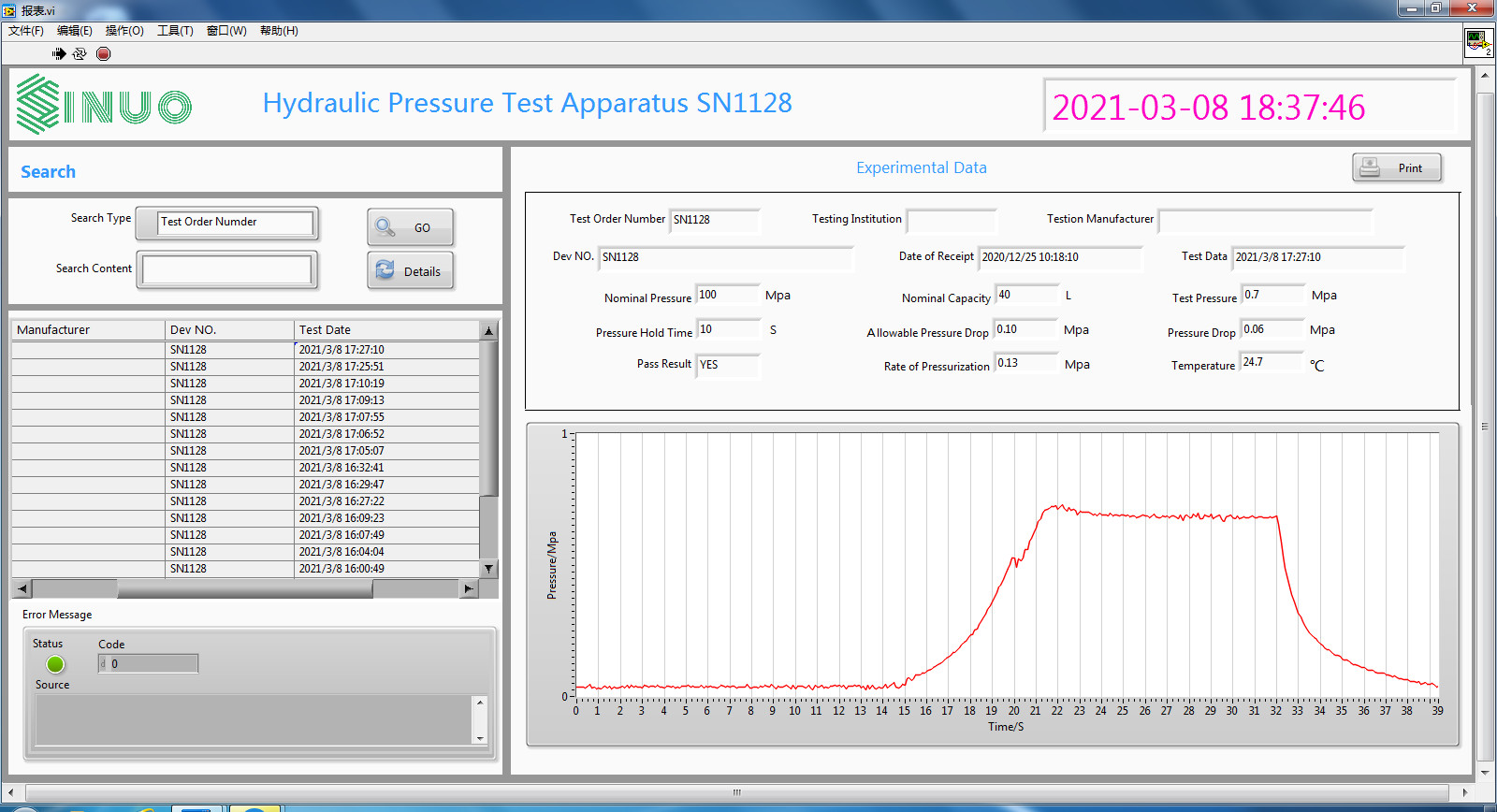

    The test system adopts touch computer control, can print data and display pressure curve , can set test pressure, constant pressure time, pressure rise rate, etc.; adopts pneumatic water pressure booster pump and its pressure control device with stable performance, which is convenient for operation.


    Technical Parameters:

    No.:ContentsParameters
    1Power supplySingle phase AC 220V or 120V, 50-60Hz
    3Operation interfaceTouch type computer
    4Pressurized modeAir pressure
    5Test pressure0.5-2.5MPa
    6Hydraulic pressure control accuracy±0.05MPa
    7Boost rateCan be controlled to be 0.13MPa/s
    8Water temperature10-60℃ controllable (accuracy ±1℃)
    9Constant temperature water tank volume≥10L
    10Pressure apply or hold time0-999999s can be set
    11Use environment

    Atmospheric pressure 80~106kpa; ambient temperature 5~40°C; relative humidity (20~80)%RH;

    Use place: no rotation, no vibration, no electromagnetic interference, no dust, no explosive and no corrosive gas, with good heat dissipation
